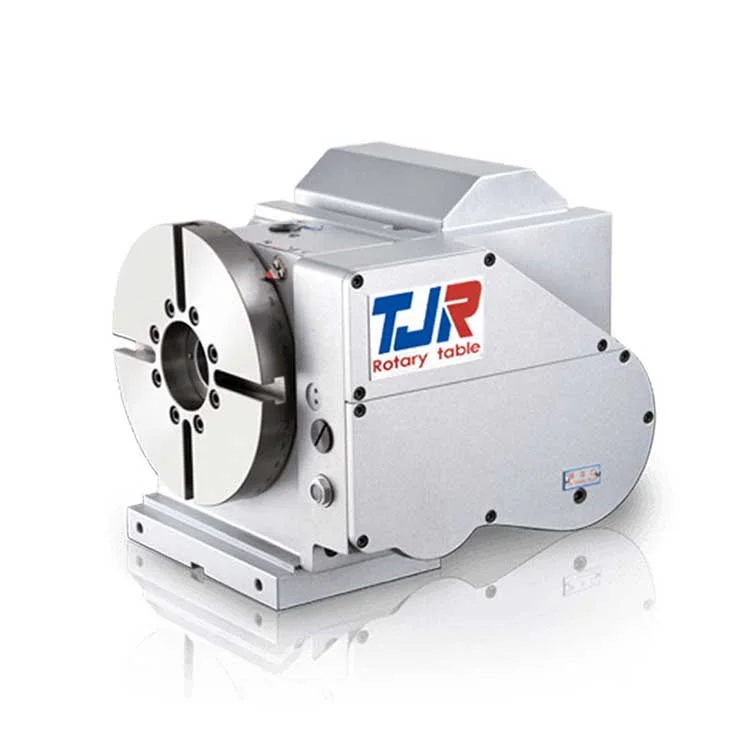

AR SERIES PNEUMATIC BRAKE 4TH AXIS CNC ROTARY TABLE (BACK SIDE MOTOR)
The worm shaft is made of case-hardened steel.
TJR 4th Axis Rotary Tables
Whether or not your machining center is pre-configured with the necessary interfaces, TJR’s 4th axis CNC rotary tables can be seamlessly integrated into your setup. Supplied as a complete package—including all required accessories and servo kits—they enable single-axis simultaneous or indexed machining, enhancing both productivity and machining precision.
PRODUCT FEATURE
TJR is a recognized leader in the development and manufacturing of 4th axis rotary tables and automatic pallet changers (APC). With extensive industry experience and proven engineering capabilities, TJR delivers rotary solutions that offer exceptional rigidity, high positioning accuracy, and superior operational efficiency.
Our products are trusted across a wide range of industries, including aerospace, automotive, precision mold manufacturing, and medical device production.

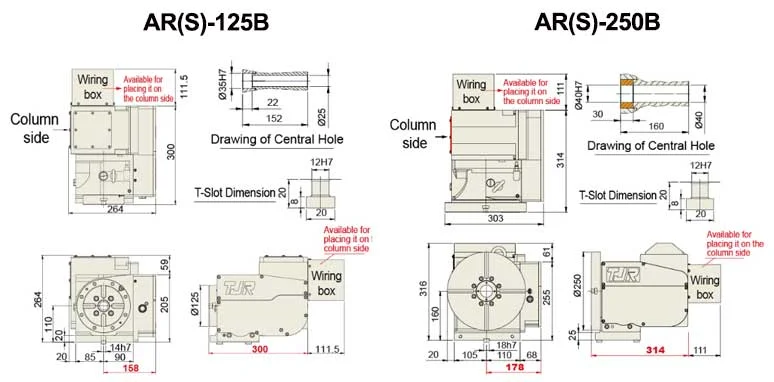

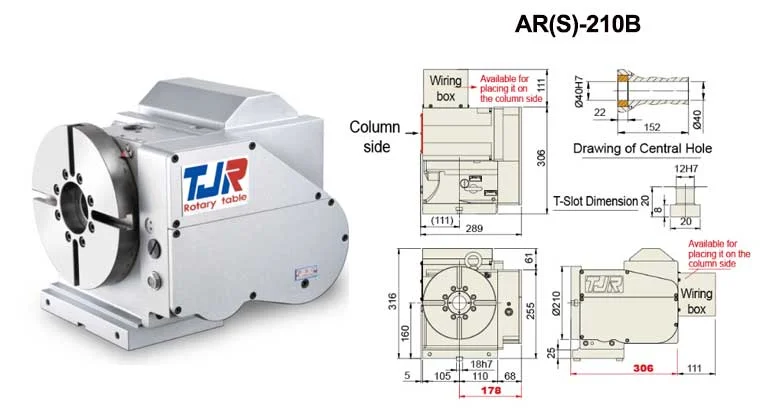

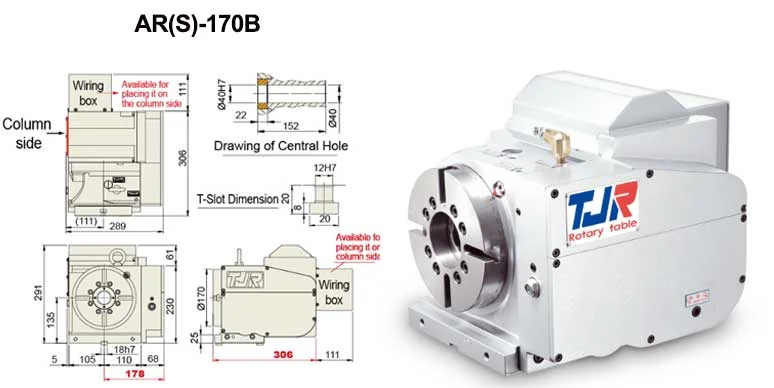

PRODUCT DIMENSION
PRODUCT PARAMETERS
| Application | Vertical |
| Installation Mode | Add-on |
| Table diameter (mm) | Ø125 |
| Inner diameter of mandrel sleeve (mm) | Ø35H7 |
| Diameter of center through hole (mm) | Ø25 x 152deep |
| Center height (Vertical) (mm) | 110 |
| Table T-slot width (mm) | 12H7 |
| Guide block width (mm) | 14h7 |
| Transmission Mechanisms | Worm & Worm gear |
| Min. Increment (deg.) | 0.001 |
| Indexing precision (sec.) | 40 |
| Repetrability (sec.) | 6 |
| Clamping system (MPa / kg/cm²) | Pneumatic (0.6 / 6) |
| Clamping torque (N.m / kgf·m) | 128 / 13 |
| Servo motor model (FANUC)(Straight shaft without key) | αiS4 / βis4 |
| Servo motor model (MITSUBISHI) | HG - 75 / 105 |
| Speed reduction ratio | 1 / 60 |
Three Advanced Drive Mechanisms to Meet Varied Application Needs
To address different performance requirements—ranging from torque, speed, to precision—TJR offers three types of drive systems:
Worm and Worm Gear Drive – A cost-effective and reliable solution suitable for standard machining operations.
Roller Gear Cam Drive – Delivers high indexing accuracy and fast response, ideal for high-cycle applications.
Direct Drive Motor – Offers zero backlash, high torque, and rapid acceleration, perfect for high-precision, high-speed machining.
Easy Integration, Instant Productivity Gains
Whether you are establishing a new production line or upgrading an existing machine, TJR offers fully compatible integration solutions and expert technical support. Our rotary tables are designed for easy installation and are compatible with all major CNC control systems, ensuring minimal downtime and maximum productivity.
Looking for a reliable partner in 4th axis /5th axis rotary table and accessories? Wuxi fagor is your trusted choice.
Feel free to contact us at any time for detailed technical support and customized quotation services.
Contact Us
Tel: (86 510) 68088084
Whatsapp: +86-15852791610
Mailbox: info@wxfagor.com
