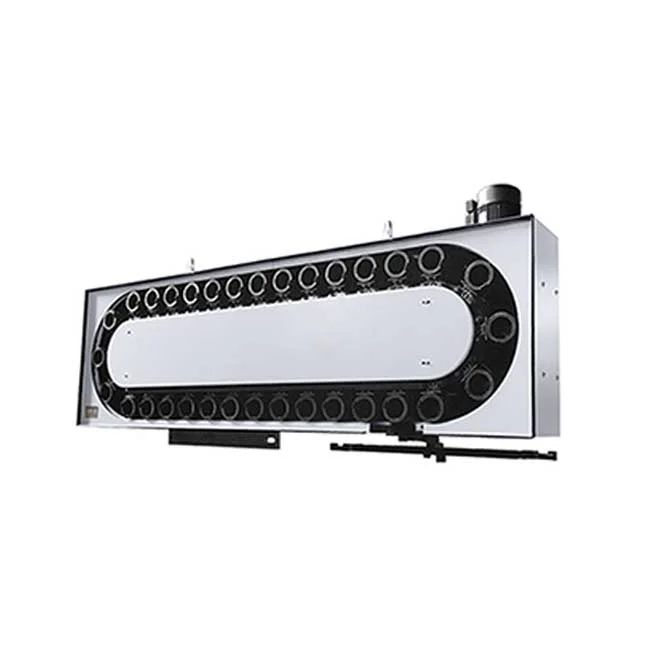

CHAIN TYPE VERTICAL MAGAZINE

CHAIN TYPE VERTICAL MAGAZINE

share
twitterskypewechatfacebooklinkedin
Chain type vertical magazine is a high-capacity, efficient automatic tool storage and changing system designed for CNC machining centers. It adopts a vertical chain structure for compact installation, stable operation, and fast tool change performance — ideal for high-speed, multi-tool CNC machines.
Minimum:1
Product details

Product Features

1. Cylindncal cam indexing mechanism features high, indexing accuracy and minimum trouble, Long service life, the structure is simple, easy maintenance;

2. The whole importing engineering plastic knife set, light weight, high strength, is not easy to damage;

3. Double bearing separate knife arm, maze &sealed ring, the noise is small;

4. Electronic switch all series uses the import original, quality assurance.

Product Specification

Tool shank specBT40/CAT40/DIN40/HSK63BT50/CAT50/DIN50/HSK100
Tool capacity32T/40T/60T32T/40T/60T/80T
Tool change time1.8sec/60Hz(based on tool arm length)2.45sec/60Hz (based on tool arm length)
Max. tool weight8KG18KG
Max. tool dia.(fully loaded)ø75mmø125mm
Max. tool dia.(no adjacent)ø150mmø250mm
Max. tool length300mm400mm
Type magazine voltage220V/380V,50Hz/60Hz220V/380V,50Hz/60Hz
Type magazine air pressure0.5-0.7MPa0.5-0.7MPa
