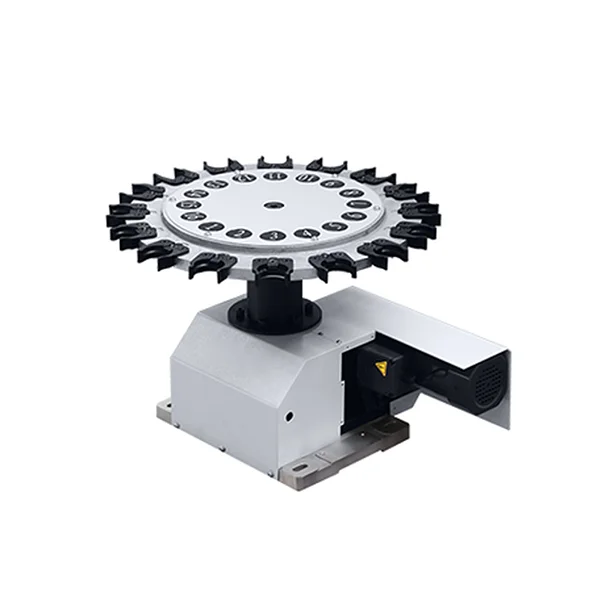

UMBRELLA CHAIN TYPE MAGAZINE

Designed for versatility and precision, the umbrella chain type tool magazine is perfectly suited for vertical and gantry CNC machining centers, high-speed multi-axis machines, and complex production lines. It is an ideal choice for automotive, aerospace, mold manufacturing, and precision metal processing industries seeking stable and efficient tool-changing performance.

Minimum：1

info@wxfagor.com

Message

UNIVERSAL CNC TOOL HOLDERS

CHAIN TYPE VERTICAL MAGAZINE

Product details

Product Features

1. Plastic steel knife claw, high rigidity,long service life;

2. Use the division precision cutting tools do space, speed and precision;

3. Simple structure, easy to assemble,easy maintenance;

4. Electronic switch all series uses the import original, quality assurance.

Product Specification

Tool shank spec	BT30/CAT30/DIN30/HSK40	BT40/CAT40/DIN40/HSK63	BT50/CAT50/DIN50/HSK100
Tool capacity	10T/12T/16T/20T	10T/16T/20T/24T	16T/20T/24T
Tool change time	6sec/60Hz	7sec/60Hz	9sec/60Hz
Max. tool weight	5KG	8KG	20KG
Max. tool dia.(fully loaded)	ø80mm	ø90mm	ø125mm
Max. tool dia.(no adjacent)	ø120mm	ø160mm	ø250mm
Max. tool length	20-200mm	150-250mm	150-350mm
Type magazine voltage	220V/380V,50Hz/60Hz	220V/380V,50Hz/60Hz	220V/380V,50Hz/60Hz
Type magazine air pressure	0.5-0.7MPa	0.5-0.7MPa	0.5-0.7MPa

Wuxi Fagor technology Co., Ltd. is a professional supplier which is specialized in production, testing and sales of high quality and high precision CNC machines, including CNC gantry milling machine, CNC milling machine, CNC lathe, machine tool accessories, etc.,
