CNC BUILT-IN MOTOR SPINDLES

CNC BUILT-IN MOTOR SPINDLES

share
twitterskypewechatfacebooklinkedin
The built in spindle is typically mounted on a grinder, which is usually powered by electricity and is used to perform various grinding operations. The built in spindle supports the grinding process, which is the process of removing material from the workpiece using an abrasive material. It is used to produce a smooth surface finish on the workpiece. The built in spindle is essential for grinding operations as it is responsible for the rotation and control of the grinding wheel.
Minimum:1
Unit:Sets
Product details

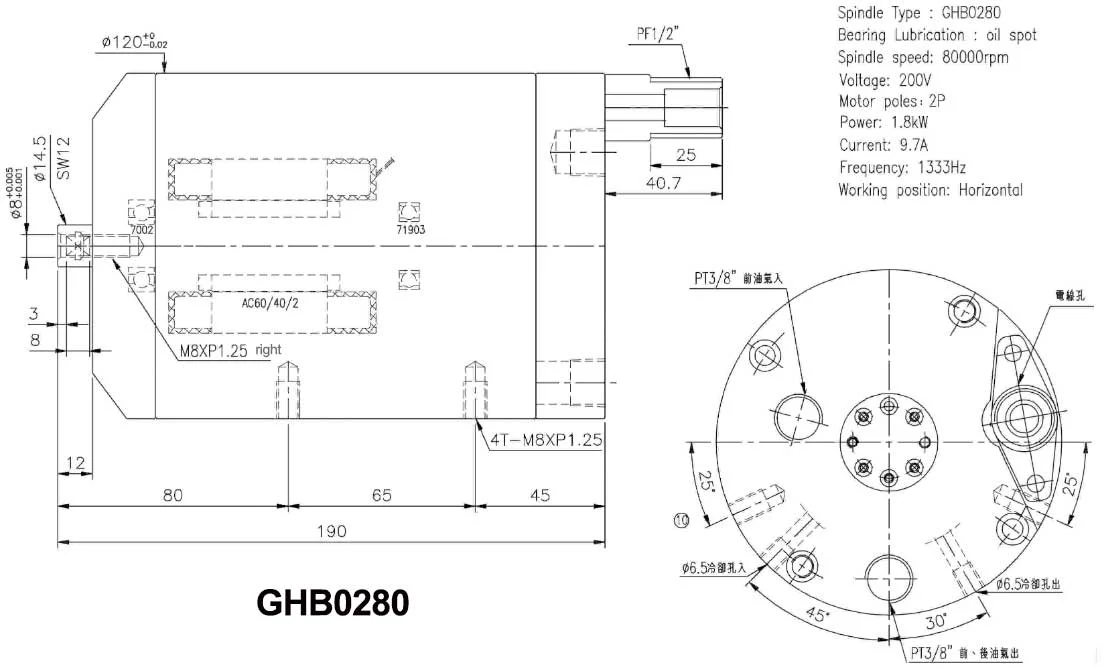

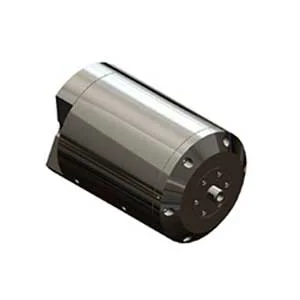

GHB0280

Outer Diameter:120 mmGHB0280 Built - in Motor Spindles

Max. Speed:80,000 rpm

Bearing Lubrication:Oil Air

Bearing size:Ø15

Power:1.8 kW

Voltage:200 V

Working position:Horizontal

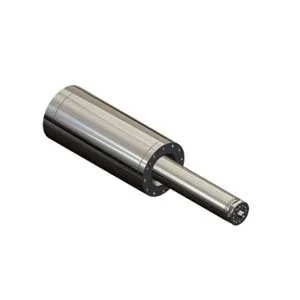

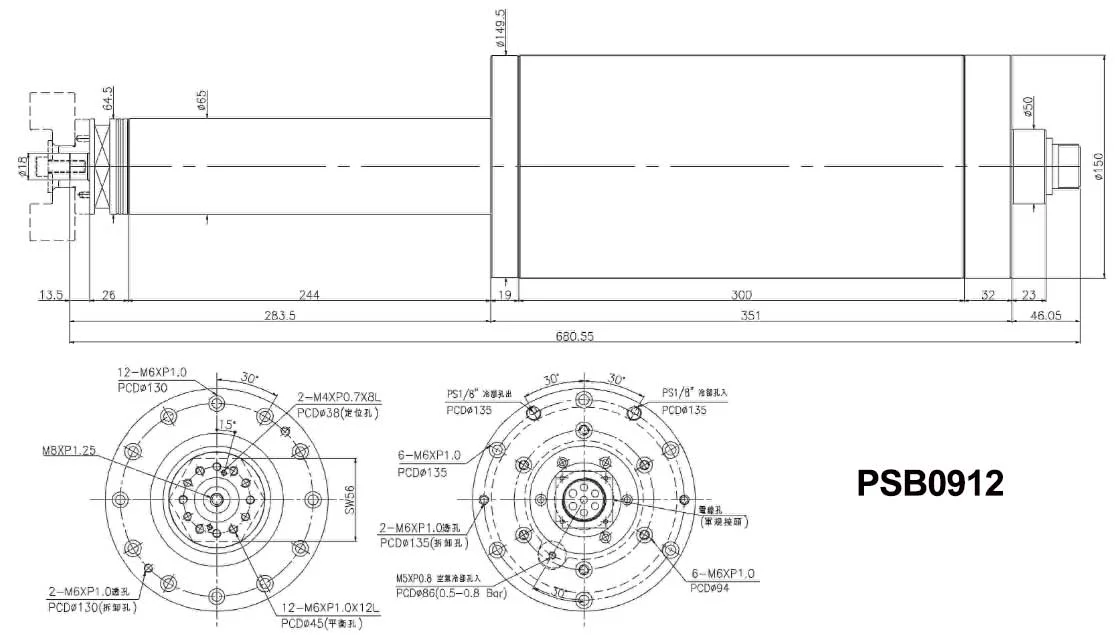

PSB0912 Built - in Motor SpindlesPSB0912

Outer Diameter:150 mm

Max. Speed:12,000 rpm

Bearing Lubrication:Grease

Bearing size:Ø30 Ø45

Power:8 kW

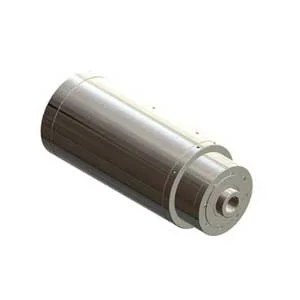

HP0830A Built - in Motor SpindlesHP0830A

Outer Diameter:120 mm

Max. Speed:30,000 rpm

Bearing Lubrication:Oil Air

Bearing size:Ø15 Ø40

Balance level:G1

Working position:Horizontal

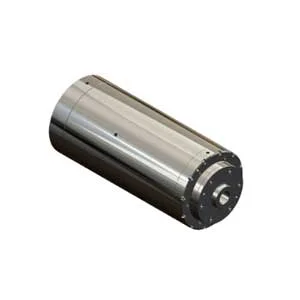

PSB1112PSB1112 Built - in Motor Spindles

Outer Diameter:170 mm

Max. Speed:12,000 rpm

Bearing Lubrication:Oil Air

Bearing size:Ø45 Ø55

Power:20 kW

Voltage:380 V

Working position:Horizontal

PRODUCT MODEL

GHB0280 Built - in Motor Spindles DimensionPSB0912 Built - in Motor Spindles Dimension
