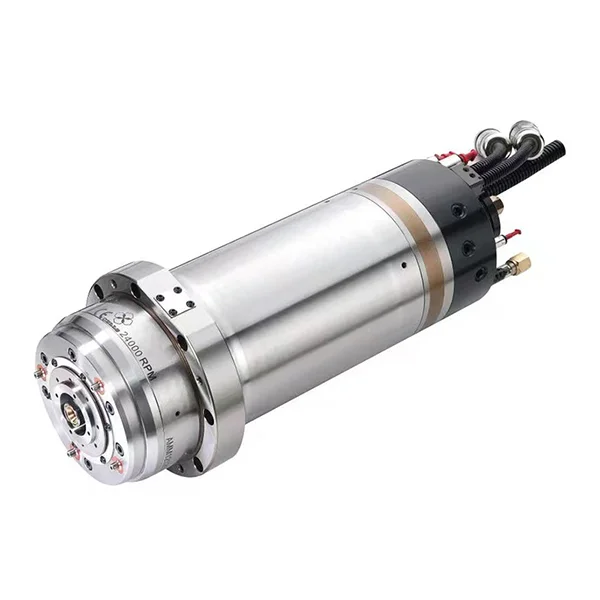

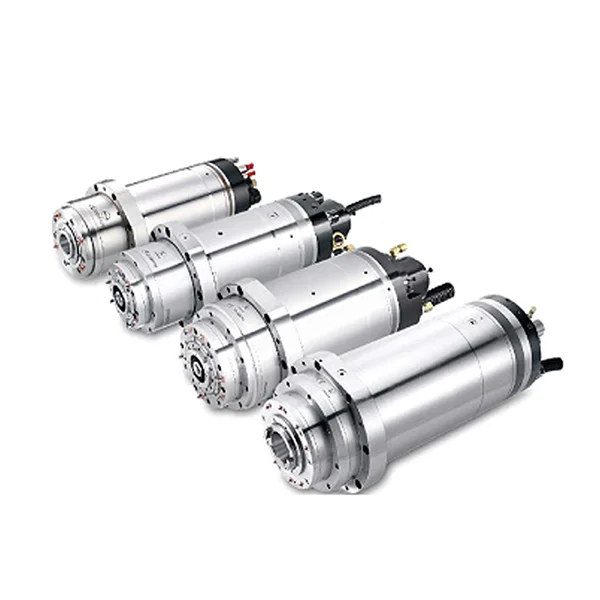

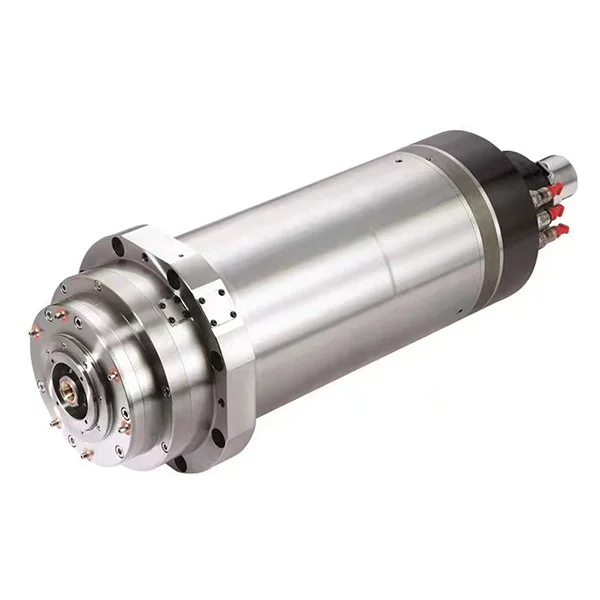

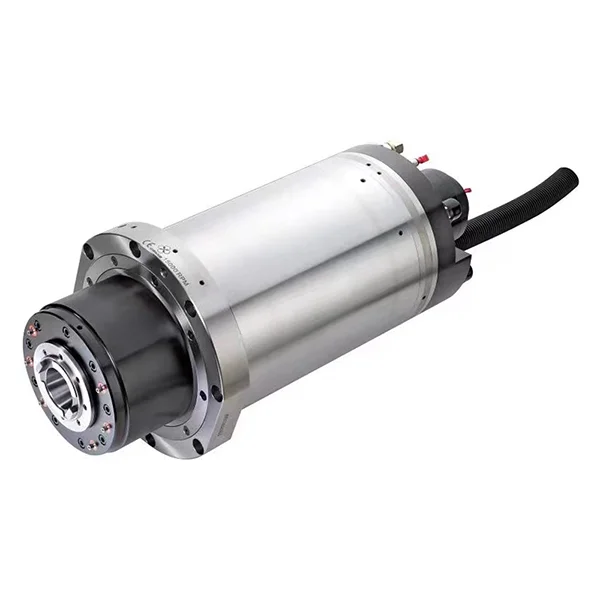

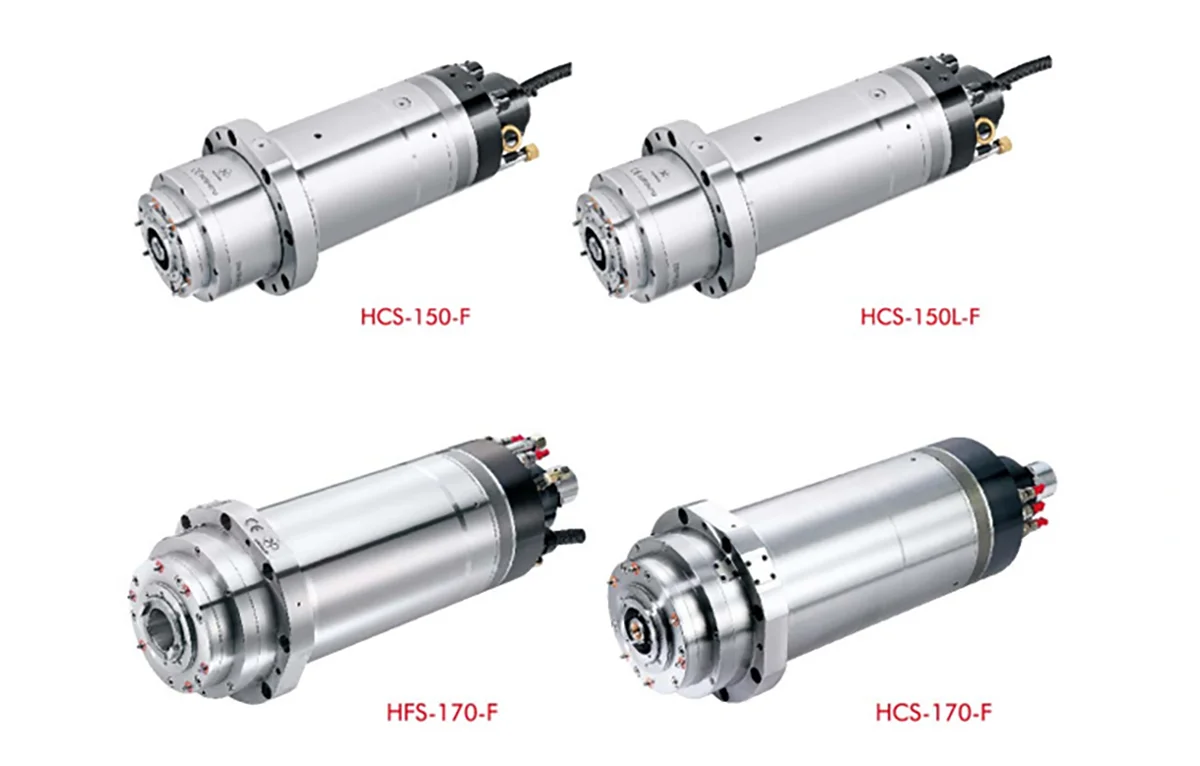

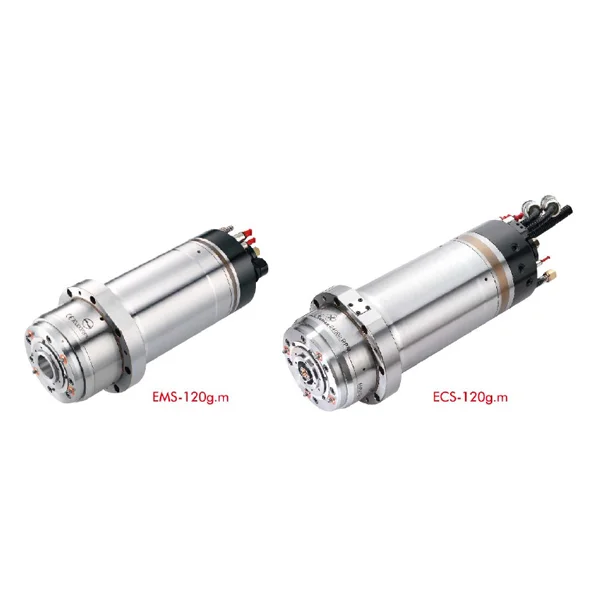

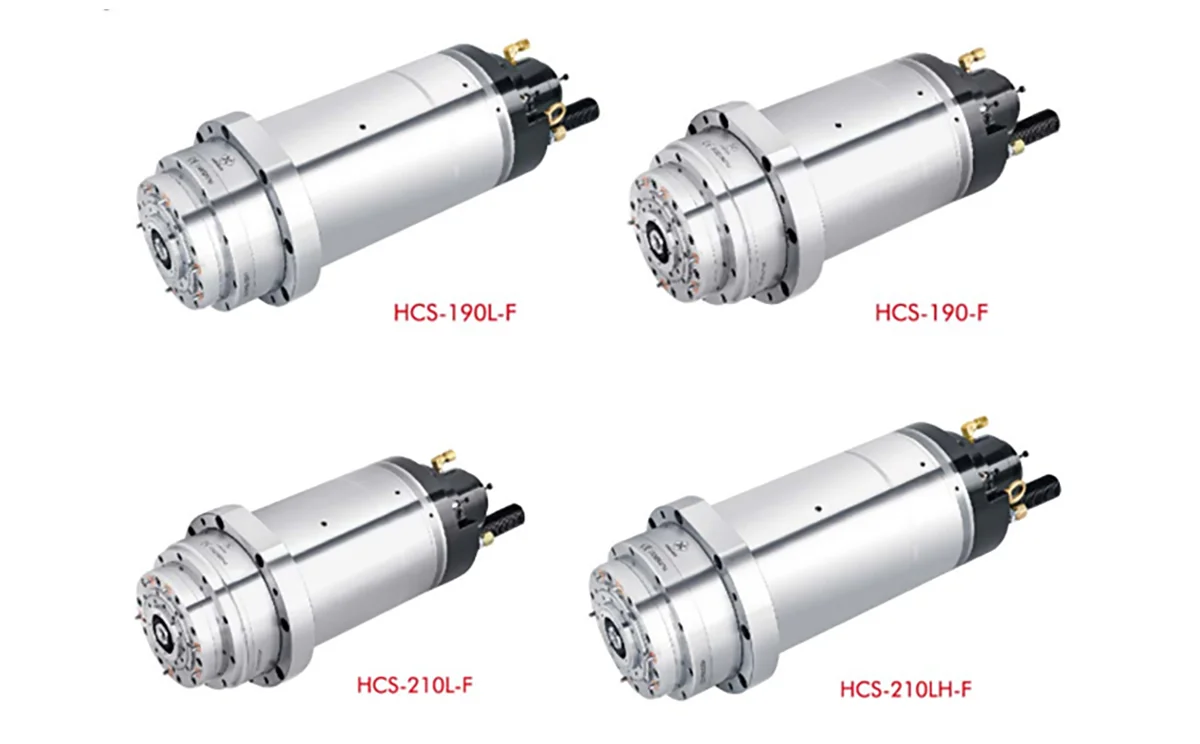

DIRECT DRIVE SERVO MOTOR SPINDLE
1. High speed, high torque: speed up to 12000r/min, improve the grinding precision and line speed technical requirements;
2. High life: the built-in German SKF or FAG ceramic bearings, reduce the heat of the spindle, reduce resistance, improve the service life of the spindle and ensure the accuracy of use.
3. Easy to use, it can seamlessly connect with different manufacturers of systems and drive control.
4. More intimate ring spray workpiece cooling design, so that the workpiece to achieve 360° cooling effect, thereby improving the machining accuracy and tool life, to provide processing efficiency.
5. The original assembly process improves the precision and quality of the spindle.
2. High life: the built-in German SKF or FAG ceramic bearings, reduce the heat of the spindle, reduce resistance, improve the service life of the spindle and ensure the accuracy of use.
3. Easy to use, it can seamlessly connect with different manufacturers of systems and drive control.
4. More intimate ring spray workpiece cooling design, so that the workpiece to achieve 360° cooling effect, thereby improving the machining accuracy and tool life, to provide processing efficiency.
5. The original assembly process improves the precision and quality of the spindle.
Product details

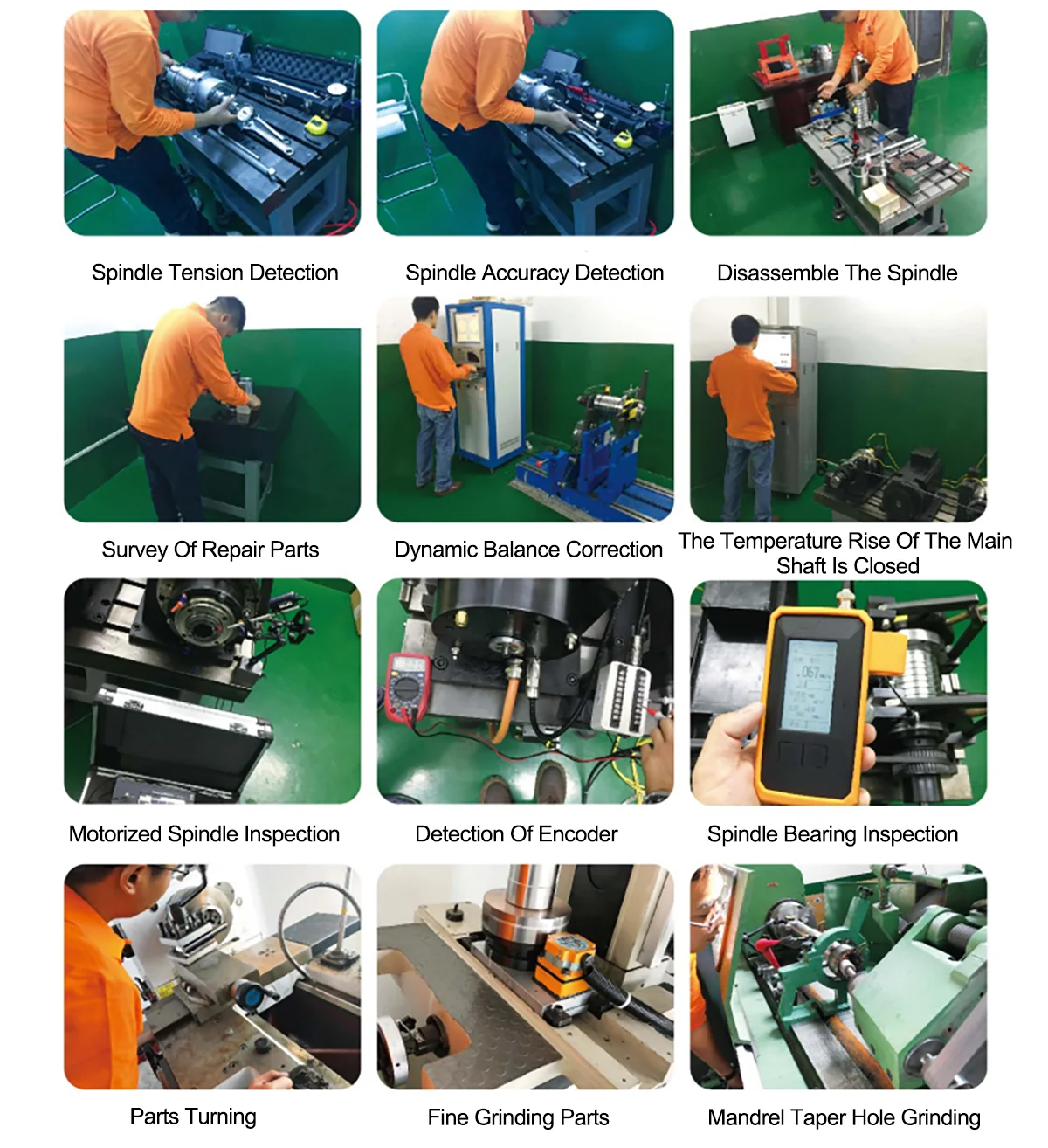

PRODUCT DESCRIPTION

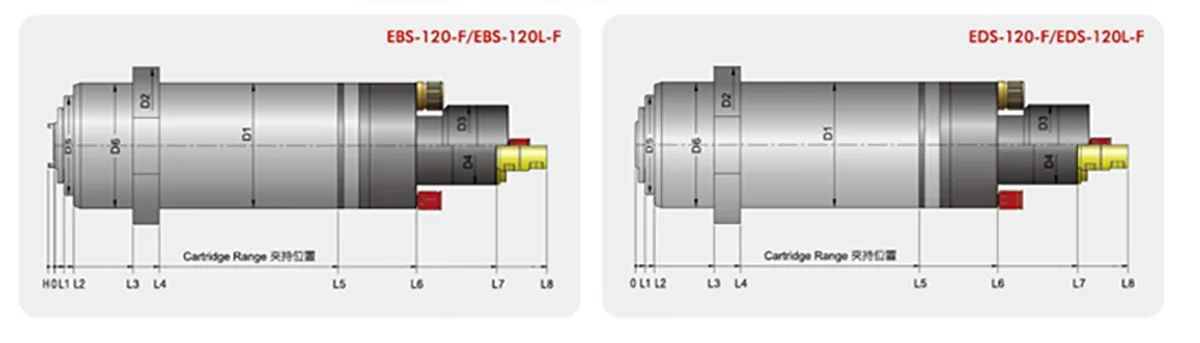

PRODUCT PARAMETER
| Spindle Type | H | L1 | L2 | L3 | Cartridge Range | L6 | L7 | L8 | D1 | D2 | D3 | D4 | D5 | D6 | ||
| L4 | L5 | Cylinder | CTS | |||||||||||||
| EBS-120-F | -6 | 9 | 18 | 75 | 100 | 271 | 346 | 422.5 | 433.5 | 470.5 | Φ120 | Φ150 | Φ77 | Φ75 | Φ95 | Φ120 |
| EBS-120L-F | -6 | 9 | 18 | 75 | 100 | 271 | 341 | 417.5 | 456.5 | 477.5 | Φ120 | Φ150 | Φ77 | Φ75 | Φ105 | Φ120 |
| EDS-120-F | — | 9 | 18 | 75 | 100 | 271 | 346 | 422.5 | 433.5 | 470.5 | Φ120 | Φ150 | Φ77 | Φ75 | Φ95 | Φ120 |
| EDS-120L-F | — | 9 | 18 | 75 | 100 | 271 | 341 | 417.5 | 456.5 | 477.5 | Φ120 | Φ150 | Φ77 | Φ75 | Φ105 | Φ120 |
EBS/EDS SERIES
| Type | 120 (HSK-A40/E40)-F | ||
| Specifications | EDS-120g-F | EDS-120m-F | |
| Model | Total length (mm) | 433.5/470.5(CTS) | |
| Approx weight (kg) | 25.9 | ||
| Flange mounting | Yes | ||
| Operation position | V/H | ||
| Lubrication | Grease | Yes | - |
| Oil/air lubrication | - | Yes | |
| Oil injection lubrication | - | - | |
| Spindle model | 30,000 | 30,000 | |
| Motor | Number of pole (pole) | 4 | |
| Voltage (V) | 200 / 400 | ||
| Max current (A) | 43 / - | - / - | |
| Max frequency (Hz) | 1,000 | 1,000 | |
| Rotation direction | CW /CCW | ||
| Duty | Power S1 100% / S3 25%(P) kw | 5.5/9 | - / - |
| Torque S1 100%/S3 25%(T) N.m | 4.38/5.93 | - / - | |
| Basal speed （200V/400V）1/min | 12,000 /12,000 | ||
| Clamping System | Front bearing size (mm) | ø45 | |
| Taper size | A40 / E40 | ||
| Drive keys | S / - | ||
| Tool dimensions | ø20 | ||
| Static clamping force(static) N | 6,800 | ||
| Tool release pressure Bar | 60~80 | ||
| Equipment | Taper blow out (cleaning) Bar | 6 | |
| Shaft positioning (vector control) | 128 | ||
| Front seal （Bar） | 4 | ||
| Cooling system (200V/400V) kw | 1.5 / 1.5 | ||
| Tool detection | S | ||
| Options | External coolant | S | |
| CTS | op | ||
| Bearing temperature | op | ||
| Accelerate gauge | op | ||
| Type | 120 (SK-30)-F | ||
| Specifications | EBS-120g-F | EBS-120m-F | |
| Model | Total length (mm) | 433.5 / 470.5(CTS) | |
| Approx weight (kg) | 25.9 | ||
| Flange mounting | Yes | ||
| Operation position | V / H | ||
| Lubrication | Grease | Yes | - |
| Oil/air lubrication | - | Yes | |
| Oil injection lubrication | - | - | |
| Spindle model | 30,000 | 30,000 | |
| Motor | Number of pole (pole) | 4 | |
| Voltage (V) | 200 / 400 | ||
| Max current (A) | 43 / - | - / - | |
| Max frequency (Hz) | 1,000 | 1,000 | |
| Rotation direction | CW /CCW | ||
| Duty | Power S1 100% / S3 25%(P) kw | 5.5/9 | - / - |
| Torque S1 100%/S3 25%(T) N.m | 4.38/5.93 | - / - | |
| Basal speed （200V/400V）1/min | 12,000 / - | ||
| Clamping System | Front bearing size (mm) | ø45 | |
| Taper size | ISO-30 | ||
| Drive keys | S | ||
| Tool dimensions | ø20 | ||
| Static clamping force(static) N | 2,800 | ||
| Tool release pressure Bar | 60~80 | ||
| Equipment | Taper blow out (cleaning) Bar | 6 | |
| Shaft positioning (vector control) | 128 | ||
| Front seal （Bar） | 4 | ||
| Cooling system (200V/400V) kw | 1.5 / 1.5 | ||
| Tool detection | S | ||
| Options | External coolant | S | |
| CTS | op | ||
| Bearing temperature | op | ||
| Accelerate gauge | op | ||
