VMC1580 VERTICAL MACHINING CENTER

Product Information

The VMC1580 series Vertical Machining Centers, including models TB-LV1580 and TB-LV1580A, are robust, high-precision machines designed to meet the manufacturing needs of various industries such as aerospace, automotive, and mold making. These machines combine strength, precision, and versatility, offering an advanced solution for complex and large-scale machining tasks.

Common Feature:

• Worktable Dimensions: Both models boast a substantial worktable size of 800mm by 1600mm, providing ample space for large workpieces or multiple setups to enhance productivity and flexibility.

• Axis Travel: They offer a generous travel range with 1500mm on the X-axis, 800mm on the Y-axis, and 700mm on the Z-axis, enabling the machining of large parts with ease.

• Spindle Nose to Worktable Range: The TB-LV1580 and TB-LV1580A models feature adjustable spindle nose to worktable distances, ensuring a broad range of workpiece sizes can be accommodated.

• Worktable T-Slots: The worktable is configured with 7 T-slots, each being 22mm in width and spaced 110mm apart, providing versatile and secure workpiece setup and clamping options.

• X.Y.Z Axis Ball Screw Specification: For precise movement and high mechanical efficiency, both models are equipped with 5010 ball screws for all three axes, ensuring smooth and accurate operations.

• Casting material is AT300, good stability, high strength, stable and reliable precision.

• This machine adopts spindle imported from Taiwan professional manufacturers, constant temperature assembly, through high-speed dynamic balance correction and running-in test, long service life, high reliability.

• Three types of spindle tapper is optional. Direct spindle and belt can be selected.

• Improve tool life and workpiece surface accuracy.

• Appearance and color of machine covers can be designed according to customer requirements.

Model-Specific Features:

• TB-LV1580:

1.Spindle Specifications: This model offers flexibility in spindle selection, coming with a standard BT40/Φ150 spindle, and capable of achieving 8000 RPM with belt drive or an optional 12000 RPM with direct drive.

2.Distance from Spindle Center to Column: It features a distance of 855mm, facilitating easy access to the workpiece with ample clearance.

• TB-LV1580A:

1.Spindle Specifications: The TB-LV1580A is equipped as standard with a more powerful BT50/Φ155 spindle, with options for a BT50/Φ190 diameter, at lower speeds of 6000 RPM, ideal for heavy-duty machining tasks.

2.Distance from Spindle Center to Column: This model has a slightly larger distance of 862mm, offering additional space for handling larger parts.

Unique Aspects:

• The TB-LV1580A’s enhanced spindle option (BT50/Φ190) and the incremented distance from the spindle center to the column underline its capability in handling tougher and larger scale machining tasks, compared to the TB-LV1580.

• Both machines are designed with rapid speed and precision in mind, supporting advanced manufacturing processes that require both dimensional accuracy and surface finish quality.

Product Parameter

The VMC1580 series showcases a commitment to excellence and innovation in CNC machine design, offering a powerful and precise solution to meet the most demanding machining requirements. Whether for high-speed applications or heavy-duty machining, the TB-LV1580 and TB-LV1580A models provide the features and specifications necessary to achieve outstanding performance and results.

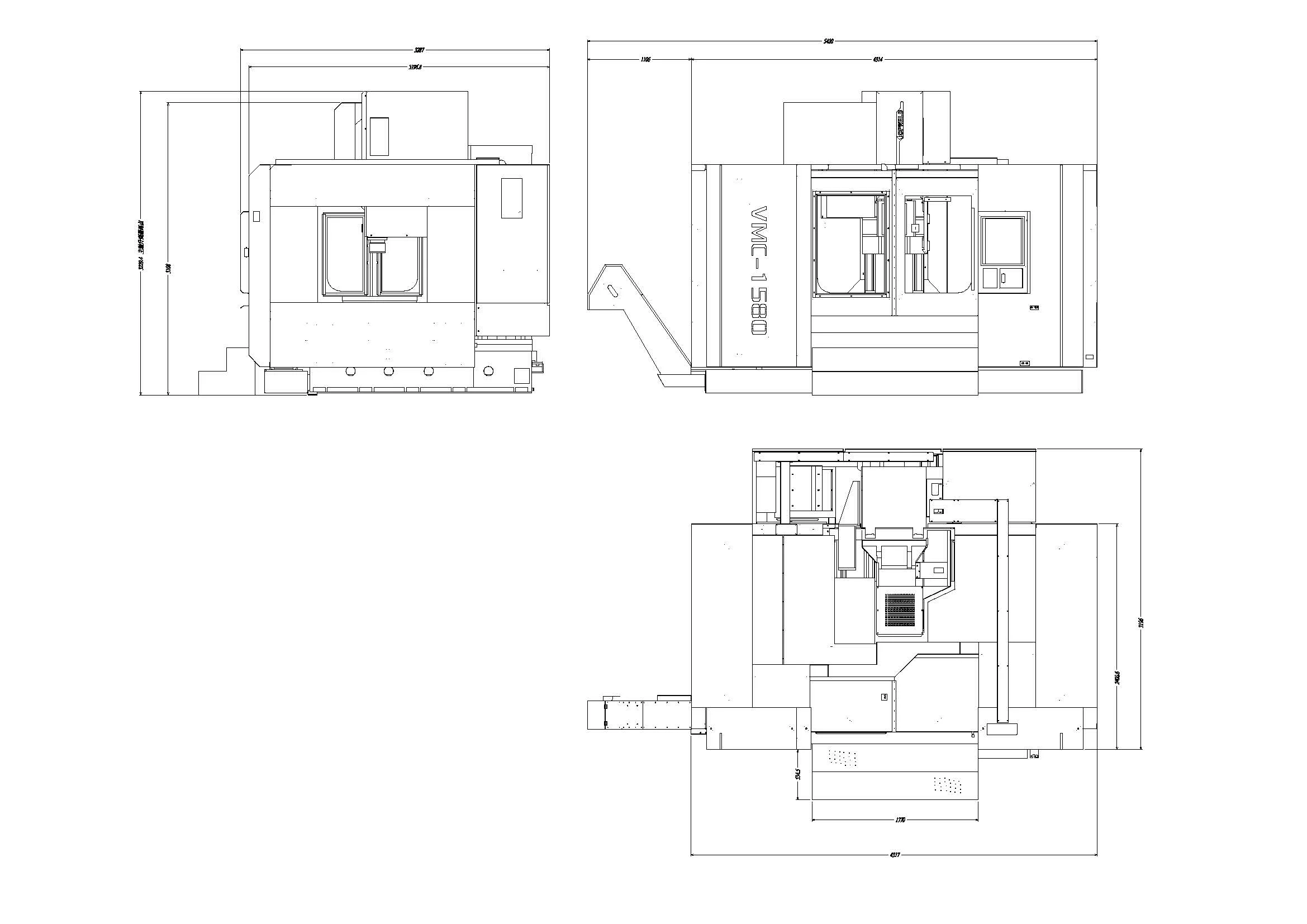

Overall Dimension Drawing

FACTORY SHOW
