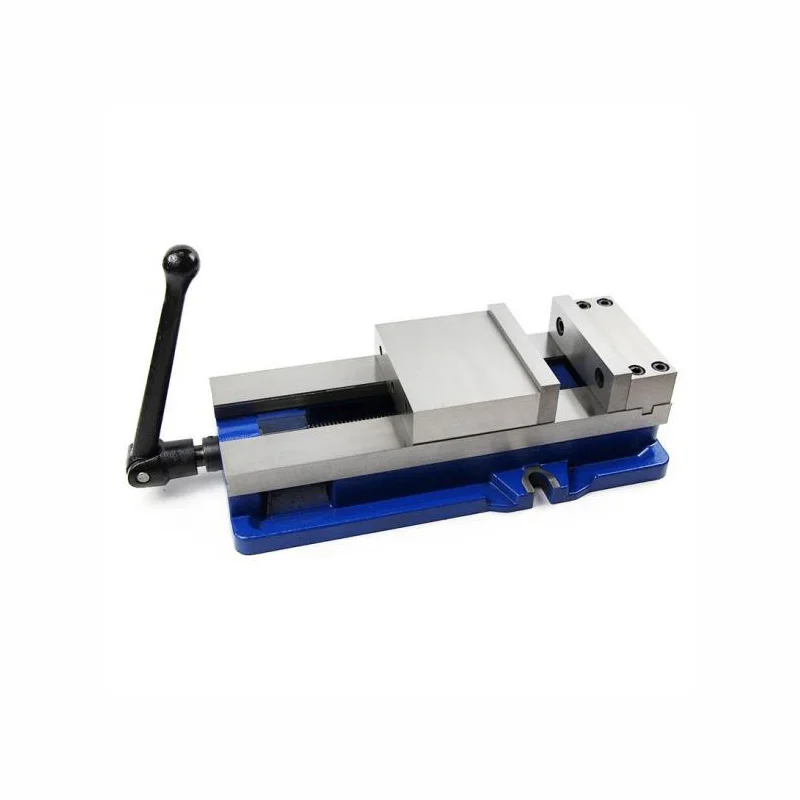

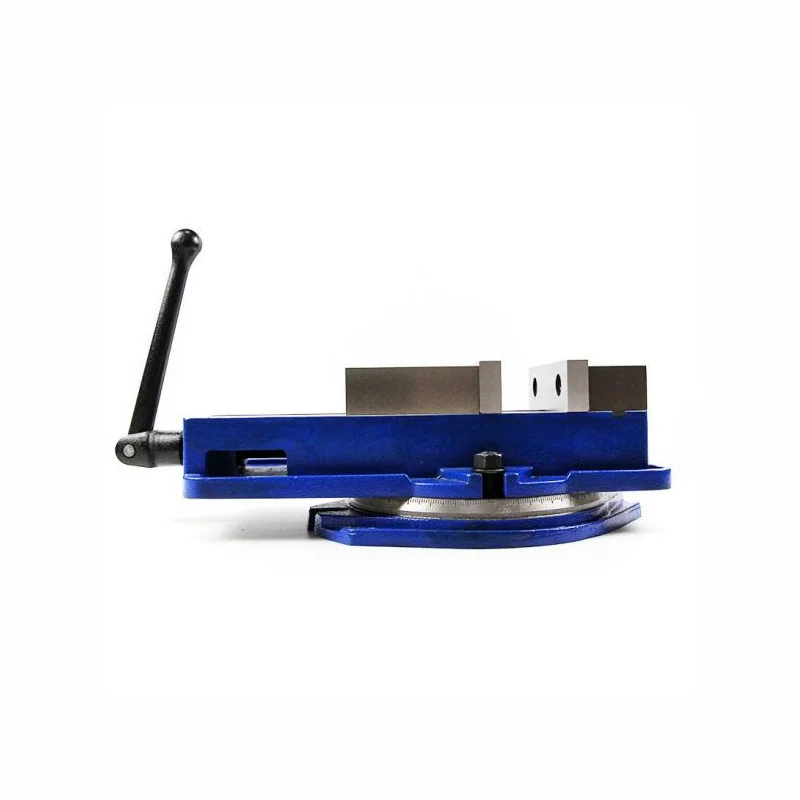

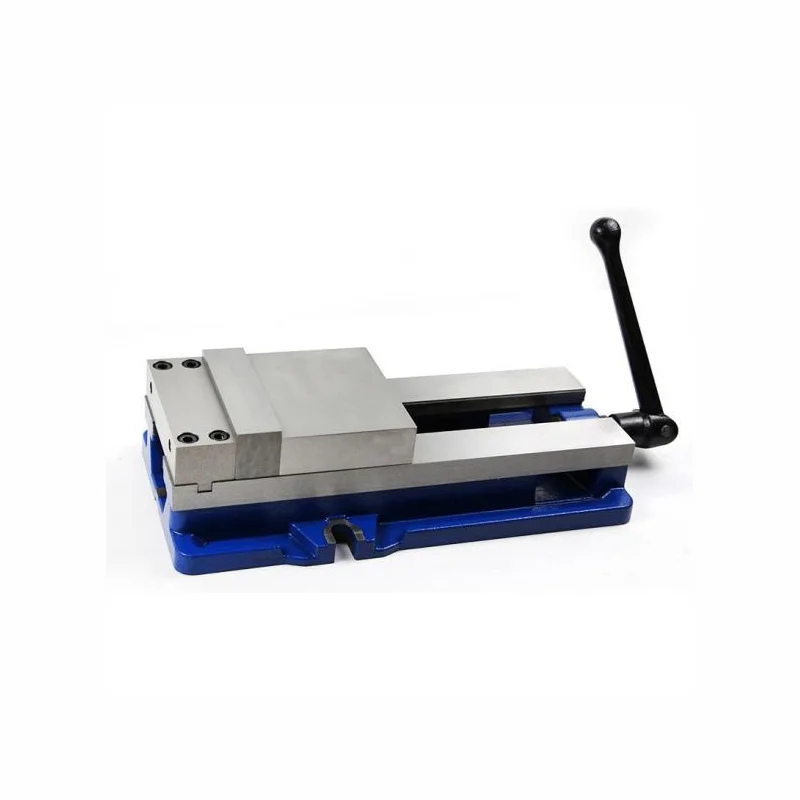

CYS VISE

VISE

▶ CYS series angle type machine vice is suitable for CNC vertical machining center.

FEATURES

▶ 1. Angle fixed design the semicircle can produce 30 degrees of downward force in the clamping process to ensure that the workpiece does not float up.

▶ 2. The clamping body guide rail surface, lead screw and jaw are all quenched to maintain long wear resistance and precision.

▶ 3. The fixed jaws are fastened by four bolts to reduce dynamic deformation

▶ 4. Special seal brush can avoid cutting residue

▶ 5. Equivalent height can be used in parallel with multiple sets

▶ 6. The fixed end of the screw adopts thrust bearing, which reduces friction and has large clamping force

▶ 7. The material is high strength ductile iron

FIXED ACCURACY

▶ The parallelism of the clamping body guide rail:0.01/100mm

▶ The verticality of the vice jaw:0.02mm

▶ The flatness of the clamping workpiece:0.02/100mm

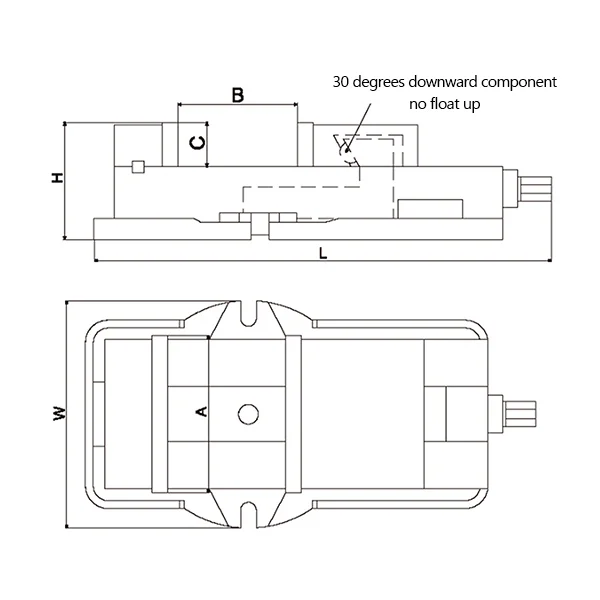

DIMENSION
