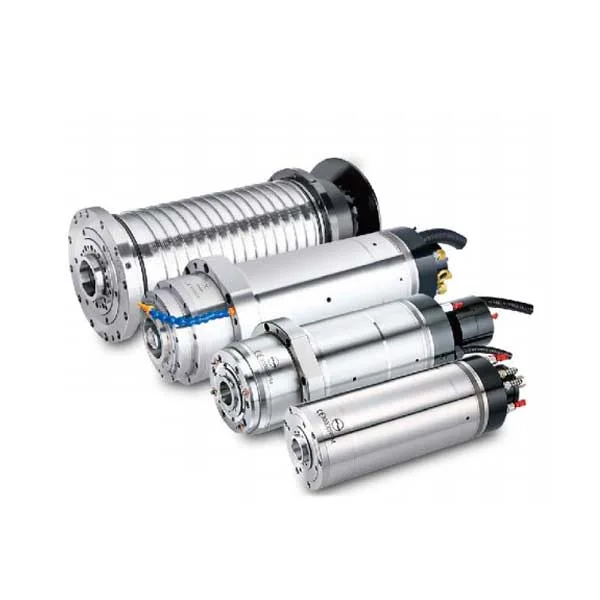

ENGRAVING ELECTRIC SPINDLE
PRODUCT PARAMETER

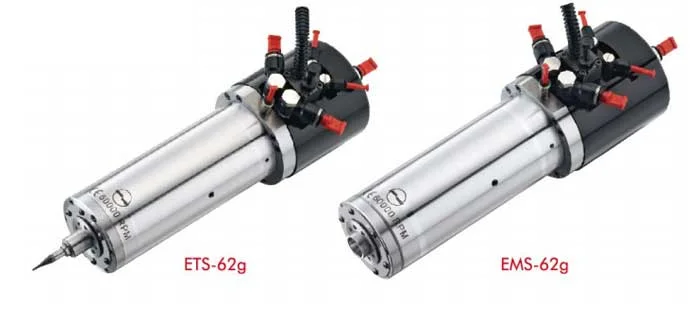

| Specifications | Model: ETS-62g | Model: EMS-62g | |
| Model | Total length (mm) | 249.5 | 255.5 |
| Approx. weight (kg) | 4.5 | 4.8 | |
| Flange mounting | No | No | |
| Operation position | V/H | V/H | |
| Lubrication | Grease | Yes | Yes |
| Oil/air lubrication | - | - | |
| Oil injection lubrication | - | - | |
| Spindle model | 60000 | 60000 | |
| Motor | Number of pole | 2 | 2 |
| Voltage (V) | 220 | 220 | |
| Max current (A) (220V/380V) | 6.8 | 6.8 | |
| Max. frequency (Hz) | 1000 | 1000 | |
| Rotation direction | CW/CCW | CW/CCW | |
| Duty | Power (kw) S1 100% / S6 60% (P) | 2.0/2.4 | 2.0/2.4 |
| Torque (N.m) S1 100% / S6 60% (T) | 0.32/0.38 | 0.32/0.38 | |
| at speed (n0) (1/min) | 60000 | 60000 | |
| Clamping System | Front bearing size (mm) | Ø17 | Ø20 |
| Taper size | Collet ECA | ISO-10 | |
| Drive dogs | - | - | |
| Tool dimensions (mm) | Ø6 | Ø0.5~Ø7 | |
| Static clamping force (N) | 600 | 800 | |
| Tool release pressure (Bar) | Air > 6 | Air > 6 | |
| Equipment | Taper blow out (Bar) | 6 | 6 |
| Shaft positioning | op | op | |
| Front seal (Bar) | 1~1.5 | 1~1.5 | |
| Cooling system (kw) | 0.5 | 0.5 | |
| Tool detection | S | S | |

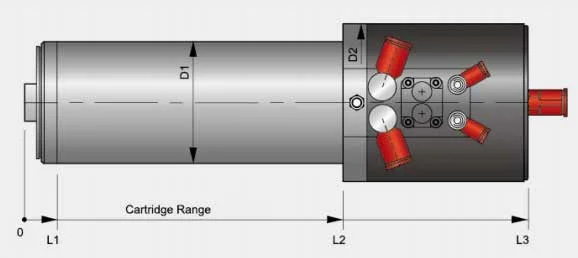

PRODUCT MODEL
| Spindle Type | Cartridge Range | L3 | D1 | D2 | |
| L1 | L2 | ||||
| ETS-62 | 26.5 | 165.5 | 249.5 | ∅61.91 | ∅80 |
| EMS-62 | 16.5 | 161.5 | 255.5 | ∅61.91 | ∅80 |

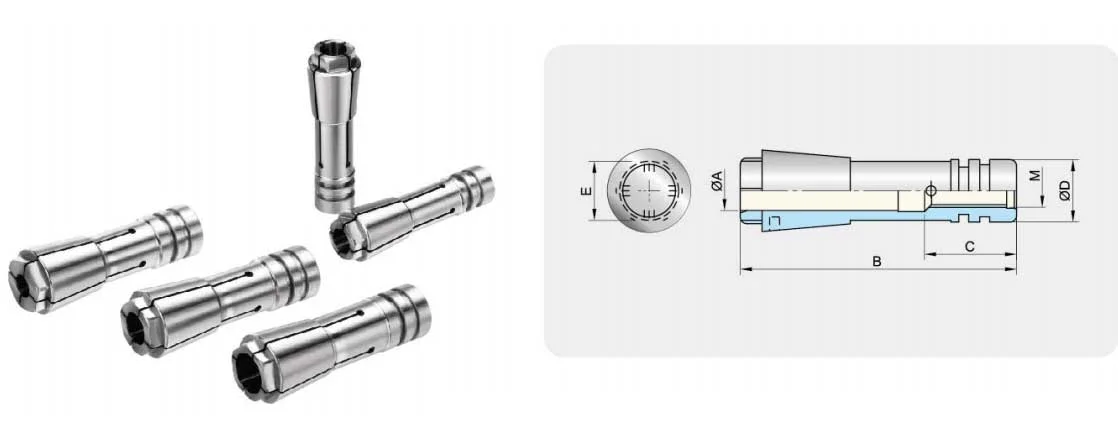

COLLET
| Collet Model | A | B | C | D | E | M |
| +0.005 | -0.1 | +0 | -0.1 | |||
| +0 | -0.004 | |||||
| ECA06 | 6 | 42 | 14 | 9.5 | 9 | M5*P0.8 |
| ECB06 | 6 | 50 | 19 | 13.5 | 13 | M8*P1.0 |
| ECB08 | 8 | 50 | 19 | 13.5 | 13 | M8*P1.0 |
| ECB10 | 10 | 50 | 19 | 13.5 | 13 | M8*P1.0 |
PRODUCT FEATURES
High Speed and Precision: With a maximum speed of up to 24,000 rpm, the spindle ensures smooth cutting and delivers fine, detailed engraving results.
High Rigidity Structure: Built with high-quality bearings and precision dynamic balancing, it offers stable operation and is ideal for long-term continuous use.
Efficient Cooling System: Equipped with built-in air or water cooling systems to effectively control temperature rise and extend the service life of the equipment.
Multiple Power Options: Available in various power levels to meet diverse material processing needs—from delicate engraving to heavy-duty cutting.
