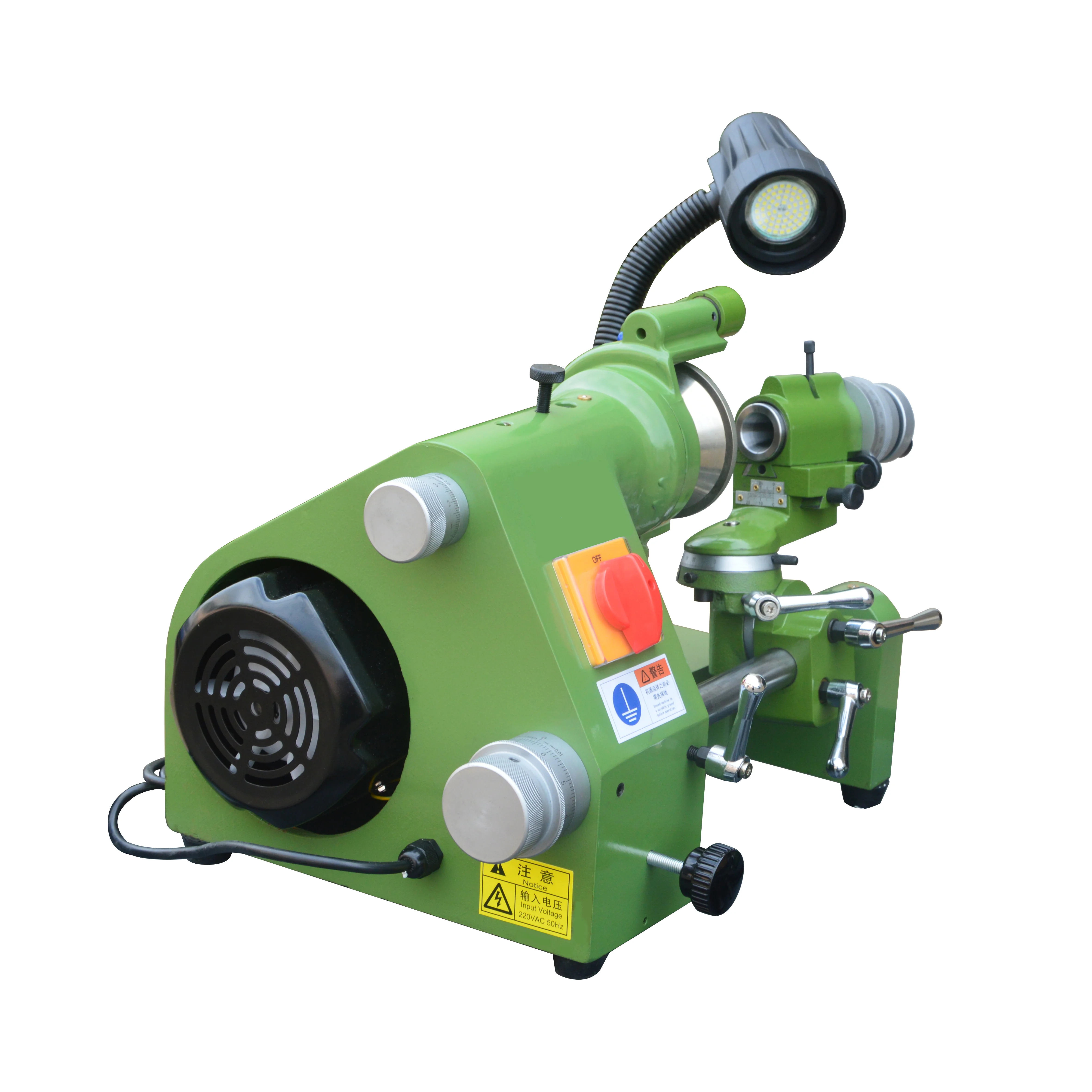

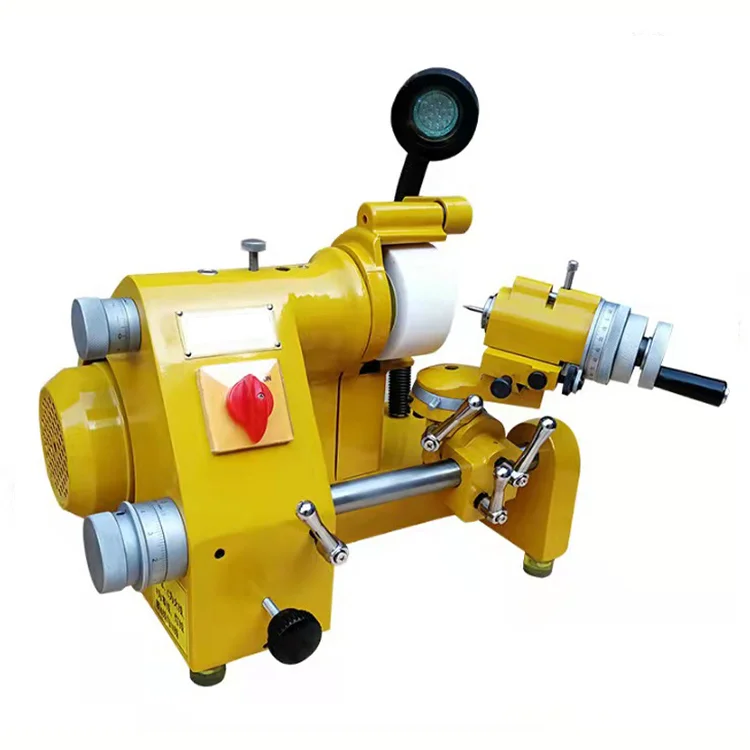

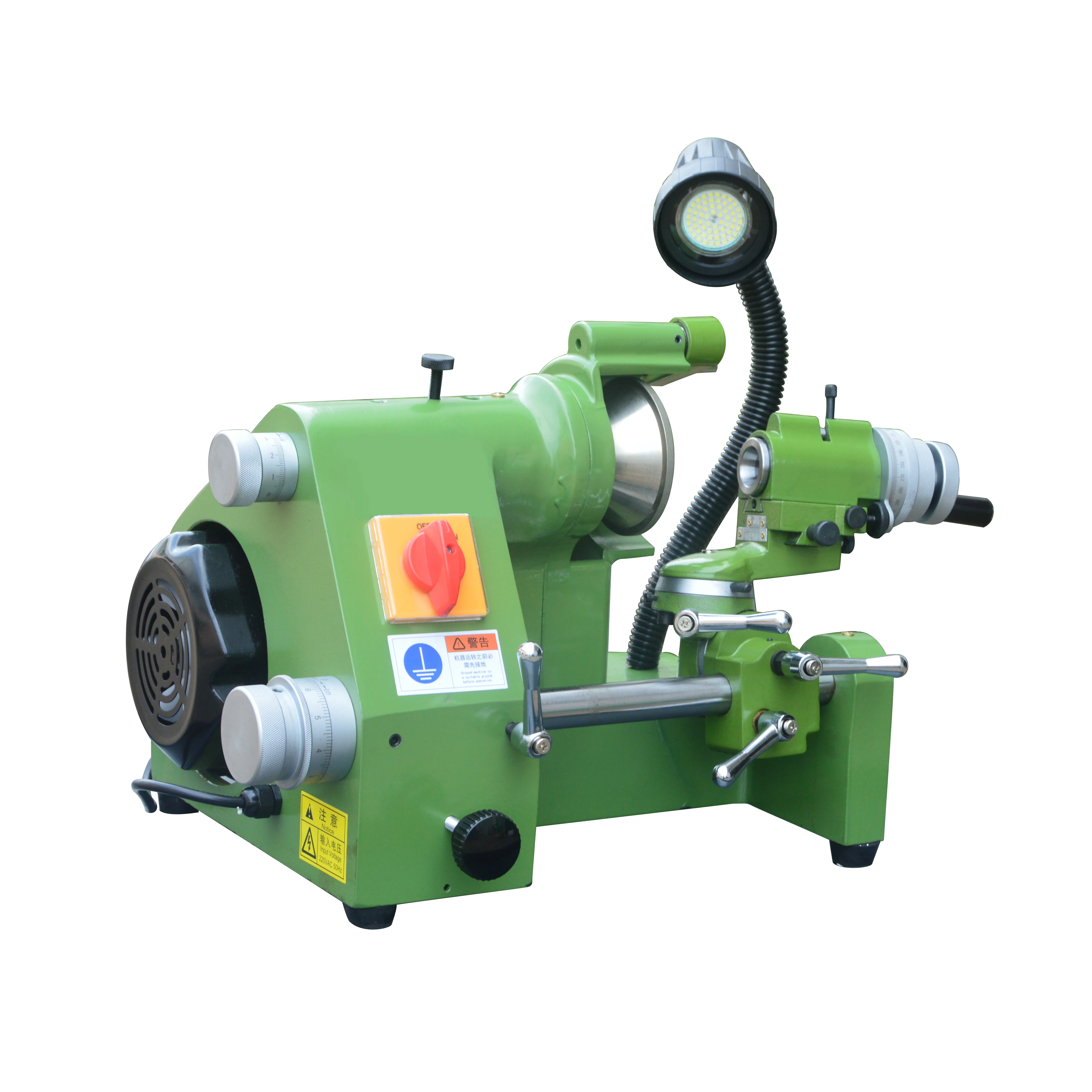

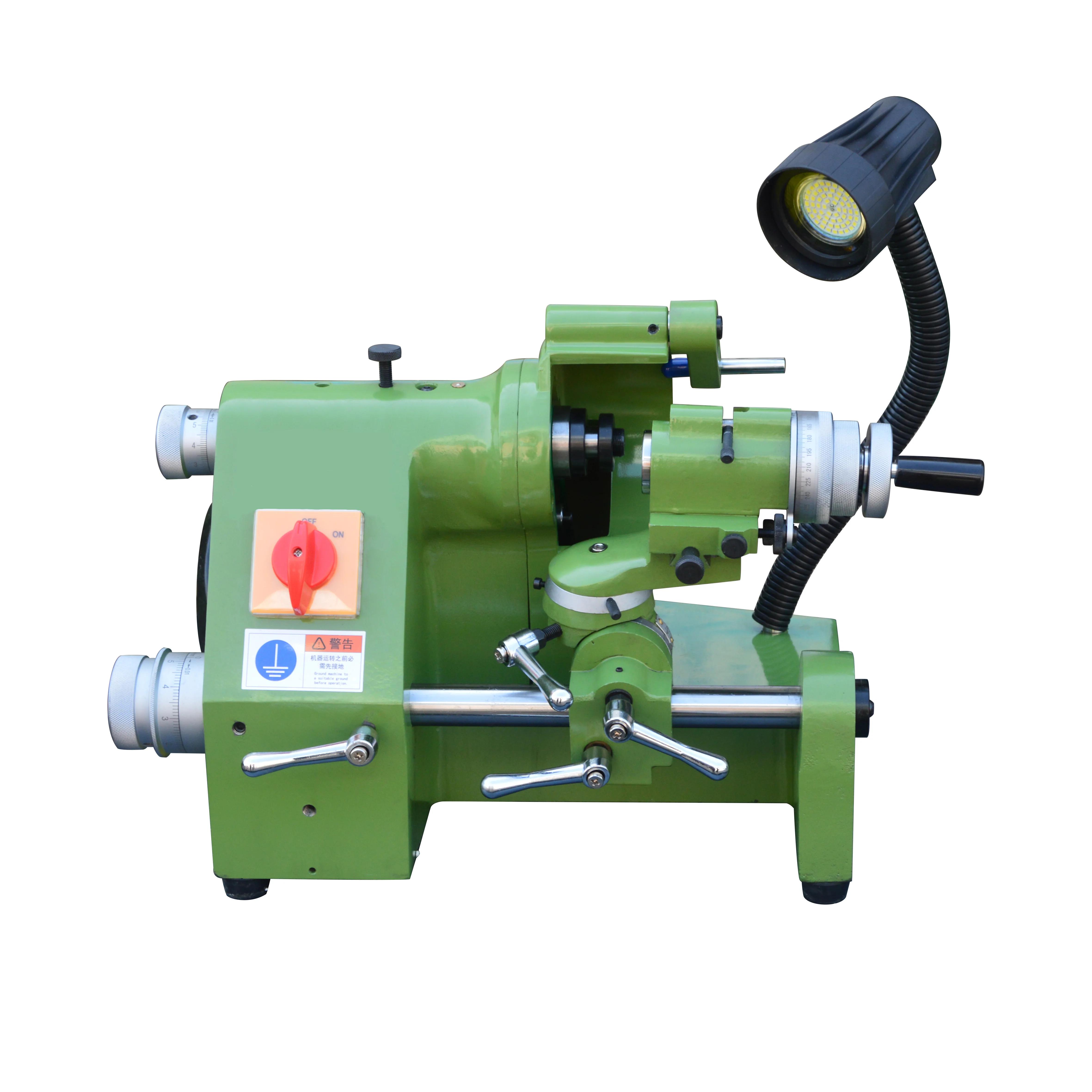

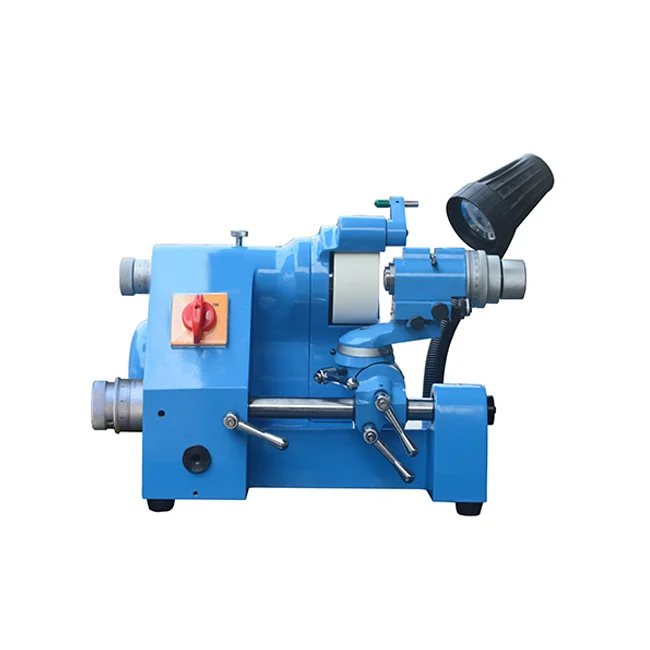

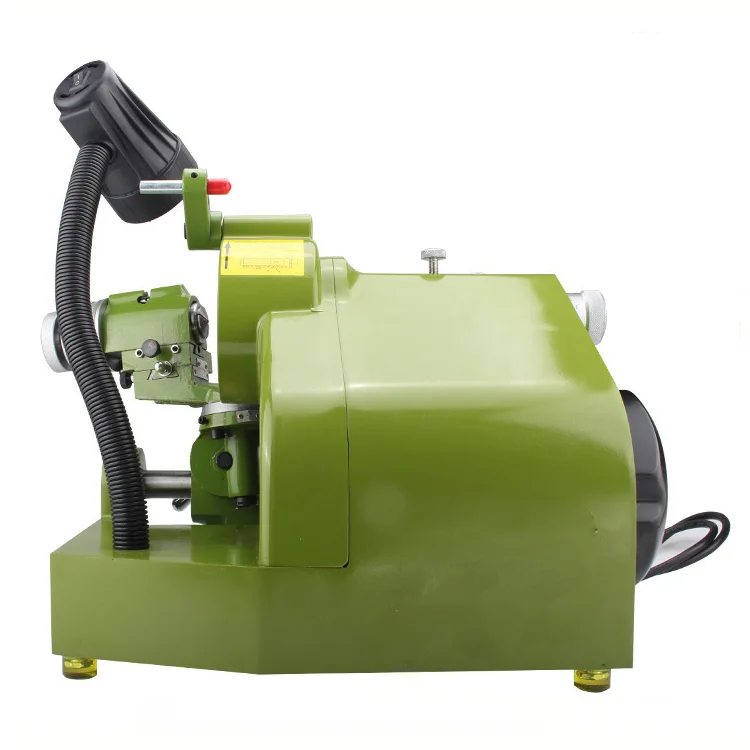

UNIVERSAL GRINDER MACHINE
UNIVERSAL GRINDER MACHINE
UNIVERSAL GRINDER MACHINE
UNIVERSAL GRINDER MACHINE
UNIVERSAL GRINDER MACHINE
UNIVERSAL GRINDER MACHINE

UNIVERSAL GRINDER MACHINE

share
twitterskypewechatfacebooklinkedin

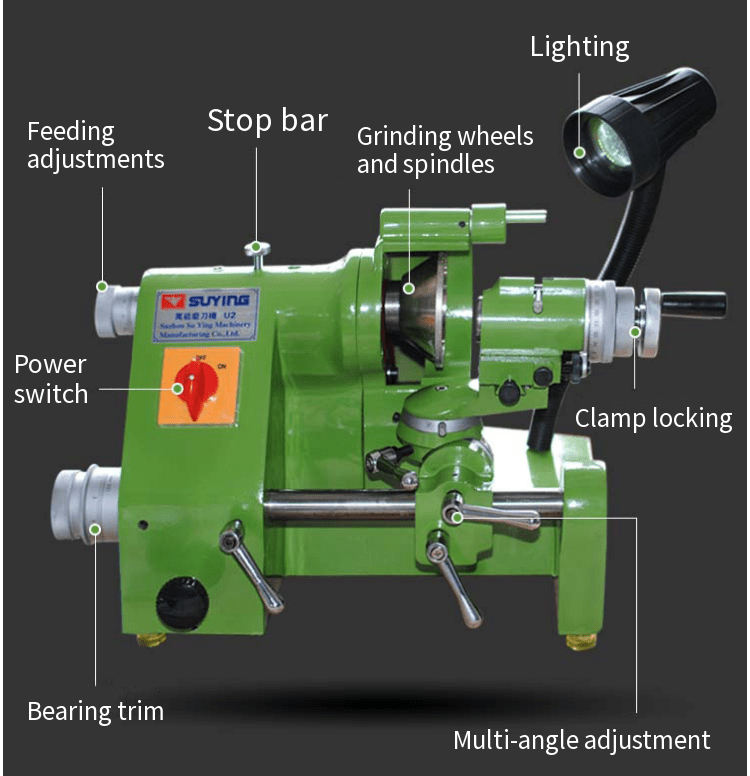

Universal Cutter Grinder, with development of the carved industry, precisely designed by engineers. It is made up by main unit, wheel, spindle, drives, micro-feed and the grinding wheel dresser, knife the composition, structure, novel, modeling beautiful, high precision, good performance, easy to use, easy maintenance, applicable: computer engraving machine, machine engraving machine, engraving machine and high-speed rotary die knife cone head, edge grinding, and milling cutter blade cutting edge, grinding angles accurately. Universal Grinder is equipped with more advanced type of sharpener, my company is quality first, service-oriented for the purpose, sincerely for the majority of mold engraving machine, computer engraving User Services
Product details

PARAMETER

MODEL

U2/U3

5C

Wheel

Diameter

Φ100mm

Φ100mm

Hole diameter

Φ20mm

Φ20mm

Spindle speed

5200rpm

5200rpm

Max.clamping diameter

Φ3~16mm

Φ3~28mm

Longitudinal traver of index head carrier

140mm

140mm

Longitudinal adjustment travel of index head carrler

18mm

18mm

Spindle and wheel longltudinal adjustment travel

6mm

6mm

Taper angle range

0~180°

0~180°

Negative taper angle range

0~26°

0~26°

Relief angle range

0~44°

0~44°

Motor

Power

0.37kw

0.37kw

Speed

2810rpm

2810rpm

Voltage Three-Phase

380V

380V

Voltage Single-Phase

220V

220V

Frequency

50Hz/60Hz

50Hz/60Hz

Gross weight

45Kg

45Kg

Packing dimensions

536x424x415mm

536x424x415mm

Standard Accessories

Tools

1set

1set

Collet

5pcs

8pcs

Grinding wheel

1pcs

1pcs

U2 and U3 main machine is same, U3 has three more attachments for grinding drills, turning tools and end mill.

Twist drill grinding attachment 3-8mm

Lathe tool grinding attachment 20x20mm

End mill grinding attachment 3-16mm

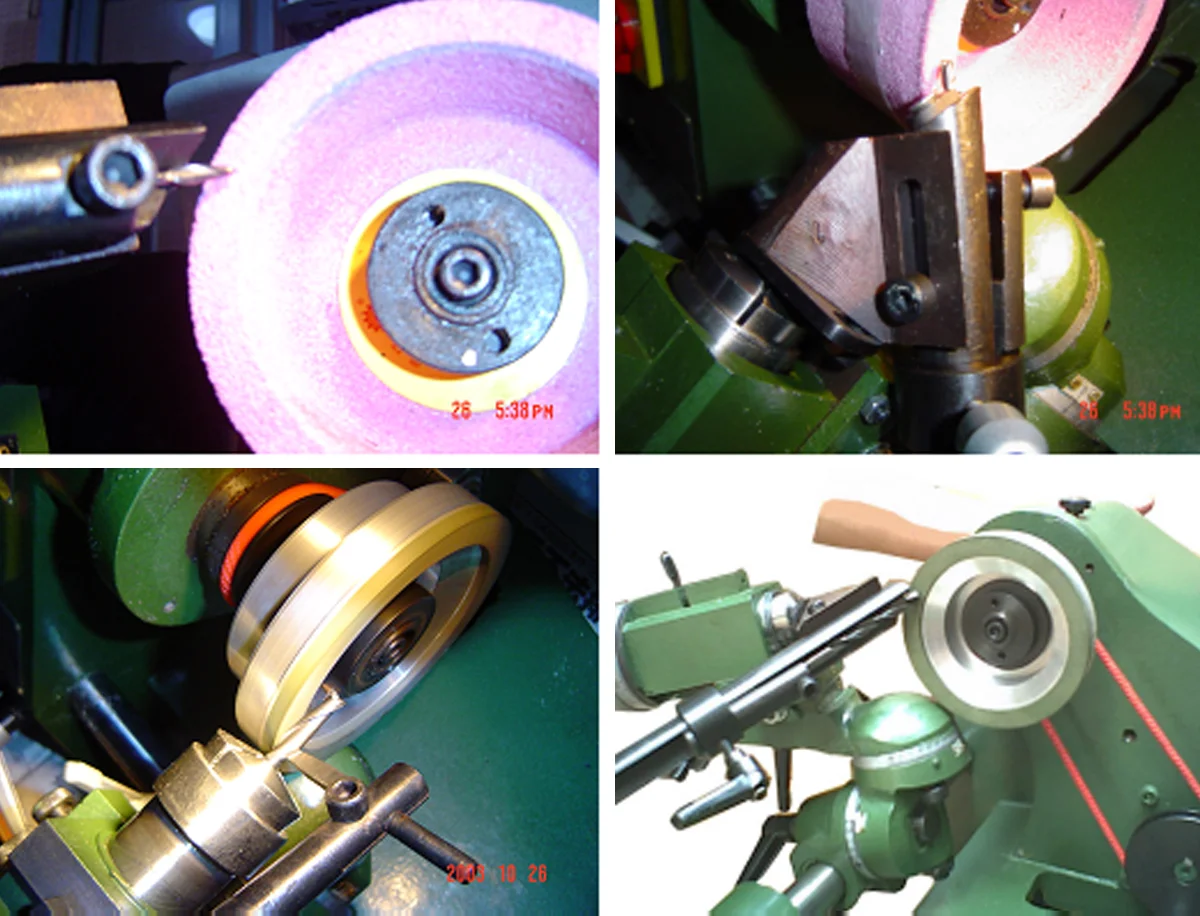

GRINDING PHOTO

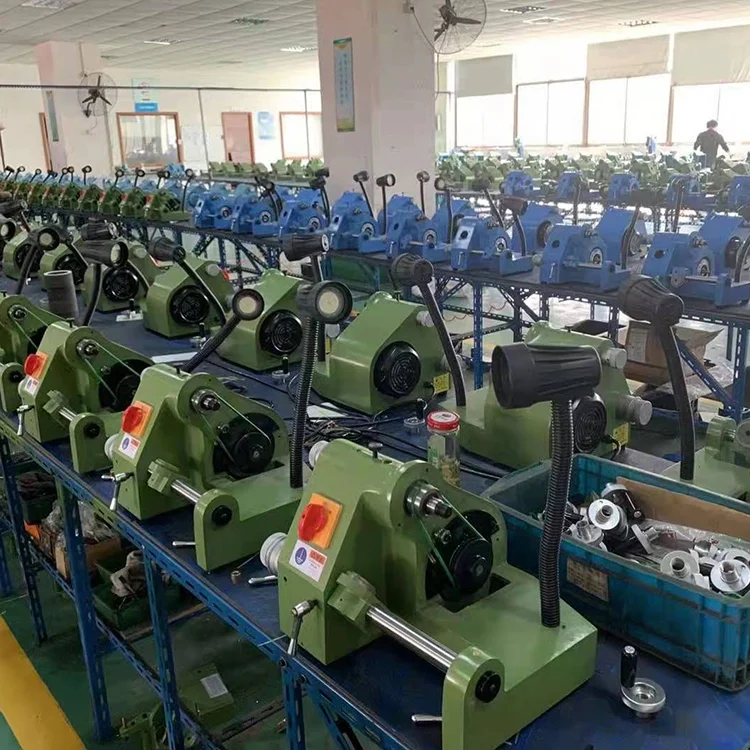

FACTORY
