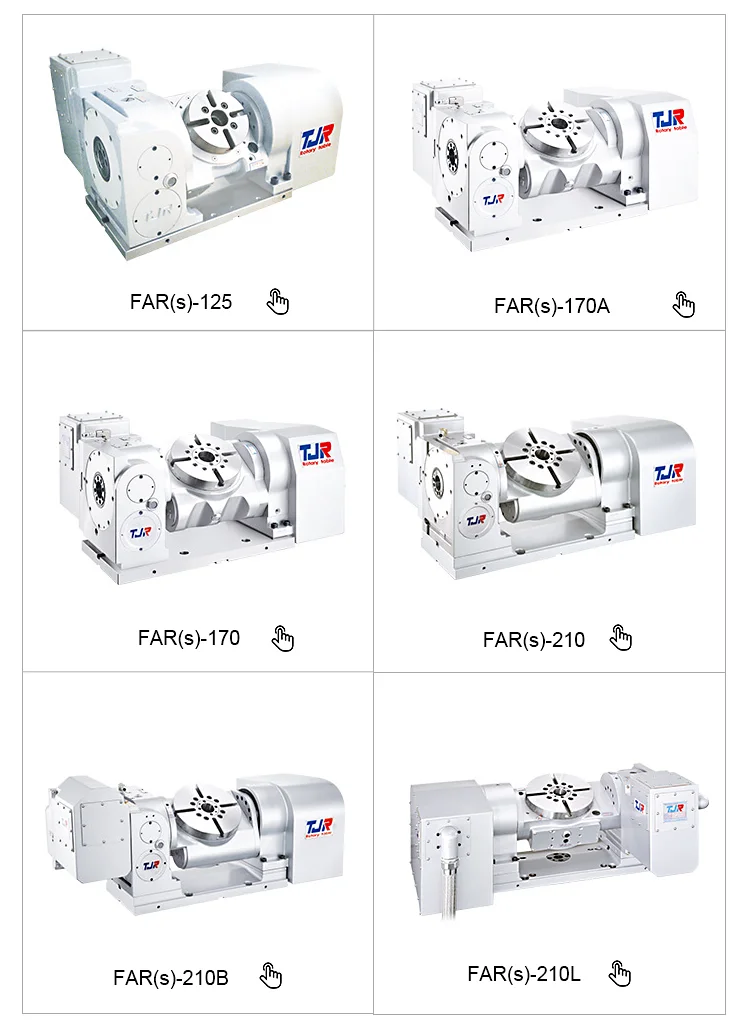

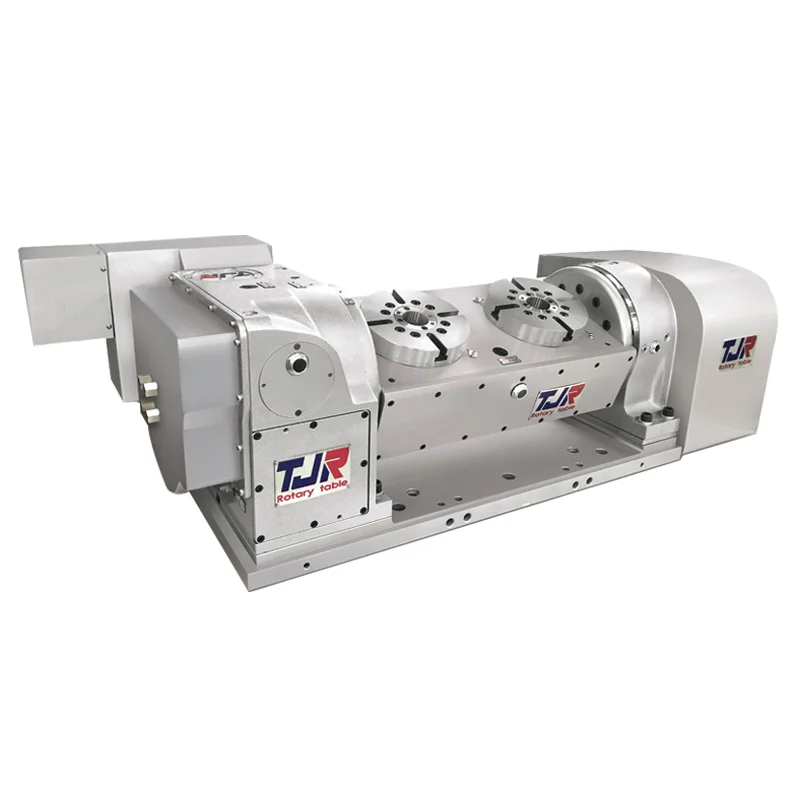

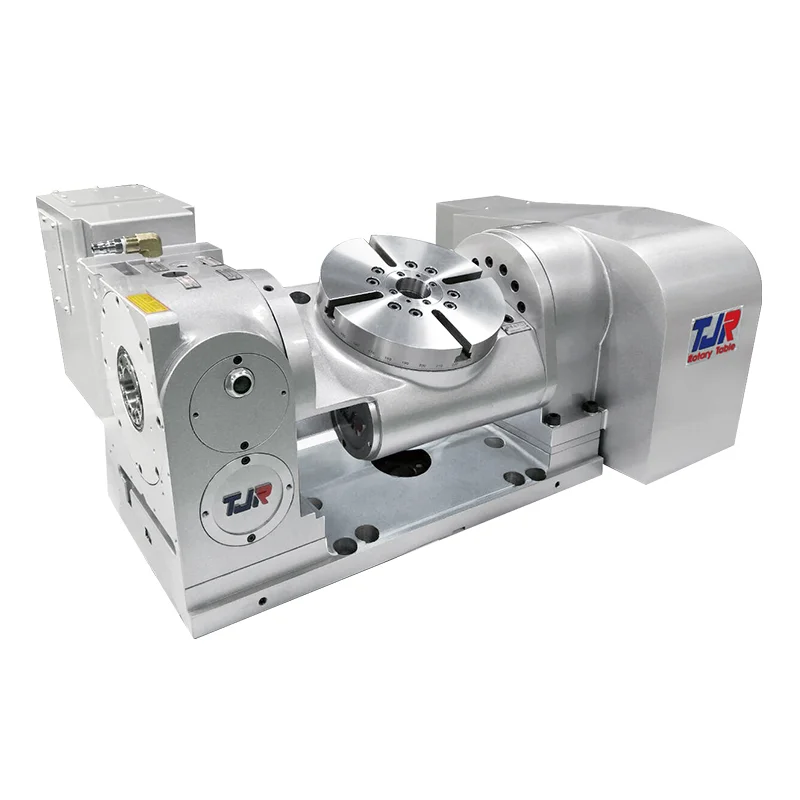

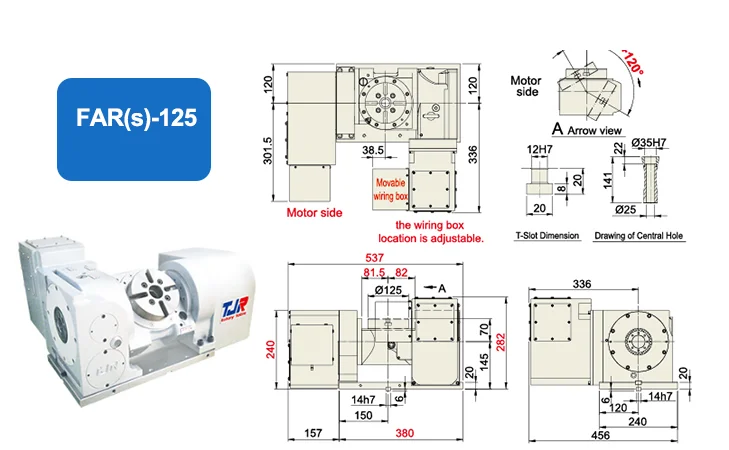

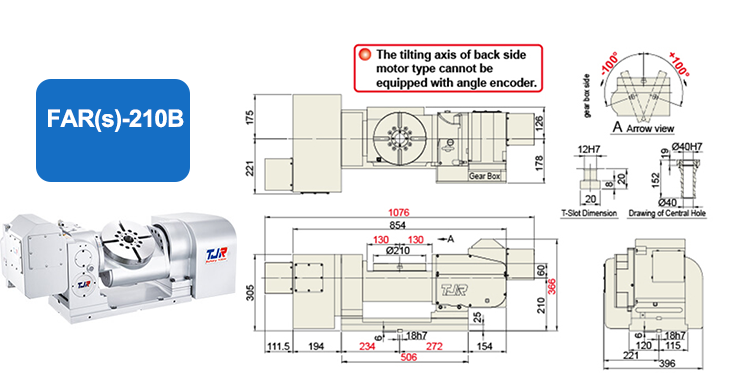

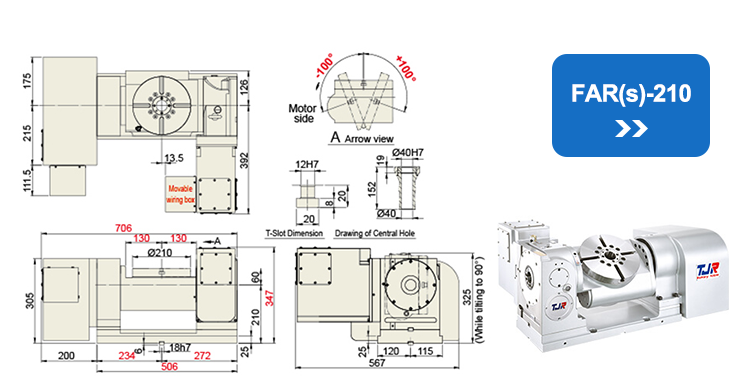

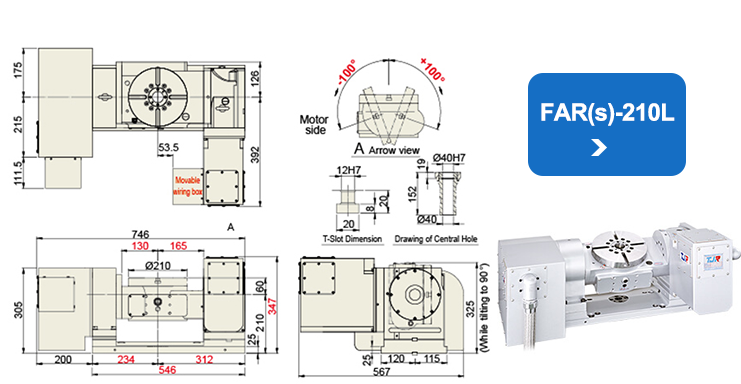

FAR SERIES 5TH AXIS ROTARY TABLE

Table Diameter

MM

ø125

ø170

ø170

ø210

Diameter of Table Central Hole

MM

ø35H7

ø67

ø67

ø67

Inner Diameter of Mandrel Sleeve

MM

-

ø40H7

ø40H7

ø40H7

Diameter of Center Through Hole

MM

ø25

ø40

ø40

ø40

Table Height (Horizontal)

MM

215

245

270

270

Table T-slot Width

MM

12H7

12H7

12H7

12H7

Guide Block Width

MM

14h7

18h7

18h7

18h7

Axis

-

Rotation

Tilt(-30°~+120°)

Rotation

Tilt ±100º

Rotation

Tilt ±100º

Rotation

Tilt ±100º

Min. Increment

deg.

0.001

0.001

0.001

0.001

0.001

0.001

0.001

0.001

Indexing Precision(while tilt 0°~+90°)

sec.

40

60 *¹

20

60 *¹

20

60 *¹

20

60 *¹

Repeatability

sec.

6

8

6

8

6

8

6

8

Clamping System (Pneumatic)

kgf/cm²

6

6

6

6

6

6

6

6 / Hyd.35 (optional)

Clamping Torque

kgf·m

13

31

25

31

31

31

31

31 / Hyd.55

Servo Motor Model

FANUC

Taper/Straight shaft

αis4/βis4

αiF4 / ßiS8

αiS4 / ßiS4

αiF4 / ßiS8

αiF4 / ßiS8

αiF8 / αiS12 / ßiS12

αiF4 / ßiS8

αiF8 / αiS12 / ßiS12

MITSUBISHI

Taper/Straight shaft

HG/HF-75/105

HG/HF-54/104

HG/HF-75/105

HG/HF-54/104

HG/HF-54/104

HG/HF-104

HG/HF-54/104

HG/HF-104

Speed Reduction Ratio

-

1:60

1:90

1:72

1：120 / SIEMENS 1：90

1:90

1:90

1:90

1:90

Max. Rotation Rate of Table (Calculate with Fanuc α Motor)

r.p.m

44.4 *(33.3)

44.4 *(33.3)

33.3 *(33.3)

33.3 *(16.6)

33.3 *(33.3)

33.3 *(16.6)

33.3 *(33.3)

33.3 *(16.6)

Allowable Inertia Load Capacity (Horizontal)

kg.cm.sec²

0.97

2.2

2.7

4.13

Allowable Workpiece Load

0° Horizontal

kg

50

60

75

75

0°~90°Tilt

kg

35

40

50

50

Allowable Load(with Rotary Table Clamping)

F

kgf

400

600

750

750

FxL

kgf·m

31

31

31

Pne.31 / Hyd.55

FxL

kgf·m

13

25

31

31

Driving Torque(Rotary axis)

kgf·m

9 *(3.7)

18 *(14.6)

18 *(14.6)

18 *(14.6)

Net Weight (servo motor excluded)

kg

97/-

125

153

160
