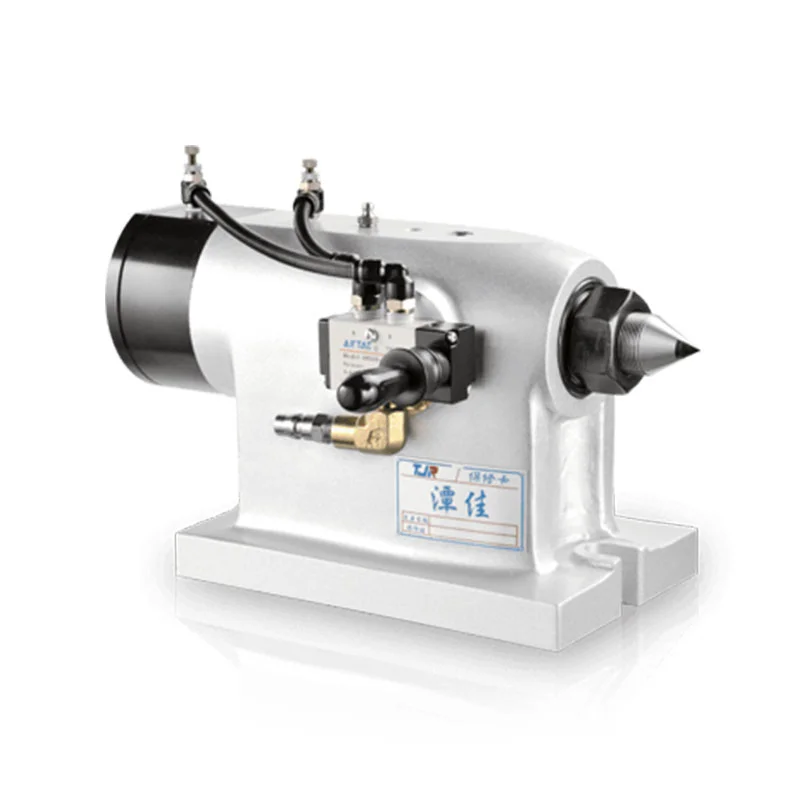

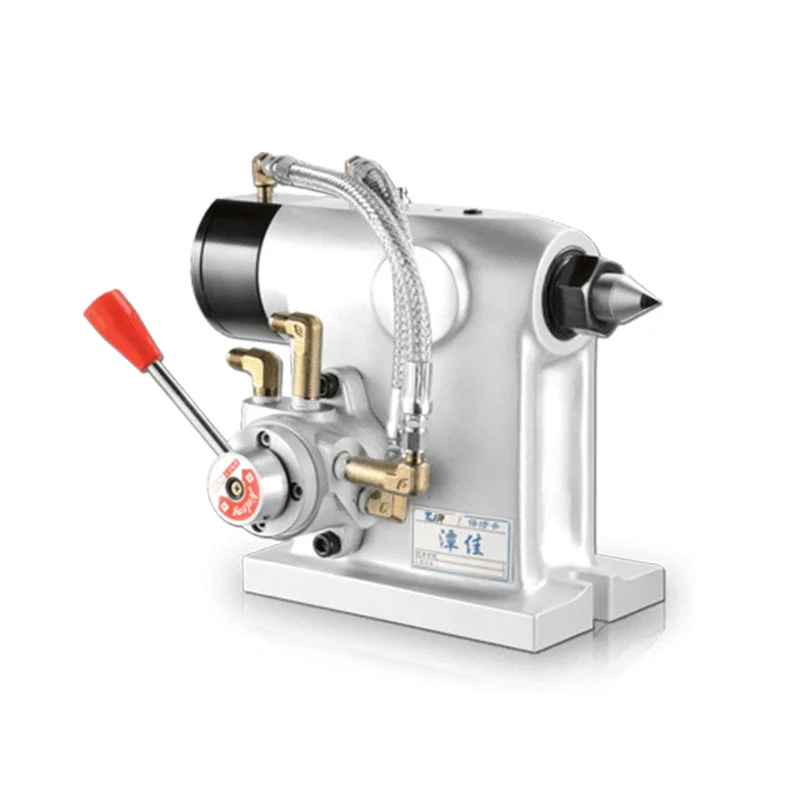

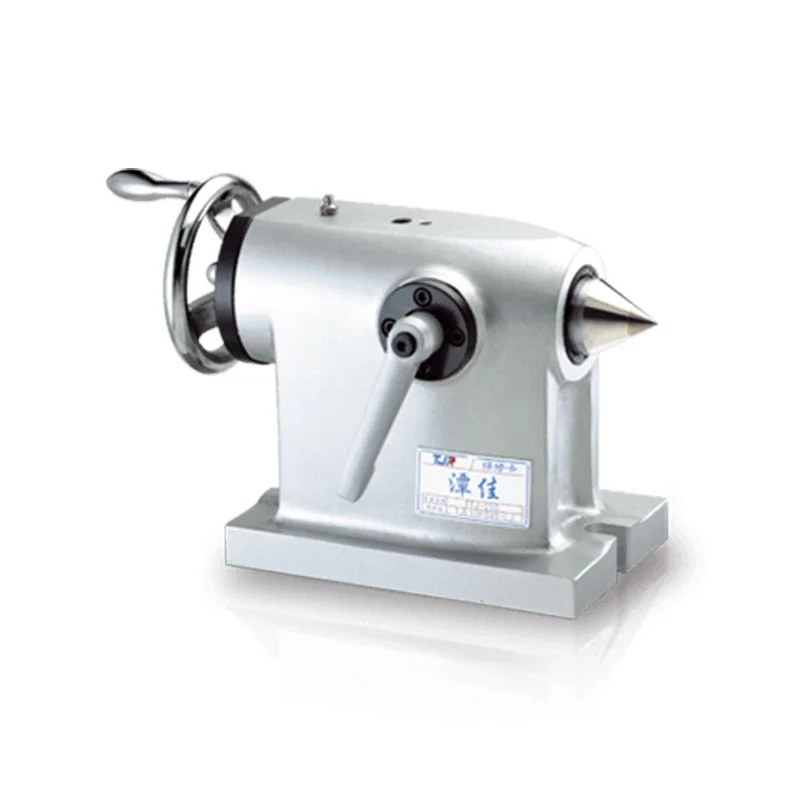

MANUAL TAILSTOCK

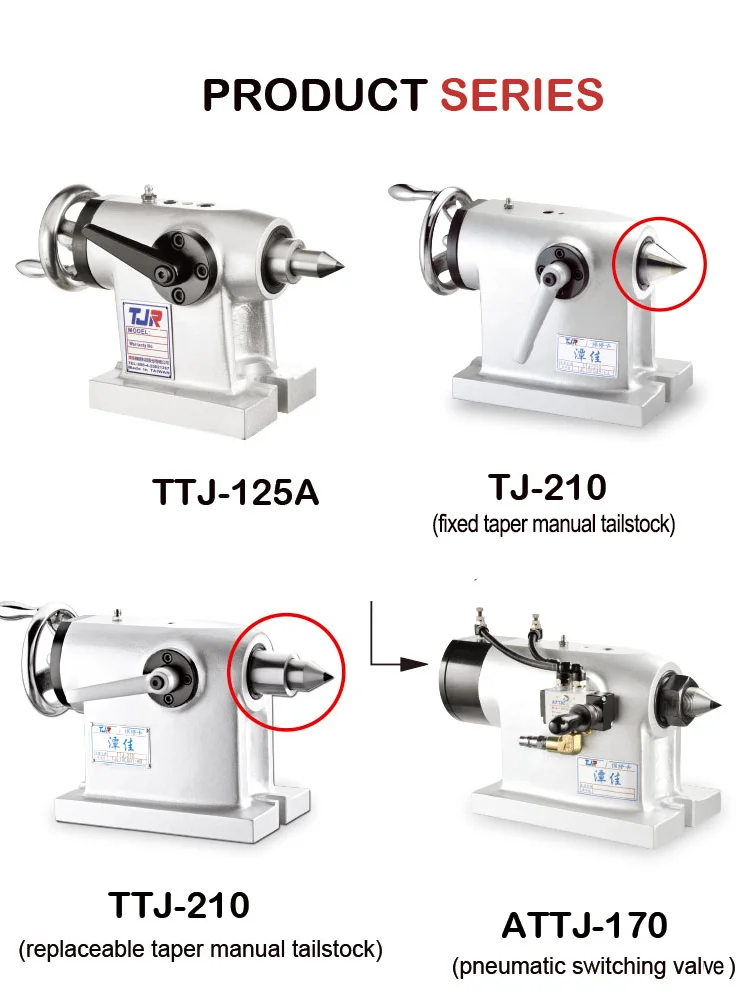

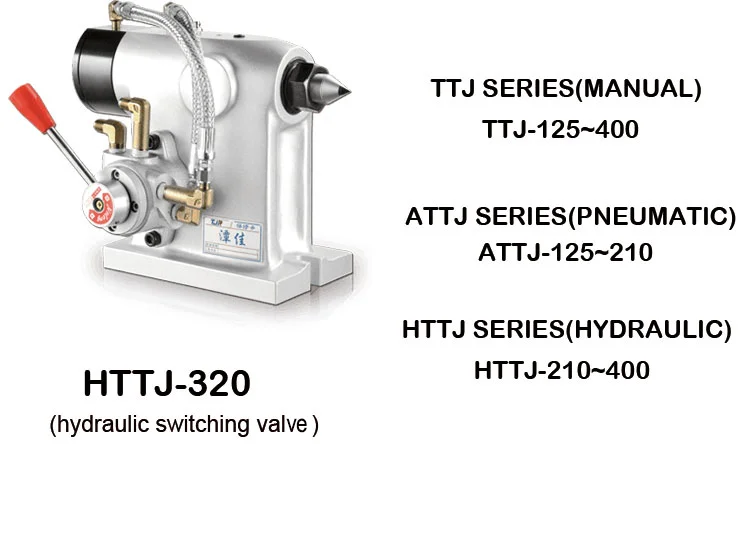

The manual tailstocks are supplied with MT4 cones. They can be operated manually, hydraulically, or pneumatically.
Product details
PHOTO SHOW
PARAMETER

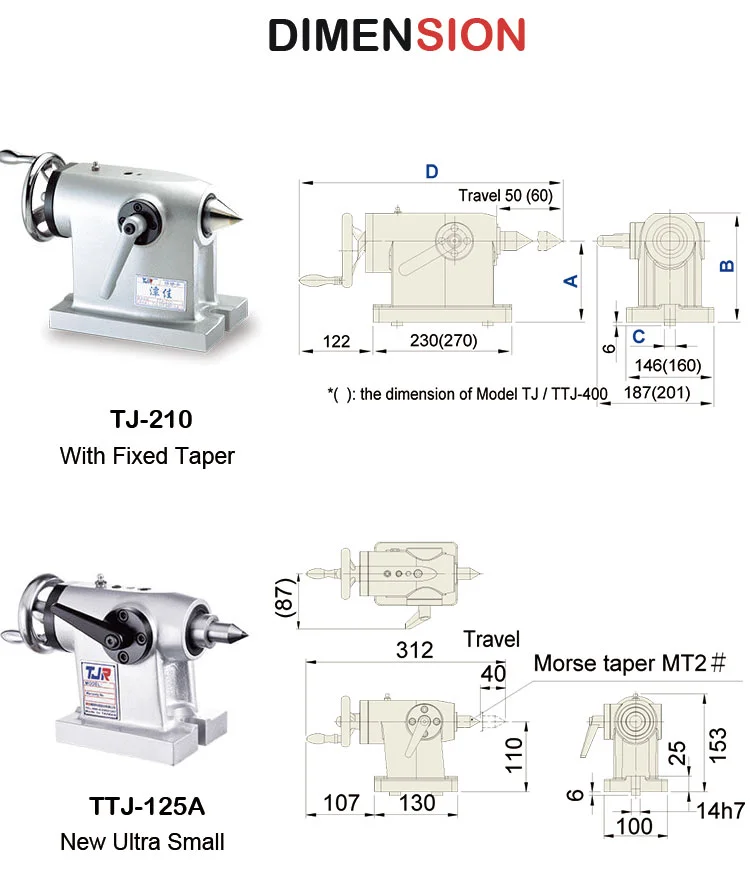

Model | A | B | C | D | kg |
TJ / TTJ-125 | 110 | 156 | 14 | 423/435.5 | 21.5 |
TJ / TTJ-170 | 135 | 181 | 18 | 423/435.5 | 23 |
TJ / TTJ-210 | 160 | 206 | 18 | 423/435.5 | 25 |
TJ / TTJ-255 | 160 | 206 | 18 | 423/435.5 | 25 |
TJ / TTJ-320 | 210 | 256 | 18 | 423/435.5 | 29 |
TJ / TTJ-400 | 255 | 310 | 18 | 487/503.5 | 48 |

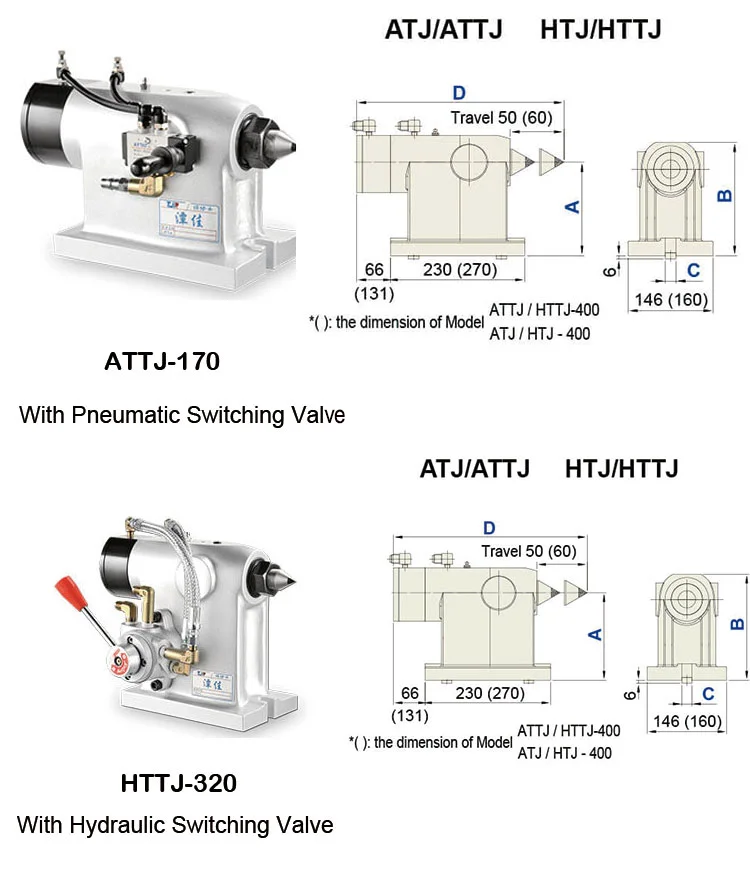

Model | A | B | C | D | kg |
ATJ / ATTJ-125 | 110 | 156 | 14 | 363/376 | 21 |
ATJ / ATTJ-170 | 135 | 181 | 18 | 363/376 | 23 |
ATJ / ATTJ-210 | 160 | 206 | 18 | 363/376 | 25 |
HTJ / HTTJ-210 | 160 | 206 | 18 | 363/376 | 25 |
HTJ / HTTJ-255 | 160 | 206 | 18 | 363/376 | 25 |
HTJ / HTTJ-320 | 210 | 256 | 18 | 363/376 | 29 |
HTJ / HTTJ-400 | 255 | 310 | 18 | 496/495 | 50 |
