VMC850 VERTICAL MACHINING CENTER

Product Information

VMC850 Vertical Machining Center

The VMC850 Vertical Machining Center stands as a versatile and powerful solution for precision machining, catering to a broad spectrum of industries, including automotive, aerospace, and metalworking. Engineered with state-of-the-art technology, this CNC machining center is designed for operators seeking to ramp up their production capabilities while maintaining high standards of accuracy and efficiency.

Product Feature:

▶ 1.The production efficiency is high in the case of multi-variety and small batch production.

▶ 2.Belt spindle and driect spindle are optional.

▶ 3.VMC 850 uses HIWIN or PMI brand guideways and ballscrews from Taiwan.

▶ 4.Siemens, Fanuc, GSK and other domestic and foreign operating systems can be selected.

▶ 5.The machine can be customized according to requirements of customers.

▶ 6.Worktable Size (L×W): The VMC850 boasts a generous worktable measuring 1000mm by 500mm, providing ample space for processing large parts or multiple smaller parts simultaneously.

▶ 7.Axis Travel: Precision is paramount with the VMC850, featuring max travels of 800mm on the X-axis, 500mm on the Y-axis, and 500mm on the Z-axis. Such dimensions ensure flexibility and versatility in machining complex geometries.

▶ 8.Spindle Attributes: At the heart of the VMC850 is its high-speed spindle, adopting a BT40 model with a Φ140mm diameter (short nose) and capable of reaching up to 12000 RPM. Whether it’s for belt-driven or direct applications, the spindle delivers remarkable performance and reliability.

▶ 9.Enhanced Precision and Stability: The machine is equipped with a robust 3616 X.Y.Z axis ball screw and uniform 35mm track widths across all axes, ensuring smooth and precise movement. Additionally, the spindle’s proximity to the worktable (ranging from 170mm to 670mm) and the distance from the spindle center to the column (524mm) further augment its accuracy and stability.

▶ 10.T-Slots Configuration: The worktable features an optimal layout of 5 T-slots with 18mm size and 102mm distance between them, offering flexibility for securing a variety of workpieces securely and efficiently.

▶ 11.Operational Excellence: Built to maximize productivity, the VMC850 ensures ease of operation and maintenance, providing a reliable and effective machining center suitable for both high-volume production and intricate, custom machining tasks.

Leveraging these sophisticated features, the VMC850 Vertical Machining Center represents a significant advancement in machining technology, offering manufacturers the capability to elevate their production quality and throughput.

Product Parameter

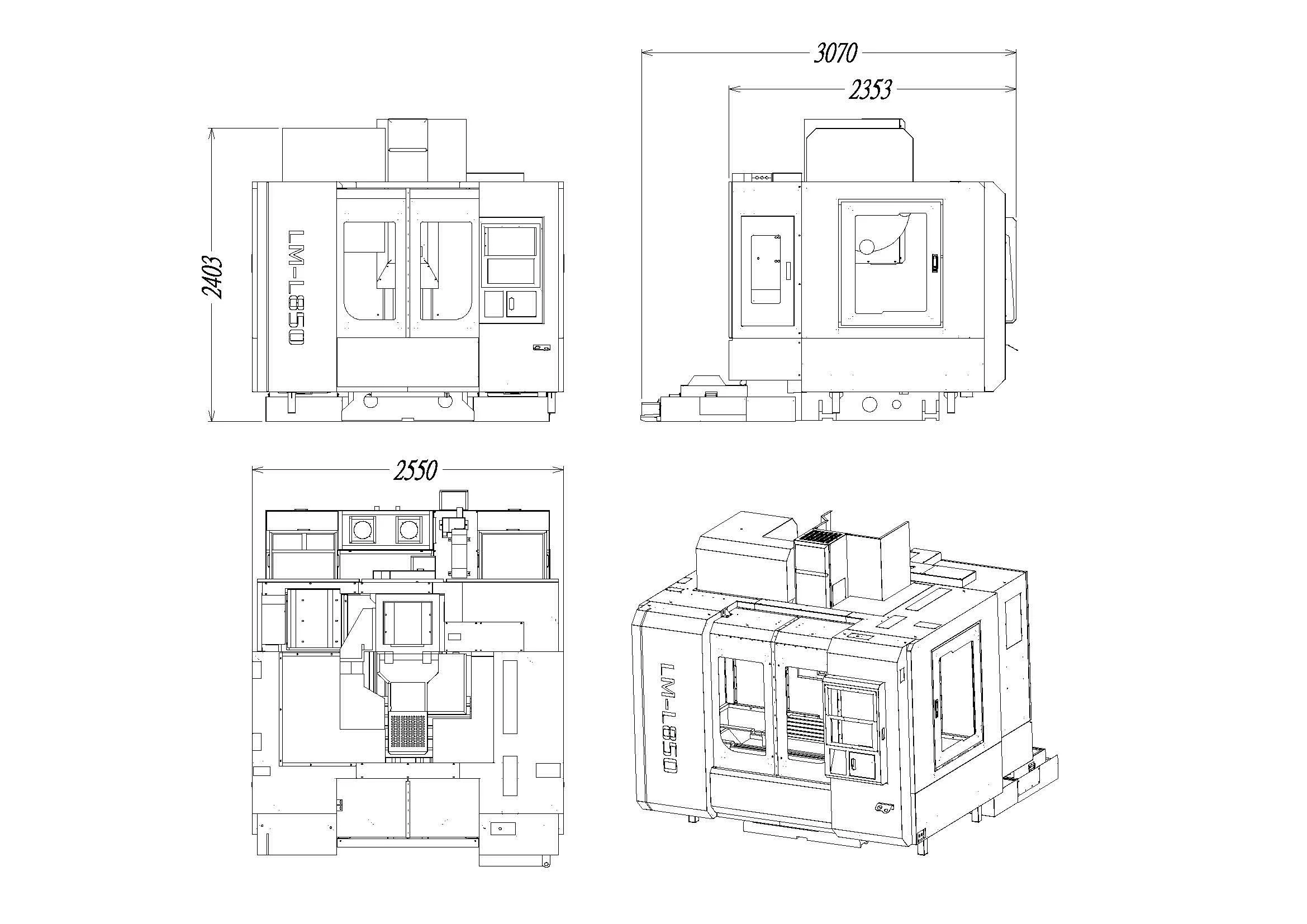

Overall Dimension Drawing

Product Show
