RENISHAW OSP60 STYLI PROBE
To further optimize the operational advantages of the OSP60 probe, a selection of premium styli is offered to deliver superior metrology performance. OSP60 styli feature grade 5 stylus balls that are UKAS certified and are available in both standard and individually calibrated versions. They come in lengths ranging from 80 mm to 150 mm and can be equipped with either ruby or silicon nitride ball materials. Additionally, the OSP60 probe is compatible with standard Renishaw styli.
Product details
KEY FEATURES AND BENEFITS
Enhanced tolerances for improved metrology performance
The precise ball diameter is engraved on the stylus holder for calibrated styli
All configurations include a break stem
A selection of ball materials to optimize compatibility with component composition

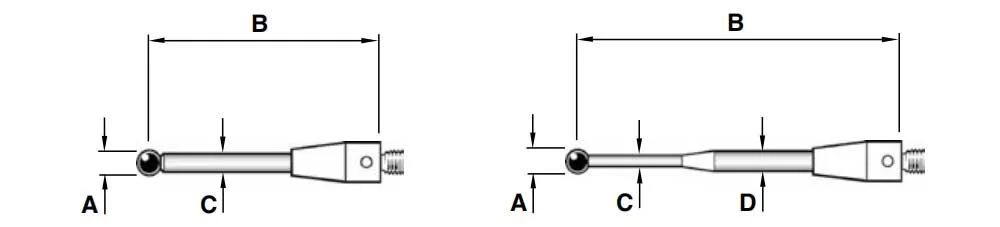

DIMENSIONS
Dimensions given in mm (in)
OSP60 STYLI SPECIFICATION
| Ball material | |||||
| Ruby | Silicon nitride | Ruby | Silicon nitride | ||
| Part Number | Standard | A-5004- 4472 | A-5004- 6470 | A-5004- 4474 | A-5004- 6471 |
| Calibrated | A-5465- 8576 | A-5465- 5008 | A-5465- 8577 | A-5465- 5009 | |
| A | 6.0 (0.24) | 6.0 (0.24) | |||
| B | 100.0(3.94) | 150.0 (5.91) | |||
| C | 3.8(0.15) | 3.8 (0.15) | |||
| Ball material | |||||||
| Ruby | Silicon nitride | Ruby | Silicon nitride | Ruby | Silicon nitride | ||
| Part Number | Standard | A-5004- 6463 | A-5004- 6467 | A-5004- 6464 | A-5004- 6468 | A-5004- 6465 | A-5004- 6469 |
| Calibrated | A-5465- 5001 | A-5465- 5005 | A-5465- 5002 | A-5465- 5006 | A-5465- 5003 | A-5465- 5007 | |
| A | 2(0.08) | 3 (0.12) | 4 (0.16) | ||||
| B | 80(3.15) | 100(3.94) | 100(3.94) | ||||
| C | 1.50 (0.06) | 2(0.08) | 2 (0.08) | ||||
| D | 3.80 (0.15) | 3.80 (0.15) | 3.80 (0.15) | ||||
