RENISHAW OSP60 PROBE

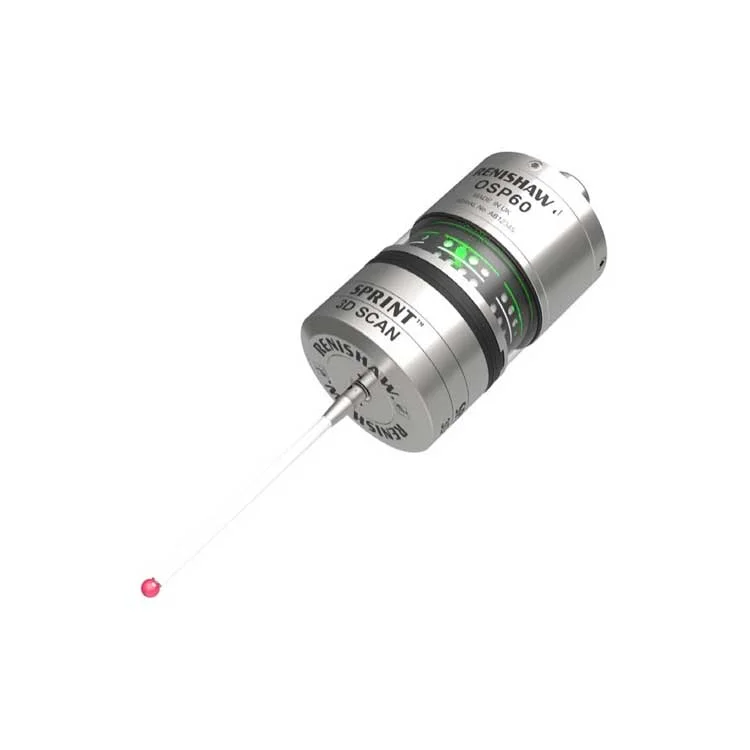

The OSP60 probe, featuring SPRINT™ technology, is a small yet powerful spindle probe designed for CNC machine tools.Containing an analogue sensor with 0.1 µm resolution in three dimensions, the probe provides exceptional accuracy and gives the greatest possible understanding of workpiece form.
Built from premium materials, the probe is tough and dependable, capable of withstanding challenging conditions such as shock, vibration, extreme temperatures, and exposure to liquids.
Built from premium materials, the probe is tough and dependable, capable of withstanding challenging conditions such as shock, vibration, extreme temperatures, and exposure to liquids.
Product details
KEY FEATURES AND BENEFITS
Unique sensor mechanism for high-speed, high-resolution scanning
Continuous measurement of 1,000 true 3D data points per second
Excellent resistance to shock, vibration, impact, extreme temperatures and coolant flooding
Compatible with a range of premium quality styli for optimal metrology performance
1 µm 2σ repeatability
DIMENSIONS

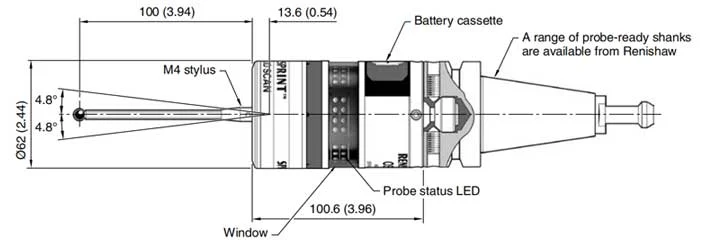

Dimensions given in mm (in)
| Stylus overtravel limits | |||
| Stylus length | ±X/±Y | +Z | -Z |
| 75 (1.97) | 7 (0.28) | 6 (0.24) | 2.2 (0.09) |
| 100 (3.94) | 9(0.35) | 6 (0.24) | 2.2 (0.09) |
| 150(5.91) | 13.5 (0.53) | 6 (0.24) | 2.2 (0.09) |
OSP60 SPECIFICATION
| Principal application | High-speed scanning system for on-machine process control. |
| OSP60(probe) | Analogue scanning probe for machine tools, capable of both 3D scanning and 3D discrete point measurements. |
| Transmission type | Infrared optical transmission: up to 1000 3d points per second |
| Compatible interfaces | OSI-S (interface),OMM-S (receiver) |
| Operating range | 360°. Up to 4.5m (14.7 ft) with one receiver, or up to 9 m (29.5 ft) with two receivers. |
| Probe turn on time | Less than 0.5 seconds |
| Recommended styli | Straight styli only. OSP60-specific styli recommended. For further information, see the information leaflet Styli recommendations for OSP60 scanning probes (Renishaw part no. H-5465-8102). |
| Stylus length range | 75 mm to 150 mm (2.95 in to 5.91 in) recommended. |
| Stylus ball diameter range | 2mm to 8 mm (0.078 in to 0.31 in) typical. |
| Weight without shank (including batteries) | 1080 g(38.1 oz) |
| Recommended battery type | 3x CR123 3 V Lithium-manganese dioxide |
| Scanning measurement range (see note 1) | ±X,±Y,±Z 0.50mm(0.020 in) |
| Sensor type | Full 3D (simultaneous XYZ data output) |
| Sense directions | Omnidirectional±X,±Y,±Z. |
| Sensor resolution (μm/ digit) (see note 3) | XY 0.025 μm (0.9843μin);Z 0.004 μm (0.1575μin) |
| Maximum scanning speed | Up to rapid (G0) feedrate dependent on machine tool performance and application. |
