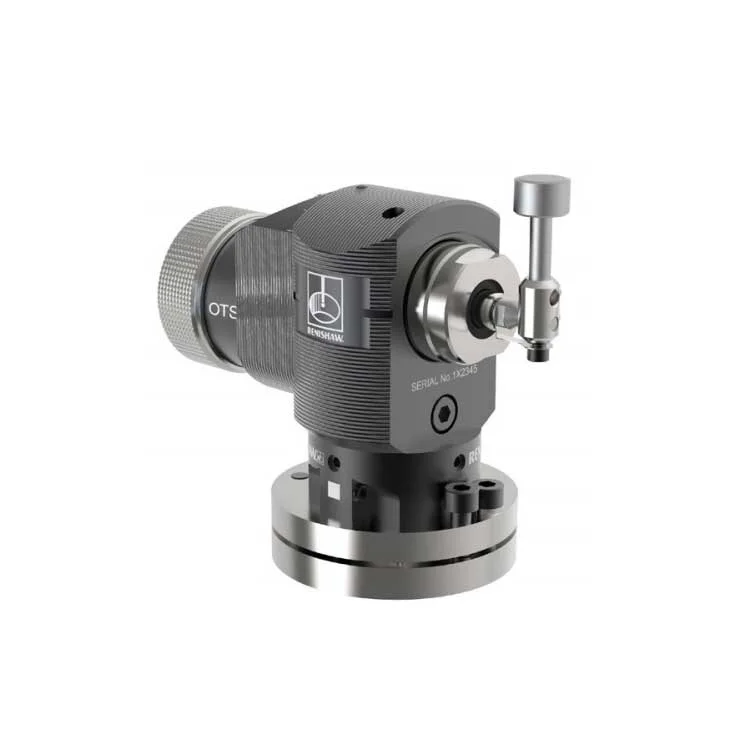

RENISHAW OTS

Name: RENISHAW OTS
Brand: Renishaw

Compact 3D touch-trigger tool setter with optical signal transmission used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools.
Compatible with Renishaw optical modulated receivers.

Brand：Renishaw

Minimum：1

info@wxfagor.com

Message

RENISHAW OSP60 PROBE

RENISHAW PARTIAL ARC OPTICAL ENCODERS

Product details

KEY FEATURES AND BENEFITS

Proven kinematic design
Exceptional resistance to light interference with modulated transmission
Direction adjustable infrared optical module
Cable-free for unrestricted machine movement and ease of installation
1.00 µm 2σ repeatability

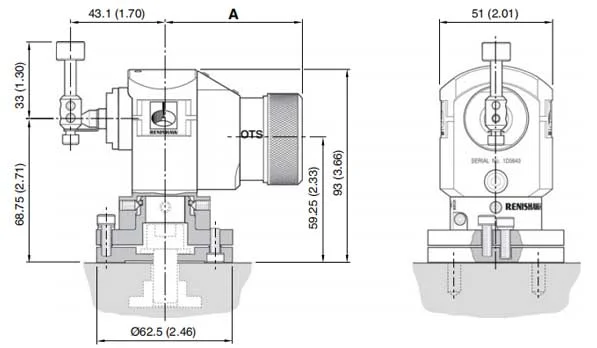

DIMENSIONS

Dimensions given in mm (in)

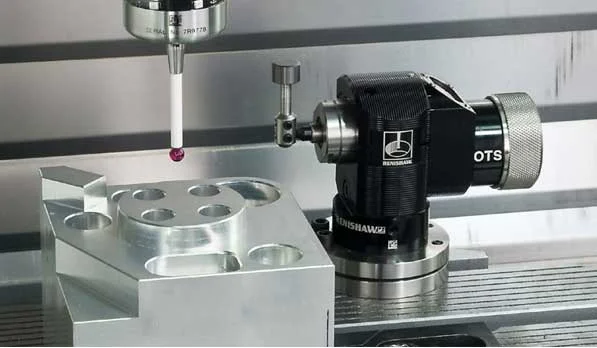

PRODUCT SHOW

OTS SPECIFICATION

Variant		½ AA OTS	AA OTS
Principal application		Tool measuring and broken tool detection on small to medium machine centres.
Transmission type		Infrared optical transmission (modulated)
Compatible interfaces		OMI-2, OMI-2T, OMI-2H,OMM-2C, OMI-2C and OSI /OMM-2
Operating range		Up to 5m (16.4 ft)
Recommended styli		Disc stylus(tungsten carbide, 75 Rockwell C) or Square tip stylus(ceramic tip,75 Rockwell C)
Weight with disc stylus (including batteries)		870g(30.69 oz)	950g(33.51 oz)
Switch-on/ switch-off options		Optical on--- Optical off Optical on---Timer off
Battery life (2×½ AA or AA 3.6 V Lithium-thionyl chloride)	Standby life	310 days	730 days
	Continuous use	400 hours	800 hours
Sense directions		±X,±Y,+Z
Unidirectional repeatability		1.00μm(40μin) 2σ(see note 1)
Stylus trigger force (see notes 2 and 3)		1.30 N to 2.40N, 133 gf to 245 gf (4.68 ozf to 8.63 ozf) depending on sense direction
Sealing		IPX8 (EN/IEC 60529)
Mounting		M12 (1/2 in) T bolt(not supplied) Optional Spirol pins to allow accurate remounting (supplied)
Operating temperature		+5℃ to +55 ℃(+41°F to+131 ℉)
