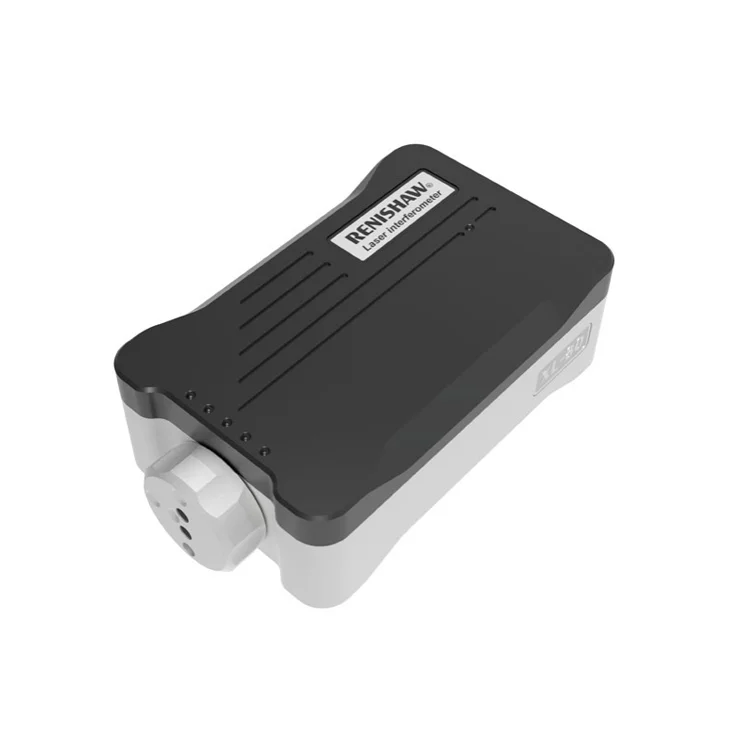

XL-80 LASER MEASUREMENT SYSTEM
Renishaw’s laser interferometer systems are used for comprehensive accuracy assessment of machine tools, coordinate measuring machines (CMMs) and other critical motion systems . The XL-80 laser produces an extremely stable laser beam with a wavelength that is traceable back to national and international standards . Laser interferometers are widely regarded as the ultimate in measurement systems
Product details
KEY FEATURES AND BENEFITS
0 .5 ppm accuracy traceable to national standards
Measures linear, angular and straightness errors on linear axes
Combined with the XR20-W rotary axis calibrator, it can determine angular errors on rotary axes
Provides data for error compensation and machine correction
Provides the ultimate verification of machine performance for machine tool builders and end users worldwide
XL-80 SPECIFICATION
| Measurement | Accuracy | Resolution | Range |
| Linear | ±0.5 ppm | 0.001 μm | 0 m to 80 m |
| Angular | ±0.002A ±0.5 ±0.1M μrad | 0.1 μm/m | 0 m to 15 m |
| ±0.0002A ±0.5 ±0.1M μrad (calibrated) | |||
| Straightness (Short Range) (Long Range) | ±0.005A ±0.5 ±0.15 M² μm ±0.025A ±5 ±0.015 M² μm | 0.01 μm 0.1 μm | 0.1 m to 4.0 m 1 m to 30 m |
| Rotary | Up to ±1 arcsec (at 20 °C) | 0.1 arcsec | Up to 25 revolutions |
| Flatness | ±0.002A ±0.02 M² μm | 0.01 μm | 0 m to 15 m |
| Squareness (Short Range) (Long Range) | ±0.005A ±2.5 ±0.8 M μrad ±0.025A ±2.5 ±0.08 M μrad | 0.01 μm/m | ±3/M mm/m |
A = displayed error reading
M = measurement distance in metres
F = measurement distance in feet
