TSI 3 AND TSI 3-C INTERFACES

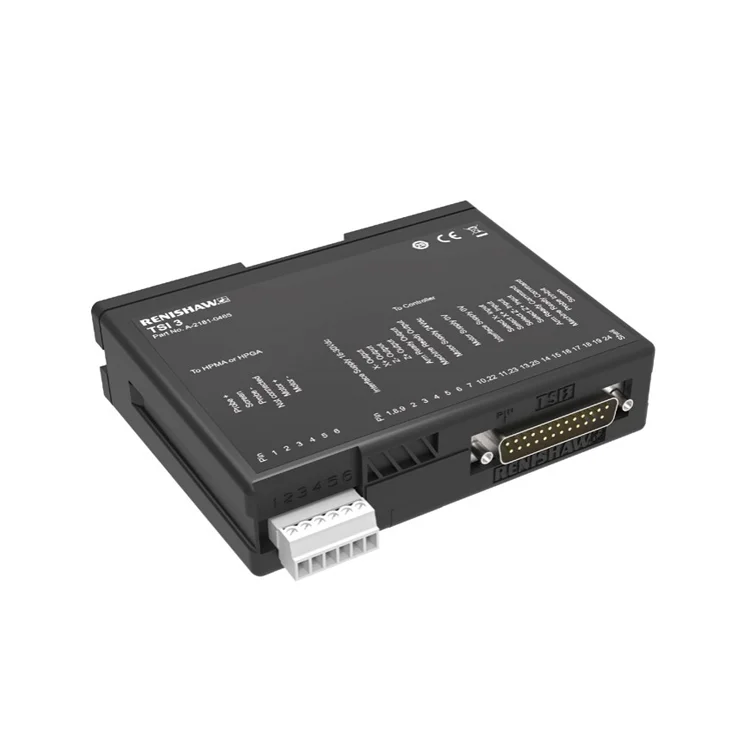

The TSI 3 and TSI 3-C interfaces process signals between the motorised HPMA and HPGA tool setting arms and the machine tool controller .
The TSI 3 interface is designed to be used with all standard +24 Vdc operated controllers; for example, Fanuc, Siemens .
For controllers that do not operate from standard +24 Vdc power supplies (for example Okuma and HAAS) the TSI 3-C should be used instead . This features configurable solid-state relay (SSR) outputs that are easily integrated into all non +24 V controllers.
The TSI 3 interface is designed to be used with all standard +24 Vdc operated controllers; for example, Fanuc, Siemens .
For controllers that do not operate from standard +24 Vdc power supplies (for example Okuma and HAAS) the TSI 3-C should be used instead . This features configurable solid-state relay (SSR) outputs that are easily integrated into all non +24 V controllers.
Product details
KEY FEATURES AND BENEFITS
DIN rail mounted within the machine tool controller cabinet
‘Easy fit’ location mechanism
SSR output for easy user configuration (TSI 3-C only)
Probe vibration filter reduces false triggers caused by machine vibration

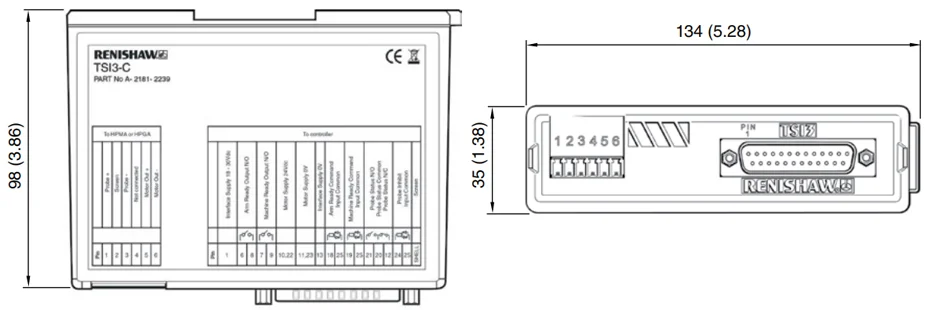

TSI 3 AND TSI 3-C DIMENSIONS
Dimensions given in mm (in)
TSI 3 AND TSI 3-C SPECIFICATION
| Variant | TSI 3 | TSI 3-C | |
| Principal application | The TSI 3 and TSI 3-C interfaces process signals between the motorised HPMA and HPGA tool setting arms and the machine tool controller. | ||
| Transmission type | Hard-wired | ||
| Probes per system | One | ||
| Compatible probes | HPMA and HPGA | ||
| Screen | Connect free end of cable screen to machine ground star point. | ||
| Supply voltage | Interface | 18 Vdc to 30 Vdc | |
| Motor | 24 Vdc + 20% -10% | ||
| Supply current | Interface | Imax=100 mA(not including output loading) | Imax=140 mA |
| Motor | Imax=2.5 A for 4 s (worst case stall) | Imax=2.5 A for 4s(worst case stall) | |
| Output signals | Probe status, Machine Ready, Arm Ready Unipolar active-high (non-configurable). Not TTL compatible. | Probe status Voltage-free solid-state relay (SSR) output, configurable normally open or normally closed, compatible with TTL inputs. Machine Ready, Arm Ready Voltage-free solid-state relay (SSR) output, compatible with TTL inputs. | |
| Input/output protection | Supply protected by fuse. Motor supply protected by resettable fuse. | Supply protected by resettable fuse. Motor supply protected by resettable fuse. Outputs protected by fuses. | |
| Input signal | Inhibit, Arm Ready command Machine Ready command Probe select inputs Internally pulled down (2k4) ACTIVE HIGH | Inhibit, Arm Ready command Machine Ready command Internally pulled down (2k4) ACTIVE HIGH | |
| Standard outputs | Probe status (no complement) Position confirm signals (Machine Ready and Arm Ready) | ||
| Diagnostic LEDs | N/A | Motor state LED Arm state LED | |
| Mounting | DIN rail mounting. | ||
| Operating temperature | “+5 °C to +60 °C (+41 °F to +140 °F) | ||
