RENISHAW ROTARY OPTICAL ENCODER

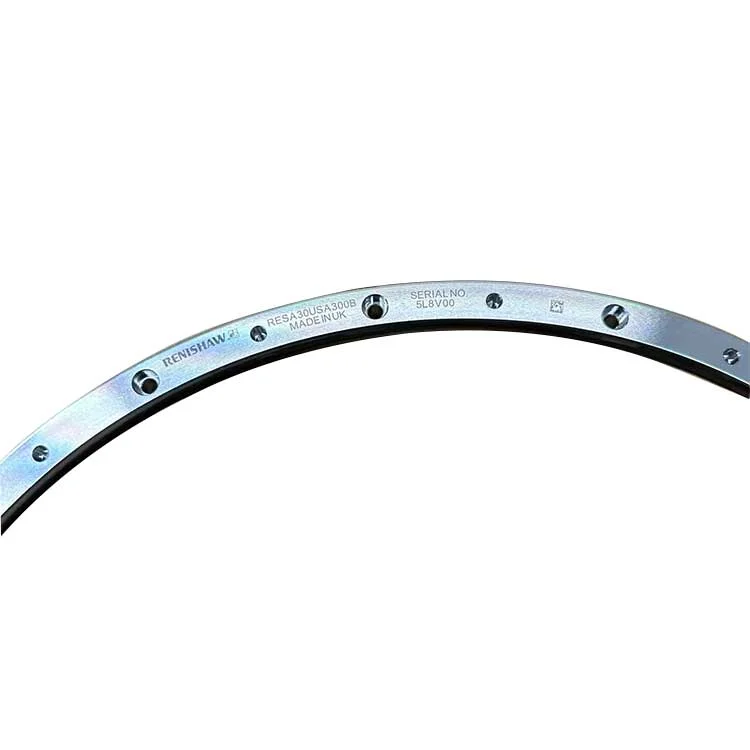

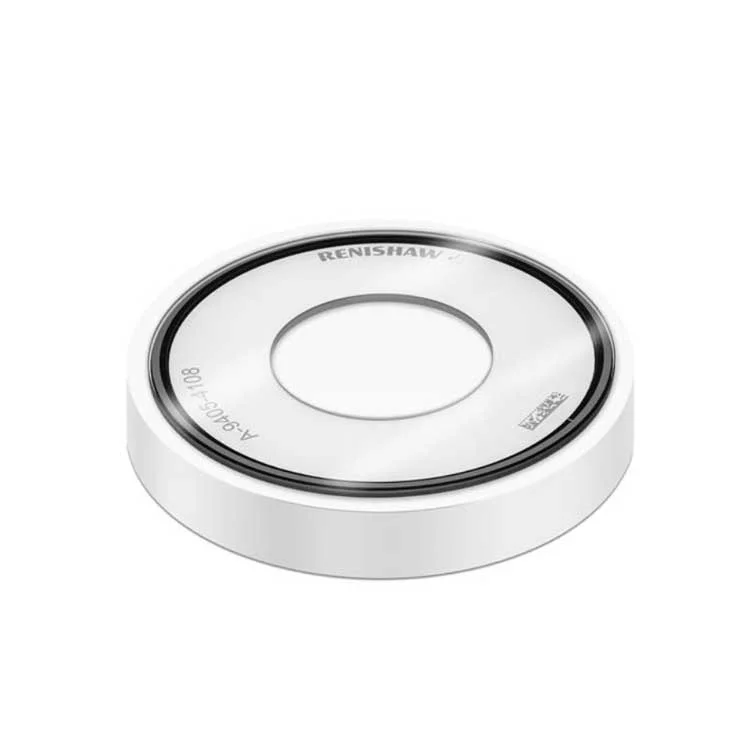

A range of rotary scales, including stainless steel rings and glass and stainless steel discs, are suitable for a wide variety of rotary motion applications. Rotary scale can be mounted to the rotating machine part by mechanical means or glue.
The rotary scales are compatible with Renishaw's open optical encoder series, for either absolute or incremental measurement.
Absolute encoders immediately decode their current position without any motion being required.
Incremental encoders can only detect motion relative to their current position or a known reference feature.
KEY FEATURES AND BENEFITS
1. High Accuracy and Resolution
Delivers sub-arcsecond precision, with resolutions up to 0.0001° (or higher).
Ideal for motion control systems requiring extreme angular accuracy, such as direct-drive rotary tables and high-speed spindles.
2. Non-Contact Measurement Technology
Most models use a non-contact readhead and rotary scale ring design (e.g., RESOLUTE, TONiC series), eliminating mechanical wear and backlash.
Ensures long-term reliability with minimal maintenance.
3. Compact and Flexible Installation
Available in various sizes — from miniature to large-diameter rings — suitable for space-constrained or complex rotary systems.
High installation tolerance allows for easier alignment and setup.
4. Strong Environmental Resistance
Excellent immunity to dust, oil contamination, and magnetic interference — ideal for demanding industrial environments.
SPECIFICATION
Absolute rotary encoder systems: readheads and scales
The diameter for the various combinations of readhead and scale are shown below:
| RES Steel ring scale Low profile Easy-to-install | REX Steel ring scale Thick cross-section High accuracy | |
| RESOLUTE™ readhead (30 µm pitch) High accuracy High speed | 52 to 550 mm | 52 to 417 mm |
Incremental rotary encoder systems: readheads and scales
The diameter for the various combinations of readhead and scale are shown below:
| RCD Glass Disc Scale Thermally stable Light | CENTRUM™ CSF40 Steel Disc Scale Self-centring Easy-to-install | RES Steel Ring Scale Low profile Easy-to-install | REX Steel Ring Scale Thick cross-section High accuracy | |
| ATOM™ Readhead(20 µm, 40 µm pitch)Tiny Analogue | 30 to 108 mm | 31 to 120 mm | N/A | N/A |
| ATOM DX™ Readhead(20 µm, 40 µm pitch)Tiny Digital | 17 to 108 mm | 24 to 120 mm | N/A | N/A |

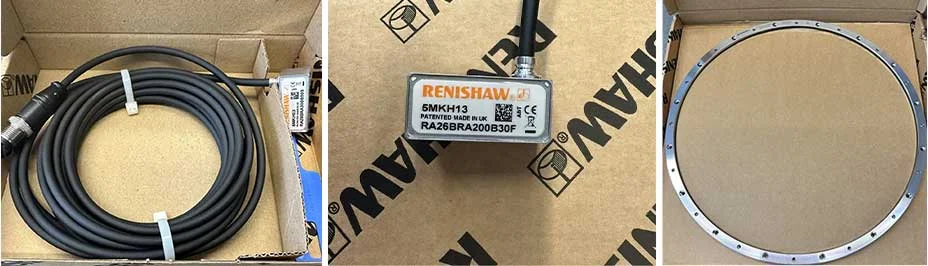

PRODUCT SHOW
Wuxi Fagor can select the appropriate encoder system for your application from a range of rotary encoders provided by Renishaw. Please contact us if you have any needs, we will serve you 24 hours a day
