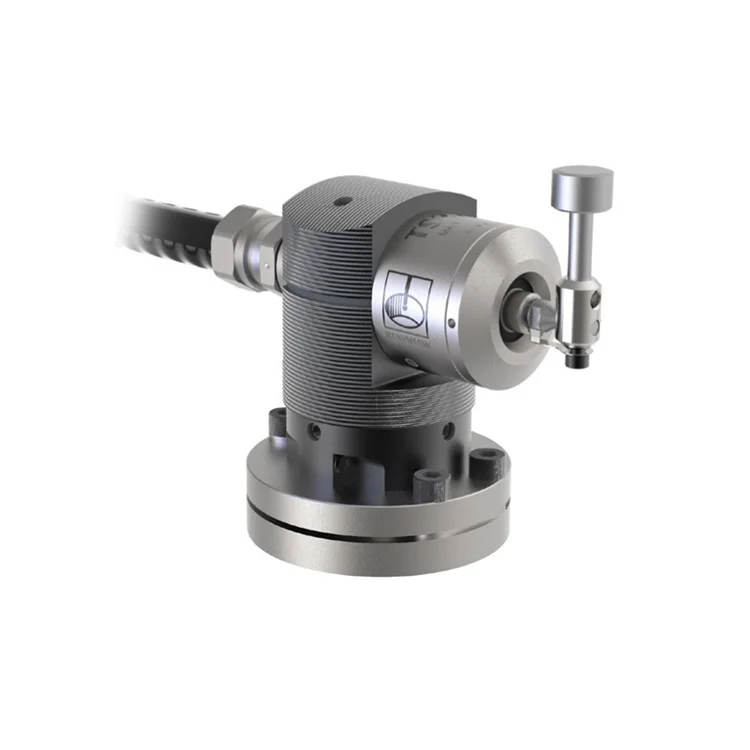

TS27R TOOL SETTER
KEY FEATURES AND BENEFITS
Proven kinematic design
Interference resistant hard-wired communication
Cost effective tool setting for all types of machining centres
1.00 µm 2σ repeatability

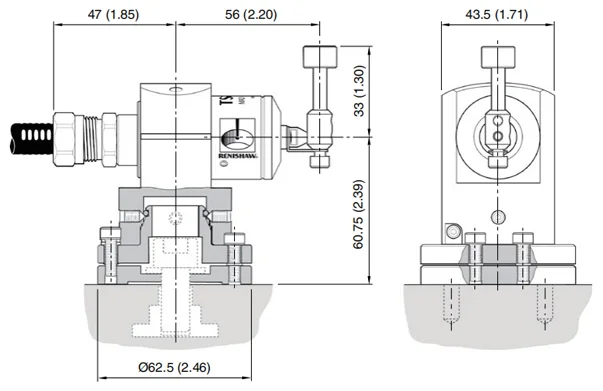

TS27R DIMENSIONS
| Stylus overtravel limits | |
| ±X / ±Y | +Z |
| ±3.5 (0.14) | 6 (0.24) |
Dimensions given in mm (in)

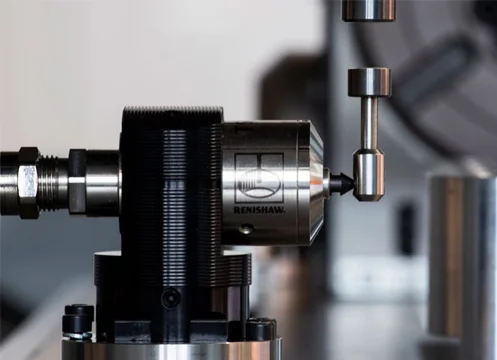

PRODUCT SHOW
TS27R SPECIFICATION
| Principal application | Tool measuring and broken tool detection on all sizes of vertical and horizontal machining centres and all gantry machining centres. | |
| Transmission type | Hard-wired transmission | |
| Compatible interfaces | MI 8-4 or HSI | |
| Recommended styli | Disc stylus (tungsten carbide, 75 Rockwell C) or Square tip stylus (ceramic tip, 75 Rockwell C) | |
| Weight with disc stylus | 1055 g (37.21 oz) | |
| Cable (to interface) | Specification | Ø4.35 mm (0.17 in), 4-core screened cable, each core 7 x 0.2 mm |
| Length | 10 m (32.8 ft) | |
| Electrical connection | Cable on the end of unit | |
| Sense directions | ±X, ±Y, +Z | |
| Unidirectional repeatability | 1.00 μm (40 μin) 2σ (see note 1) | |
| Stylus trigger force(see notes 2 and 3) | 1.30 N to 2.40 N, 133 gf to 245 gf (4.68 ozf to 8.63 ozf) depending on sense direction | |
| Sealing | IPX8 (EN/IEC 60529) | |
| Mounting | M12 (1/2 in) T bolt (not supplied) Optional Spirol pins to allow accurate remounting | |
| Operating temperature | +5 °C to +55 °C (+41 °F to +131 °F) | |
Note 1 Performance specification is tested at a standard test velocity of 480 mm/min (18.9 in/min) with a 35 mm stylus. Significantly higher velocity is possible depending on application requirements.
Note 2 Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on related variables including measuring speed and machine deceleration.
Note 3 These are the factory settings; manual adjustment is not possible.
