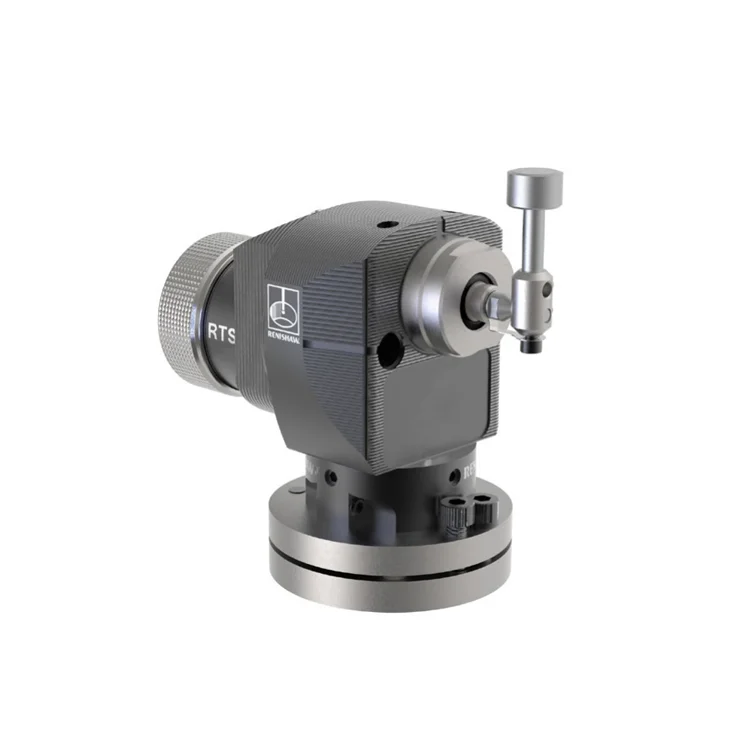

RTS
to achieve.
The RTS offers users broken tool detection and rapid measurement of tool length and diameter on a wide range of tools.
The RTS forms part of Renishaw’s family of radio transmission probes. The cable-free design enables the RTS to be used as a standalone or as part of a multi-probe system allowing use in a wide range of
applications.
KEY FEATURES AND BENEFITS
Proven kinematic design
Secure frequency hopping spread spectrum (FHSS)
Globally recognised 2.4 GHz waveband — compliant with radio regulations in all major markets
Cable-free for unrestricted machine movement and ease of installation
1.00 µm 2σ repeatability

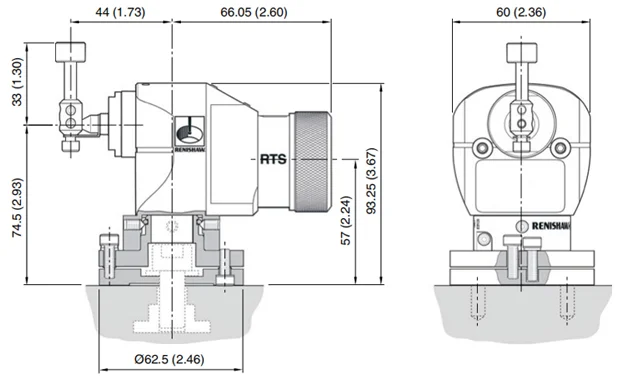

RTS DIMENSIONS
| Stylus overtravel limits | |
| ±X / ±Y | "+Z |
| ±3.5 (0.14) | 6 (0.24) |
Dimensions given in mm (in)
RTS SPECIFICATION
| Principal application | Tool measuring and broken tool detection on vertical and horizontal machining centres and gantry machining centres. | |
| Transmission type | Frequency hopping spread spectrum (FHSS) radio. Radio frequency 2400 MHz to 2483.5 MHz. | |
| Radio approval regions | China, Europe (all countries within the European Union), Japan and USA. For details about other regions, contact Renishaw. | |
| Compatible interfaces | RMI-Q | |
| Operating range | Up to 15 m (49.2 ft) | |
| Recommended styli | Disc stylus (tungsten carbide, 75 Rockwell C) or Square tip stylus (ceramic tip, 75 Rockwell C) | |
| Weight with disc stylus (including batteries) | 870 g (30.69 oz) | |
| Switch-on/switch-off options | Radio on~Radio off | |
| Battery life (2 × AA 3.6 V Lithium-thionyl chloride) | Standby life | 600 days maximum |
| Continuous use | 1600 hours maximum | |
| Sense directions | ±X, ±Y, +Z | |
| Unidirectional repeatability | 1.00 μm (40 μin) 2σ (see note 1) | |
| Stylus trigger force(see notes 2 and 3) | 1.30 N to 2.40 N, 133 gf to 245 gf (4.68 ozf to 8.63 ozf) depending on sense direction | |
| Sealing | IPX8 (EN/IEC 60529) | |
| Mounting | M12 (1/2 in) T bolt (not supplied). Optional Spirol pins to allow accurate remounting. | |
| Operating temperature | +5 °C to +55 °C (+41 °F to +131 °F) | |
Note 1 Performance specification is tested at a standard test velocity of 480 mm/min (18.9 in/min) with a 35 mm stylus. Significantly higher velocity is possible
depending on application requirements.
Note 2 Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the probe triggers. The maximum force applied
will occur after the trigger point (overtravel). The force value depends on related variables including measuring speed and machine deceleration.
Note 3 These are the factory settings; manual adjustment is not possible.
