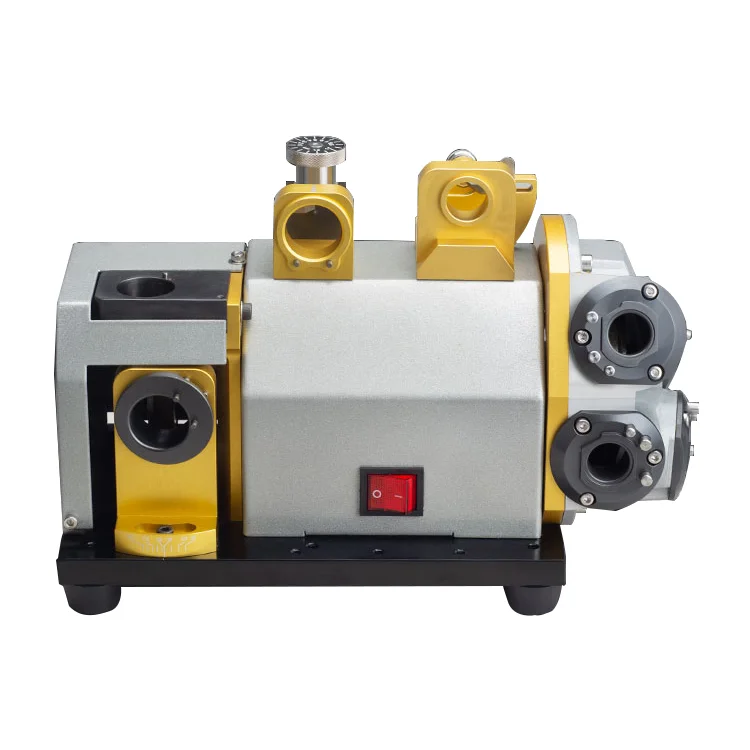

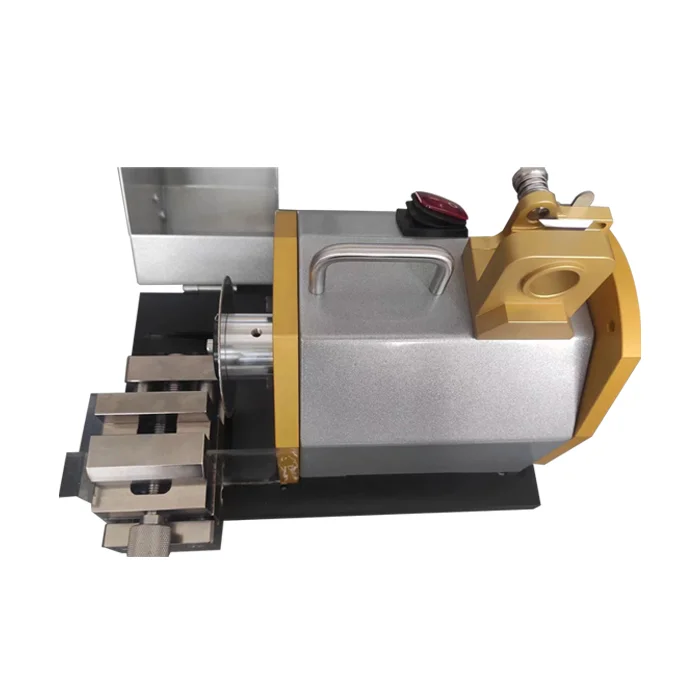

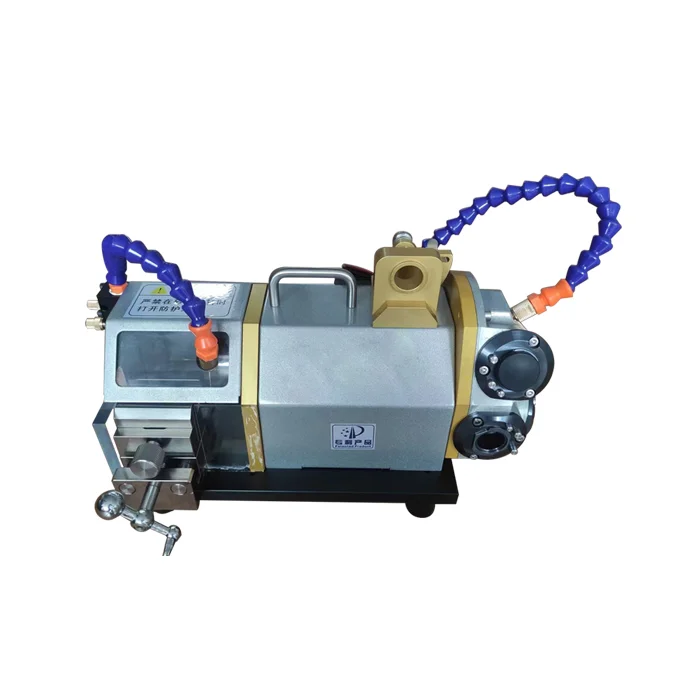

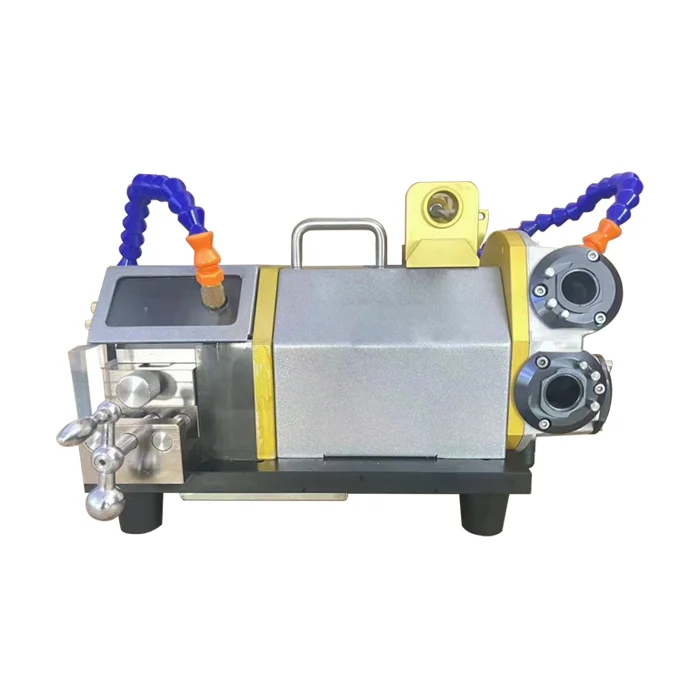

END MILL AND DRILL GRINDER
End Mill And Drill Grinder Machine

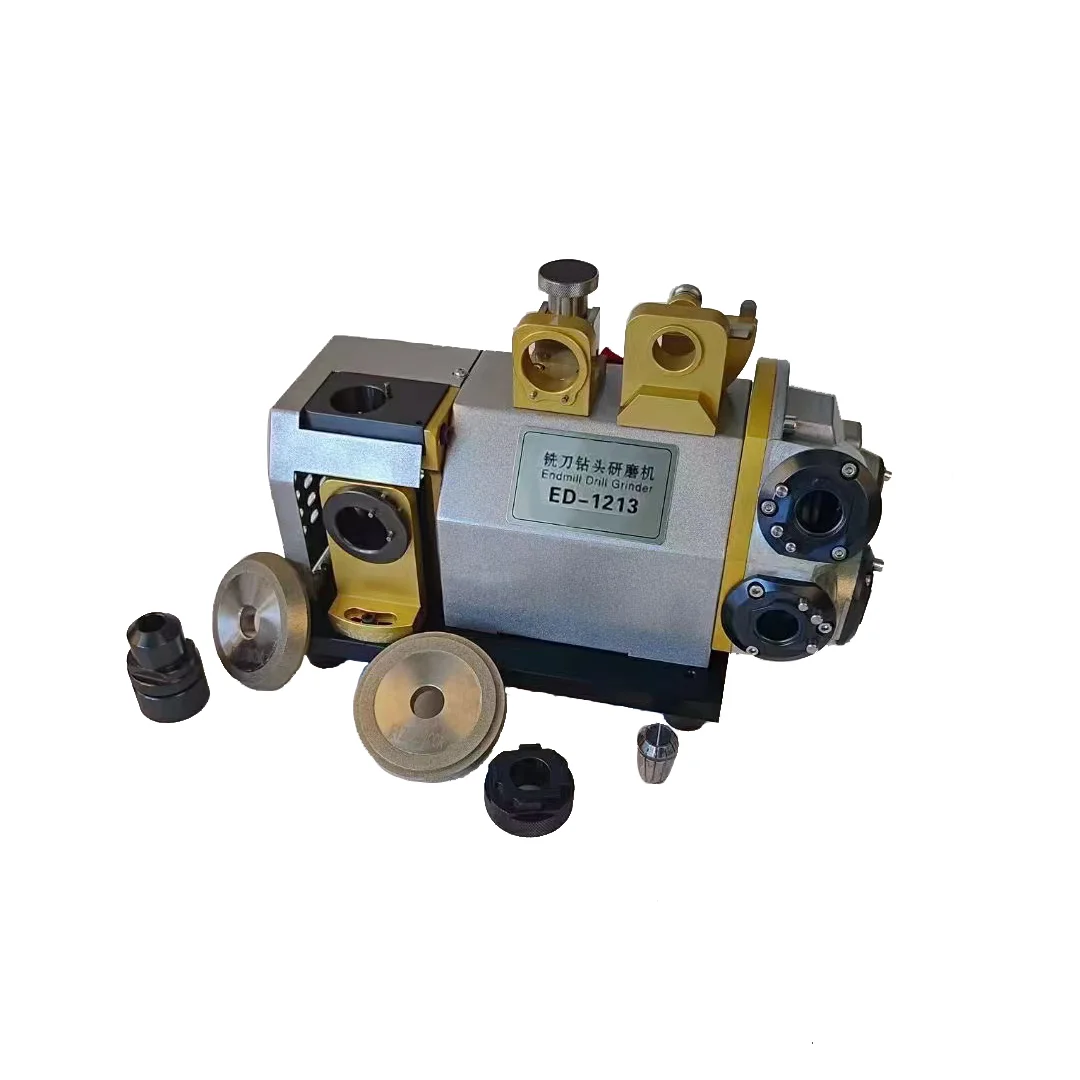

▶ ED-1213/ED-1613
FEATURES
▶ 1.Multi-purpose, can be used for grinding end mill and standard drill.
▶ 2.Accurate and fast, it can be easily grind without skills.
▶ It can grind 2 flutes,3 flutes and 4 flutes end mill which is cemented carbide and high-speed steel.
▶ 3.It can grind blade angle,forward bevel angle and backward bevel angle of end mill.
▶ 4.The precision of the blade will less than 0.01mm after grinding.
▶ 5.Grinding amount can be adjusted arbitrarily to improve the grinding efficiency and the service life of the grinding wheel.
▶ 6.You can adjust the sharpness of end mill according to different cutting materials, which can improve the service life and efficiency of end mill.
▶ 7.It can grind the cutting edge and the transverse edge of standard fried dough twist drill.
▶ 8.It has the function of static point(center point)adjustment to prolong the service life of the drill bit.
PARAMETER
Model | ED-1213/ED-1613 |
Applicable diameter | End mill φ3~12mm/φ3-16mm Drillφ3~13mm |
Applicable flutes | 2 flutes,3 flutes,4 flutes |
Axial angles | 90°~140° |
Grinding wheel | SDC,CBN |
Power | 220V+10％AC |
Rated speed | 5000rpm |
Power | 400W/60Hz |
Dimension | 320*340*410mm |
Weight | 15kg |
ACCESSORIES
Model | Accessories List | Notes |
ED-1213 | 1.Complete machine*1pcs,Power driver*1pcs 2.2 flutes holder*1pcs,3 futes holder*1pcs,4 flutes holder*1pcs 3.φ3,φ4,φ5,φ6,φ8,φ10,φ12 collet*1pcs 4.φ3,φ4-5,φ6-8,φ10-12 gasket*1pcs 5.Hexagonal wrench*1 set, Drill bit jacket*1 set, spring collet*1 set 6.SDC wheel*1pcs, CBN wheel*1pcs | Grinding wheel: SDC wheels used for tungsten carbide tools; CBN wheels used for high-speed steel tools. |
ED-1613 | 1.Complete machine*1pcs,Power driver*1pcs 2.2 flutes holder*1pcs,3 futes holder*1pcs,4 flutes holder*1pcs 3.φ3,φ4,φ5,φ6,φ8,φ10,φ12,φ14,φ16 collet*1pcs 4.φ3,φ4-5,φ6-8,φ10-12,φ14-16 gasket*1pcs 5.Hexagonal wrench*1 set, Drill bit jacket*1 set, spring collet*1 set 6.SDC wheel*1pcs, CBN wheel*1pcs | Grinding wheel: SDC wheels used for tungsten carbide tools; CBN wheels used for high-speed steel tools. |
