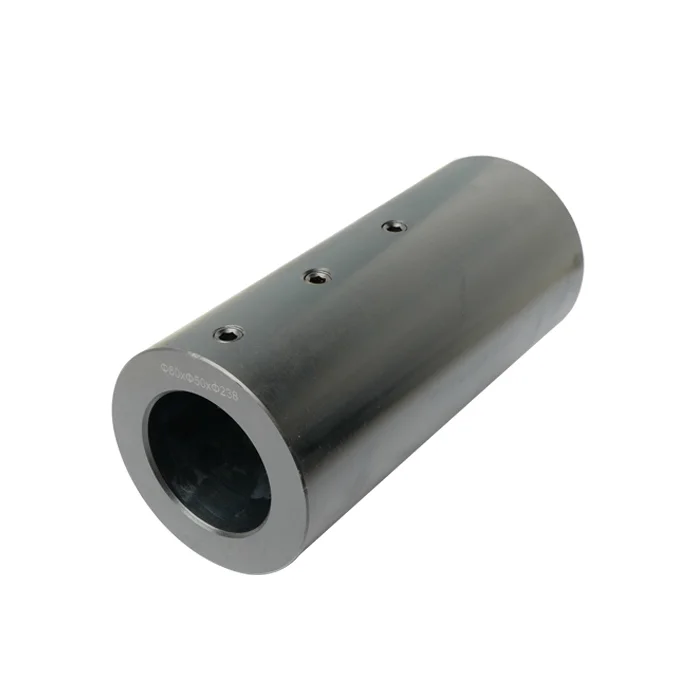

VDI D SERIES BORING CNC TOOL HOLDER (DIN69881)

Product Features

1. Rapid Tool Changes: Designed for quick and efficient tool swapping, reducing machine downtime and boosting productivity.

2. High Precision and Stability: Ensures tools are positioned accurately and remain stable, which is essential for consistent, high-quality machining.

3. Wide Compatibility: Works with various cutting tools and machine tools, making it versatile for different machining applications.

4. Durable Build: Constructed from high-quality materials for robustness, ensuring it withstands wear and tear over prolonged use.

5. Industry Standard Compliance: Meets stringent industry standards, ensuring compatibility with numerous CNC lathes and machining centers worldwide.

6. Strong Clamping Force: Provides a firm grip on tools, preventing slippage and maintaining precision during high-speed or heavy-duty operations.

7. Easy Maintenance: Designed for straightforward maintenance and servicing, which helps lower operational costs and extend the tool holder's lifespan.

Technical Parameter

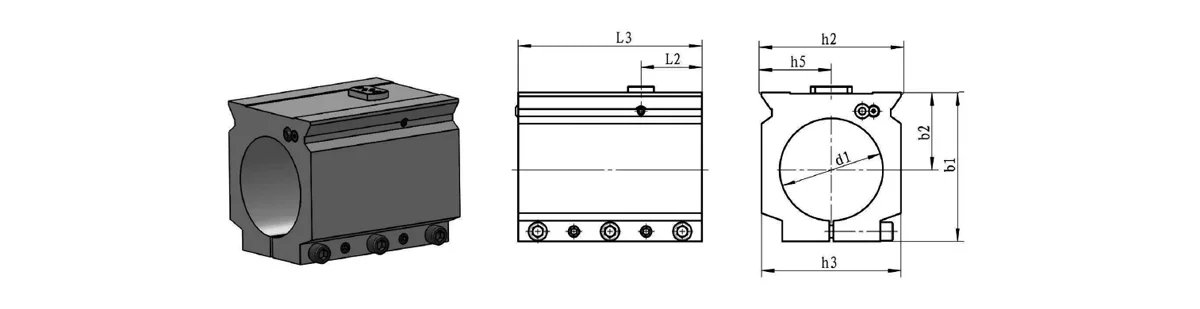

• D1 Boring tool holder,left



  Item No.	H2	D1	B1	B2	H3	H5	L2	L3	Order No.
  D1-56 x 32	56	32	65	30	56	28	31	94	300.350
  D1-56 x 40	56	40	65	30	56	28	31	94	300.400
  D1-72 x 40	72	40	76	35	72	36	39	110	300.360
  D1-72 x 50	72	50	76	35	72	36	39	110	300.410
  D1-90 x 50	90	50	94	45	90	45	39	138	300.370
  D1-90 x 60	90	60	94	45	90	45	39	138	300.420
  D1-115 x 60	115	60	94	45	93	57.5	49	148	300.380
  D1-115 x 80	115	80	115	55	115	57.5	49	148	300.430
  D1-140 x 80	140	80	125	60	115	70	59	178	300.390
  D1-140 x 100	140	100	145	70	140	70	59	178	300.440

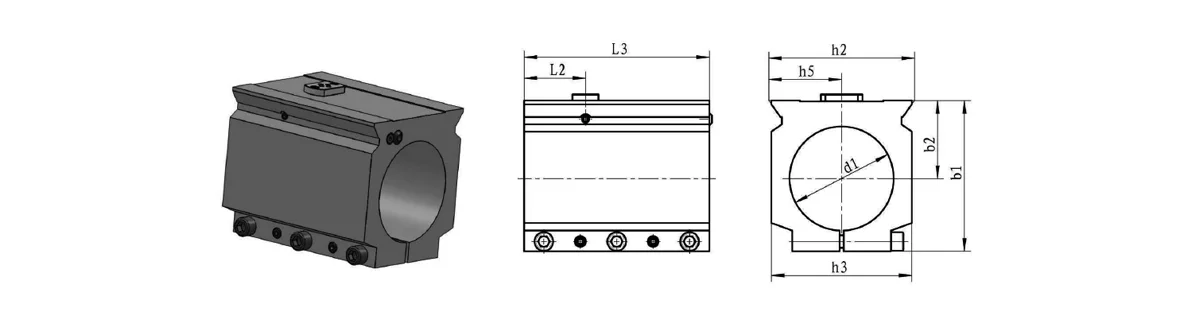

• D2 Boring tool holder,right




  Item No.	H2	D1	B1	B2	H3	H5	L2	L3	Order No.
  D2-56 x 32	56	32	65	30	56	28	31	94	300.351
  D2-56 x 40	56	40	65	30	56	28	31	94	300.401
  D2-72 x 40	72	40	76	35	72	36	39	110	300.361
  D2-72 x 50	72	50	76	35	72	36	39	110	300.411
  D2-90 x 50	90	50	94	45	90	45	39	138	300.371
  D2-90 x 60	90	60	94	45	90	45	39	138	300.421
  D2-115 x 60	115	60	94	45	93	57.5	49	148	300.381
  D2-115 x 80	115	80	115	55	115	57.5	49	148	300.431
  D2-140 x 80	140	80	125	60	115	70	59	178	300.391
  D2-140 x 100	140	100	145	70	140	70	59	178	300.441

  Note:Special dimensions on requirement

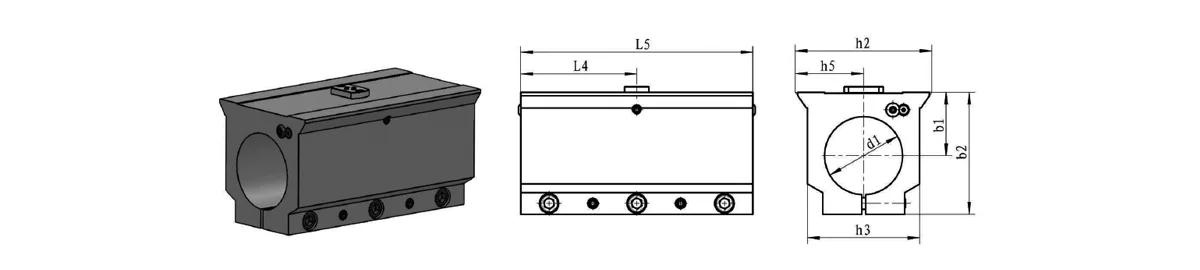

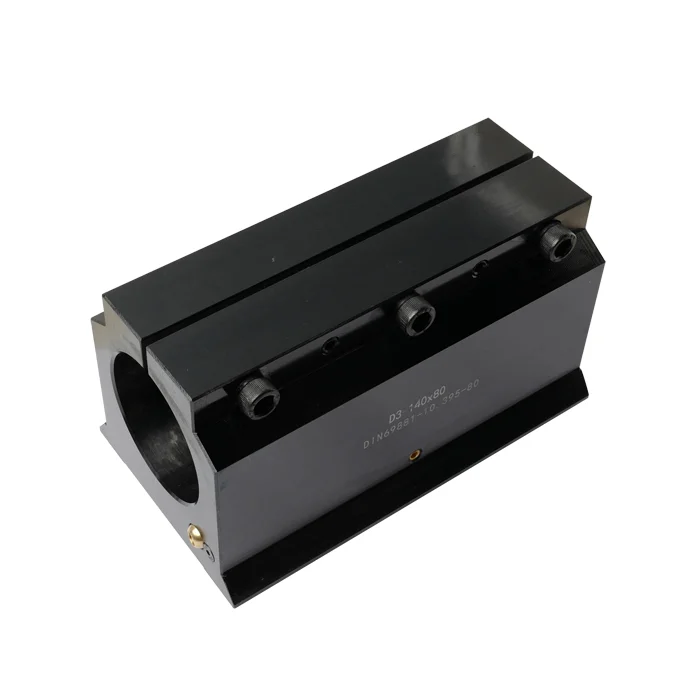

• D3 side lock adaptor toolholder



  Item No.	H2	D1	B1	B2	H3	H5	L2	L3	Order No.
  D3-56 x 32	56	32	65	30	56	28	59	118	300.450
  D3-56 x 40	56	40	65	30	56	28	59	118	300.500
  D3-72 x 40	72	40	76	35	72	36	75	150	300.460
  D3-72 x 50	72	50	76	35	72	36	75	150	300.510
  D3-90 x 50	90	50	94	45	90	45	99	198	300.470
  D3-90 x 60	90	60	94	45	90	45	99	198	300.520
  D3-115 x 60	115	60	94	45	93	57.5	99	198	300.480
  D3-115 x 80	115	80	115	55	115	57.5	99	198	300.530
  D3-140 x 80	140	80	125	60	115	70	119	238	300.490
  D3-140 x 100	140	100	145	70	140	70	119	238	300.540
