What Is a CNC Coupling?

A CNC coupling is a mechanical connection element used to connect two shafts together, transmitting torque while compensating for shaft misalignment.

In CNC machines, couplings play a vital role in ensuring precise motion transmission between the servo motor and the ball screw or spindle.
They not only improve positioning accuracy but also effectively reduce vibration, eliminate backlash, and minimize mechanical stress — ensuring stable performance during high-precision machining.

What are the different types of coupling?

Common Types of CNC Machine Couplings

(1) Rigid Coupling

Rigid couplings are mainly used for torque transmission. They feature a simple structure and are easy to install.
Typical types include keyed couplings and pin couplings:

Keyed coupling – connects two shafts using a key.

Pin coupling – connects shafts using pins.

Rigid couplings are suitable for applications with small loads and minimal misalignment.

(2) Flexible Coupling

Flexible couplings offer excellent vibration damping, buffering, and misalignment compensation.
They are widely used in high-speed, heavy-load applications with significant axial or angular displacement.
Common types include diaphragm couplings, gear couplings, and oldham/sliding block couplings.

Diaphragm Coupling – made of stainless steel diaphragms, offering high flexibility and suitable for high-speed, high-torque conditions.

Gear Coupling – transmits torque through gear meshing, featuring a compact structure, high torque capacity, and long service life.

Oldham (Cross-Slider) Coupling – connects shafts through a sliding block; simple structure, low cost, and easy installation.

(3) Non-Flexible Coupling

Non-flexible couplings are designed to transmit torque and axial force but are only suitable for small axial loads.
Typical examples include sleeve couplings and universal couplings.

Sleeve Coupling – connects two shafts using a cylindrical sleeve; simple, reliable, and easy to install.

Universal Coupling – offers excellent angular misalignment compensation; suitable for systems with large angle variations.

Applications of CNC Couplings

CNC couplings are widely used in:CNC Lathes;Machining Centers;Servo Motor and Stepper Motor Systems;Precision Measuring and Positioning Devices;Automation and Robotic Transmission Systems

They are key components for achieving precise motion transmission and efficient machining.

Main Features of CNC Couplings

High Torque Transmission – ensures stable and efficient power transfer.

Vibration and Shock Absorption – flexible couplings effectively reduce system vibration and noise.

Compensation for Misalignment – can offset axial, angular, or parallel misalignment caused by installation or operation.

Simple Structure – easy to install and maintain.

Cost-Effective – relatively low production cost compared with other precision drive components.

How to Choose the Right CNC Coupling

When selecting a coupling, consider:

Machine load characteristics – choose the right type according to torque and motion requirements.

Operating speed – ensure the coupling supports high-speed operation if necessary.

Installation space – select a compact structure if space is limited.

Maintenance – prefer couplings that are easy to install and maintain.

Durability – choose reliable, long-life products.

Fagor Technology’s engineering team can provide professional selection guidance to ensure optimal transmission performance and system reliability.

Fagor Technology — Your Trusted CNC Coupling Supplier

We supply a wide range of high-performance CNC couplings, designed for various machine transmission applications:

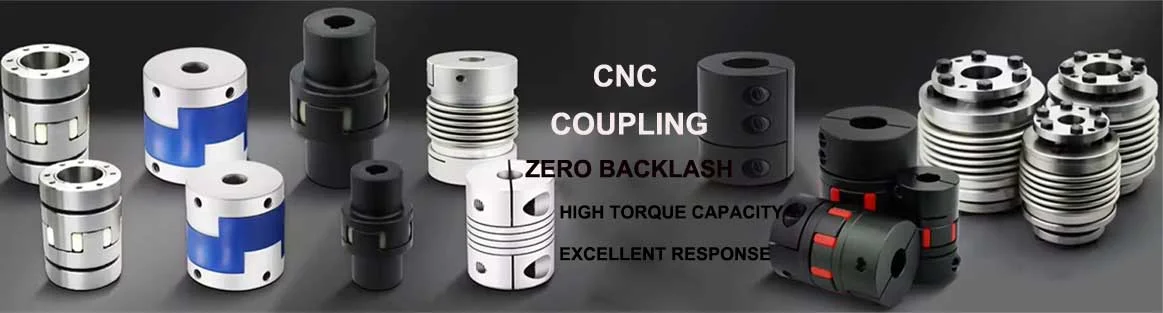

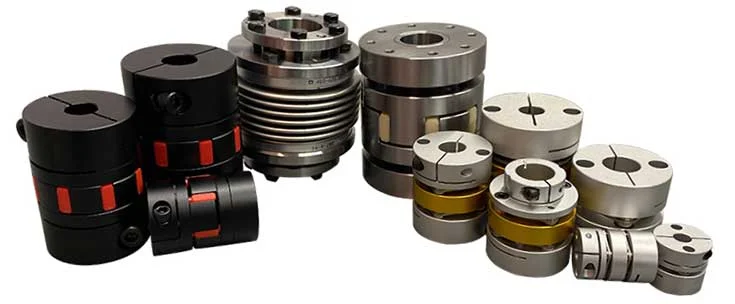

(1) Plum Coupling (Jaw Coupling / Elastic Coupling)

Also known as spider coupling or elastomer coupling.
Composed of two metal hubs and a middle elastomer insert (rubber or polyurethane spider).
Provides excellent vibration absorption, simple structure, and easy installation.
Applications: Servo motor to ball screw connection.
Features: Compact design, good cushioning, easy maintenance, cost-effective.

(2) Diaphragm Coupling (Disc Coupling)

Transmits torque via thin stainless-steel diaphragms with inherent flexibility.
Delivers high torque and zero-backlash transmission, ideal for high-speed, high-precision CNC machines.
Features: High rigidity, maintenance-free, fatigue-resistant, no clearance.
Types: Single-disc and double-disc designs for different loads.

(3) Bellows Coupling

Made of stainless steel bellows that compensate for angular and axial misalignment.
Offers very high torsional rigidity — perfect for servo drives, encoders, and precision positioning systems.
Features: High precision, corrosion-resistant, long service life, maintenance-free.
Applications: High-accuracy transmission and measurement systems.

Which Type of Coupling Is Better?

There is no single “best” coupling — the ideal choice depends on the application and operating conditions.
Key factors include:Required torque and speed;Installation space;Allowable misalignment;Precision requirements;Vibration and impact levels

Selection Recommendations:

General transmission systems: Plum (Jaw) Coupling – good damping, easy installation.

High-speed and high-precision systems: Diaphragm Coupling – zero backlash, high rigidity.

Precision servo positioning systems: Bellows Coupling – highest accuracy, fast response.

Why Are Flexible Couplings Important in CNC Machines?

CNC systems require extremely high motion accuracy; therefore, flexible couplings are commonly used.
They transmit torque while compensating for minor axial, angular, or radial deviations and reducing vibration.

Main Advantages:Compensates for shaft misalignment (angular, parallel, axial);Reduces bearing and component loads;Absorbs vibration for smoother operation;Extends machine and tool life;Improves system reliability and machining accuracy.

In CNC machine tools, couplings are essential components of the drive system.Proper selection and configuration are crucial for ensuring stable operation and efficient machining.
