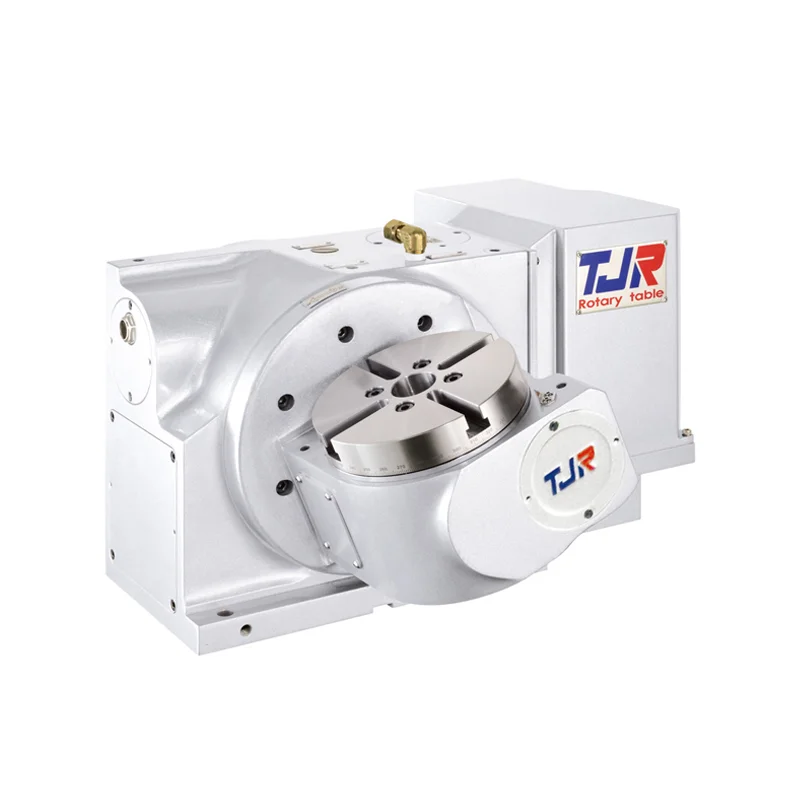

FAR(s)-160SN-RC255 ROTARY TABLE
FAR Series( Pneumatic / Hydraulic Brake )

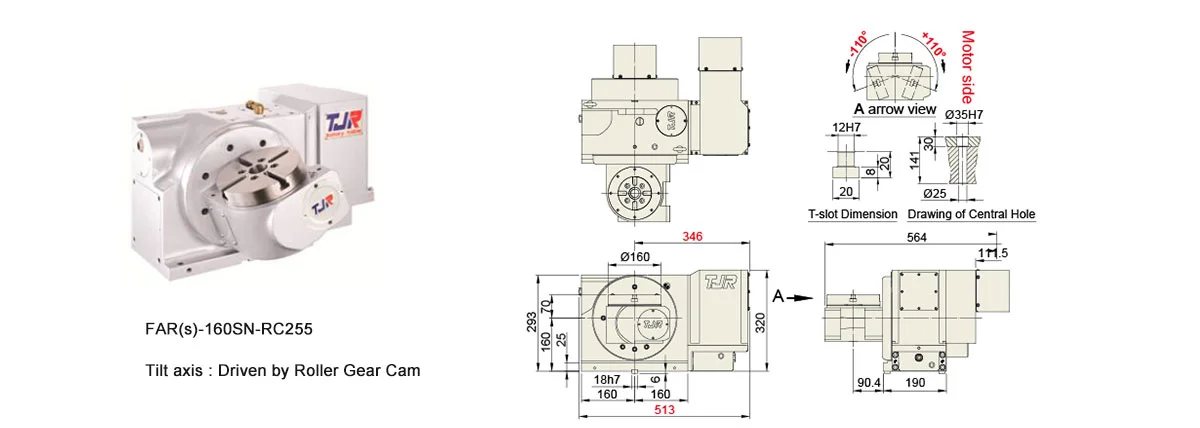

Tilt axis : Driven by Roller Gear Cam
FAR(s)-160SN-RC255 / 170A-RC210(H)
FAR(s)-170-RC210(H) / 210-RC210(H)
Tilt axis : Driven by Roller Gear Cam
FAR(s)-160SN-RC255 / 170A-RC210(H)
FAR(s)-170-RC210(H) / 210-RC210(H)
Product details
FAR(s)-160SN-RC255(H)
F: Dual-Axis
AR: HR: 0.001° Rotary Table (Hydraulic brake)
AR: 0.001° Rotary Table (Pneumatic brake)
(s) : Alloy steel worm and gear series
160: Table Diameter
S: S: Single arm type
C: Cradle type
N: L: Extended type
N: Reduced sheet metal version
RC255: Tilting axis: driven by roller gear cam
(H): Tilting axis: Hydraulic brake
Dimension
Parameter
| Item/Model | Unit | FAR(s)-100SN/FAR(s)-160SN(single-arm type) | ||
| Table Diameter | mm | Ø 100 / Ø 160 | ||
| Diameter of Table Central Hole | mm | Ø 35H7x30 deep | ||
| Inner Diameter of Mandrel Sleeve | mm | _ | ||
| Diameter of Center Through Hole | mm | Ø25 | ||
| Table Height (Horizontal) | mm | 230 | ||
| Table T-slot Width | mm | 12H7 | ||
| Guide Block Width | mm | 18h7 | ||
| Axis | ‐ | Rotation | Tilt ±110º | |
| Min. Increment | deg. | 0.001 | 0.001 | |
| Indexing Precision | sec. | 40 | 60 | |
| Repeatability | sec. | 4 | 8 | |
| Clamping System (Hydraulic) | kg/cm | Pneumatic 5 | Hydraulic 35 | |
| Clamping Torque | kg-m | 13 | 70 | |
| Servo Motor Model | FANUC | Straight Shaft | αiS4 / ßiS4 | αiF8 / ßiS8 |
| MITSUBISHI | Straight Shaft | HF-KP43JW04-S6 / HG-56 | HF / HG-154 | |
| Speed Reduction Ratio | ‐ | 1：60 | 1：120 | |
| Max. Rotation Rate of Table (Calculate with Fanuc α Motor) | r.p.m | 44.4(33.3) | 16.6(11.1) | |
| Allowable Inertia Load Capacity (Horizontal) | kg.cm.sec | 0.31(Ø100SN) / 0.8(Ø160SN) | ||
| Allowable Workpiece Load | 0º Horizontal | kg | 25 | |
| 0º~90º Tilt | kg | 20 | ||
| Allowable Load(with Rotary Table Clamping) | F | kgf | 600 | |
| FxL | kgf.m | 25 | ||
| FxL | kgf.m | 13 | ||
| Strength of worm gears (Rotary axis) | kg.m | 9*(3.7) | ||
| Net Weight (servo motor excluded) | kg | 116 | ||
