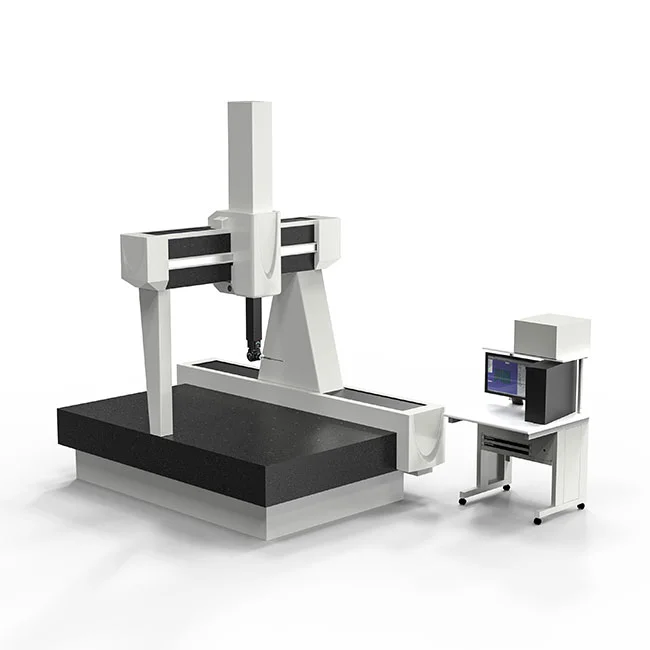

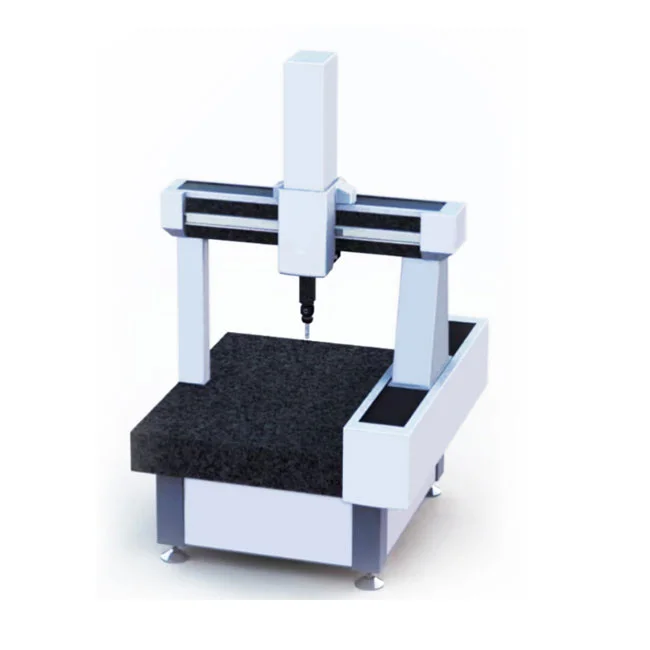

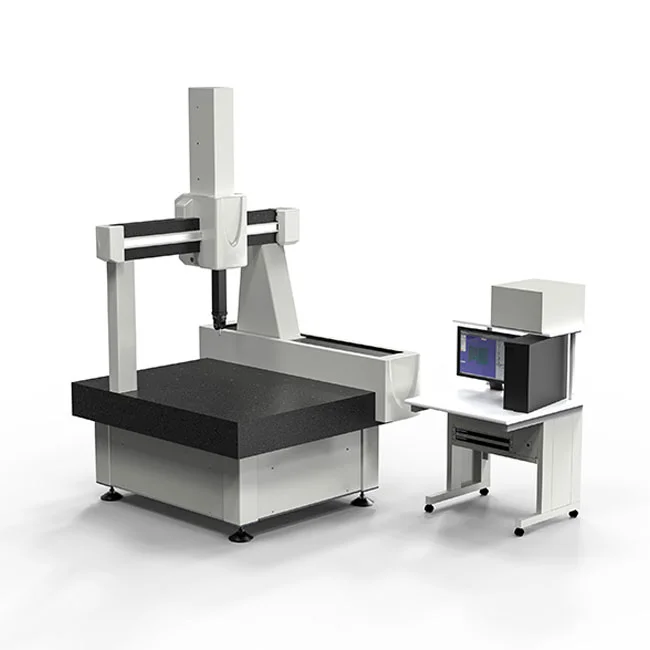

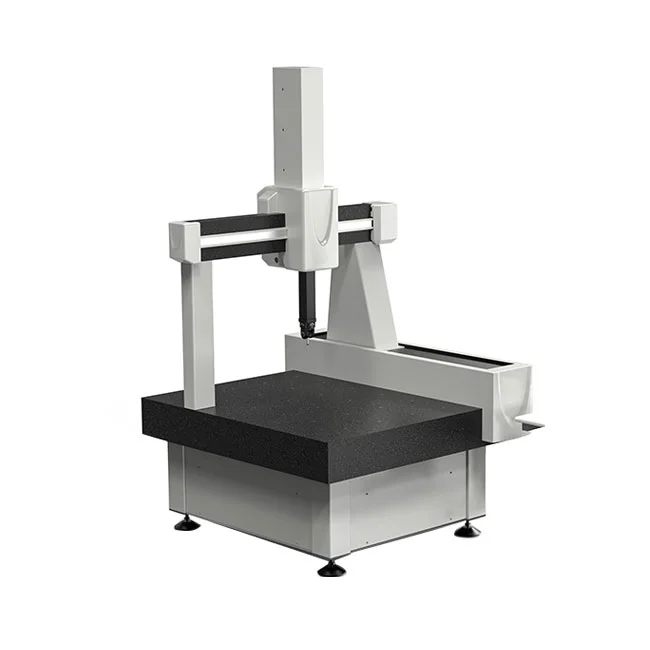

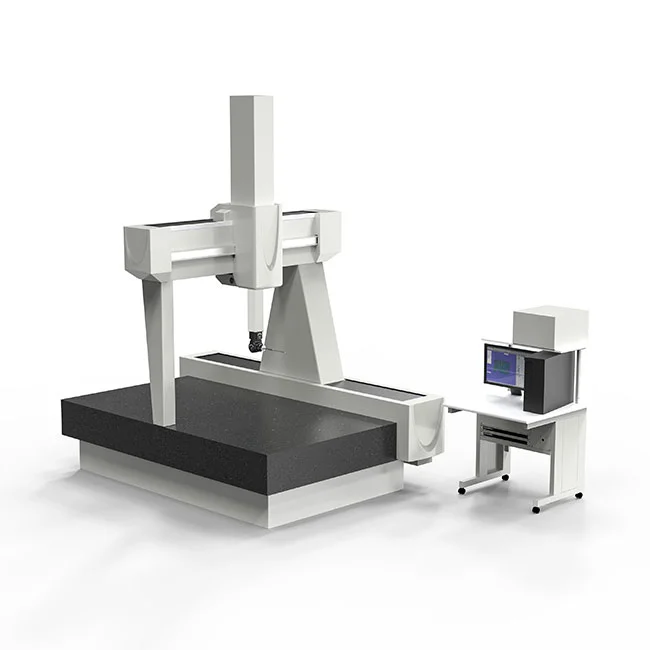

HELIUM SERIES SMALL COORDINATE MEASURING MACHINE

PERFORMANCE CHARACTERISTICS

• Triaxial Rails - Totally Enclosed, All Granite:

On all our machines, we have enclosed guide rails that prevent damage to the rails caused by external dust erosion, contamination and temperature effects. This is especially important for use in harsh environments. All three shafts are made of granite, which is corrosion-resistant and has the exact same thermal expansion coefficient, and the accuracy is more stable!

• Drive system - Frictional "self-correcting" drive:

All three-axis transmission adopts friction transmission, and adopts "self-correction" smooth transmission system. The transmission system adopts the structure of "fixed + micro-suspension" to ensure that it is parallel to the guide rail during transmission! It can maintain the stability of precision and the smoothness of movement while moving at high speed. And it improves the self-protection of the machine tool when it collides, making it safer to use.

TYPICAL APPLICATIONS

• Machining parts and stamping parts

• Dies and electrodes

• Castings and forgings

• Triggered and non-contact detection

• Scanning and reverse engineering

• Automotive engine and transmission parts

• General precision engineering

TECHNICAL PARAMETER

The Helium range is tailored for small and medium products, molds, the electronics industry, and more. The size can be arbitrarily selected according to customer needs.

The small and medium-sized three-coordinates we designed are light and fast, and can be installed quickly without foundation.

3D MEASUREMENT SOFTWARE

PRODUCT SHOW
