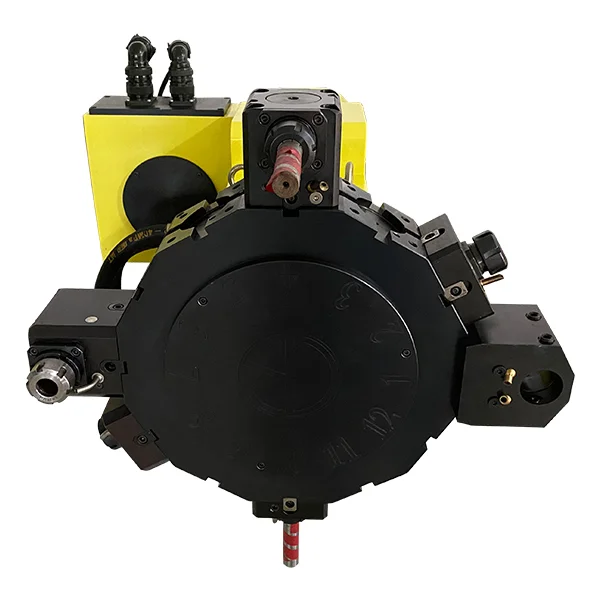

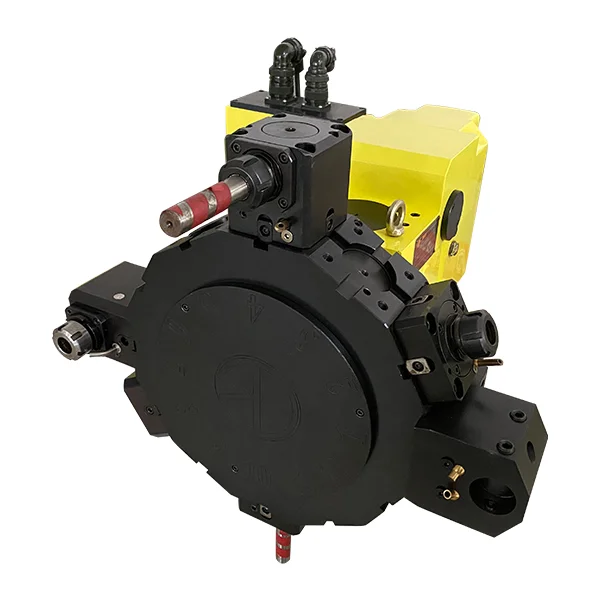

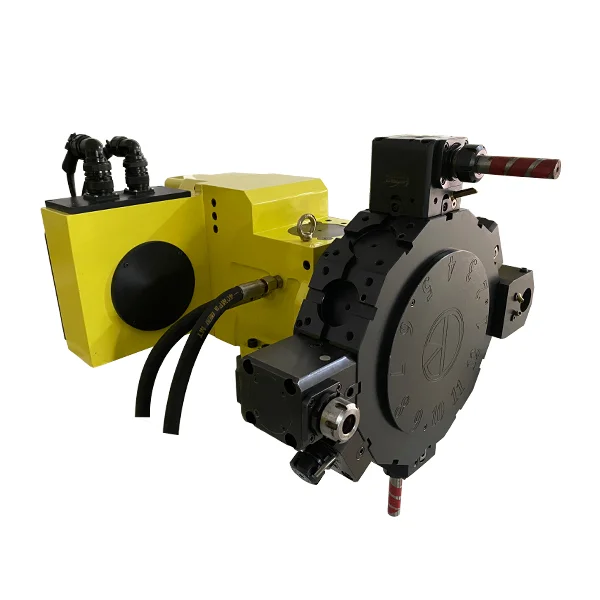

R SERIES RADIAL SERVO POWER TOOLING TURRET
1 Year Warranty!
FEATURE
▶ 1.Taking SLT series servo turret as the platform, external power module is added to compose SLTR series rardial power tooling servo, which has reasonably compact layout.
▶ 2.High-precision triple hirth cou piing and hydraulic clamping devices for loosening ,high indexing accuracy and reliable clamping.
▶ 3.Separate spindle servo motor under simple control provides tool's driving force. Modular interface can adapt to a variety of the spindle motor, whose maximum power up to 11kw.
▶ 4.The BMT driven tool-holder can be fixed to each position of the turret, and it can only be operated at the work position.The tool- holder type is designed to accord with the manufacturer's standards of DOOSAN, and the coupling interface type is designed to accord with the DIN1809 standard.
DIMENSIONS
PARAMETERS
Item | Unit | Model | |||
R63A | R80A | R100A | R125A | ||
Center height | mm | 63 | 80 | 100 | 125 |
Workstation | 12 | 12 | 12 | 12 | |
Power tool speed | rpm | 6000 | 5000 | 4000 | 3500 |
Time for ratation and clamping | sec. | 0.23 | 0.35 | 0.42 | 0.84 |
Time for ratation and clamping | sec. | 0.55 | 0.76 | 0.83 | 1.56 |
Clamping force | kg | 1700 | 2600 | 3500 | 5200 |
Hydraulic working pressure | MPa | 3.5±0.5 | |||
Flow rate | L/min | 18 | 20 | 25 | 30 |
Inertia of transportable masses | kg.m² | 0.5 | 1.5 | 4 | 7 |
Unbalance torque | N.m | 10 | 15 | 40 | 60 |
Indexing accuracy | ±4" | ||||
Accuracy of repeatability | ±1.6" | ||||
Toolholder size | mm | φ40;φ45 | φ45;φ55 | φ55;φ65 | φ65 |
Toolholder type | BMT(Doosan) | ||||
Toolshank coupling | DIN1809 | ||||
Maximum power of motor | kw | 2.2 | 3.7 | 5.5 | 7.5 |
Motor(FANUC) | α1.5/10000i | α2/10000i | α3/10000i | α6/10000i | |
Motor and tool transmission ratio | 1:1 | 1:1 | 1:1 | 1:1 | |
Net weight (With tool disc, | kg | 103 | 120 | 185 | 245 |

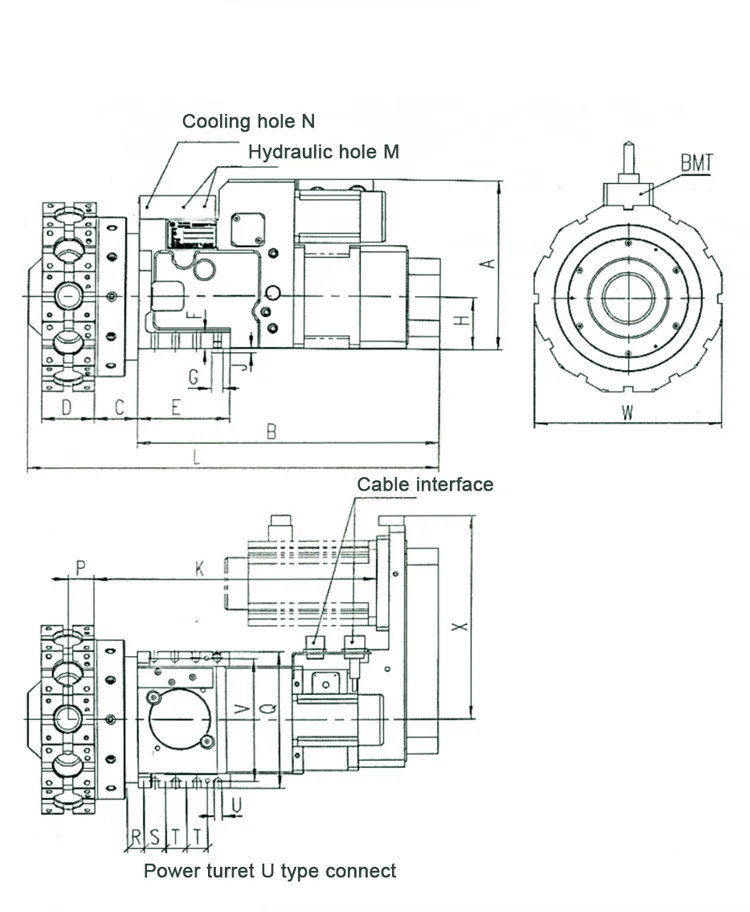

Model | Dimension | |||||||||||
H | BMT | A | B | C | D | E | F | G | J | K | L | |
R63A-U | 63 | 40 | 225 | 385 | 62.5 | 75 | 135 | 20 | φ15 | 7.5 | 372.5 | 547 |
45 | 55 | 90 | 368 | 552 | ||||||||
R80A-U | 80 | 45 | 260 | 455 | 62 | 90 | 140 | 25 | φ17 | 7.5 | 425 | 629 |
55 | 67 | 100 | 430 | 637 | ||||||||
R100-U | 100 | 55 | 300 | 476 | 69 | 100 | 170 | 30 | φ20 | 9 | 450 | 664 |
65 | 511 | 76 | 110 | 473 | 726 | |||||||
R125A-U | 125 | 65 | 330 | 526 | 92 | 110 | 190 | 35 | φ26 | 9 | 504 | 757 |
M | N | P | Q | R | S | T | U | V | X | W | ||
R63A-U | PT1/4 | PT1/4 | 37.5 | 185 | 24 | 30 | 30 | 8-φ11 | 165 | 243 | 240 | |
45 | 290 | |||||||||||
R80A-U | PT1/4 | PT1/4 | 45 | 210 | 25 | 32 | 32 | 8-φ11 | 190 | 313 | 290 | |
50 | 340 | |||||||||||
R100-U | PT3/8 | PT3/8 | 50 | 250 | 34 | 40 | 30 | 8-φ13 | 220 | 320 | 340 | |
55 | 380 | |||||||||||
R125A-U | PT3/8 | PT3/8 | 55 | 310 | 30 | 44 | 43 | 8-φ17 | 280 | 350 | 380 | |

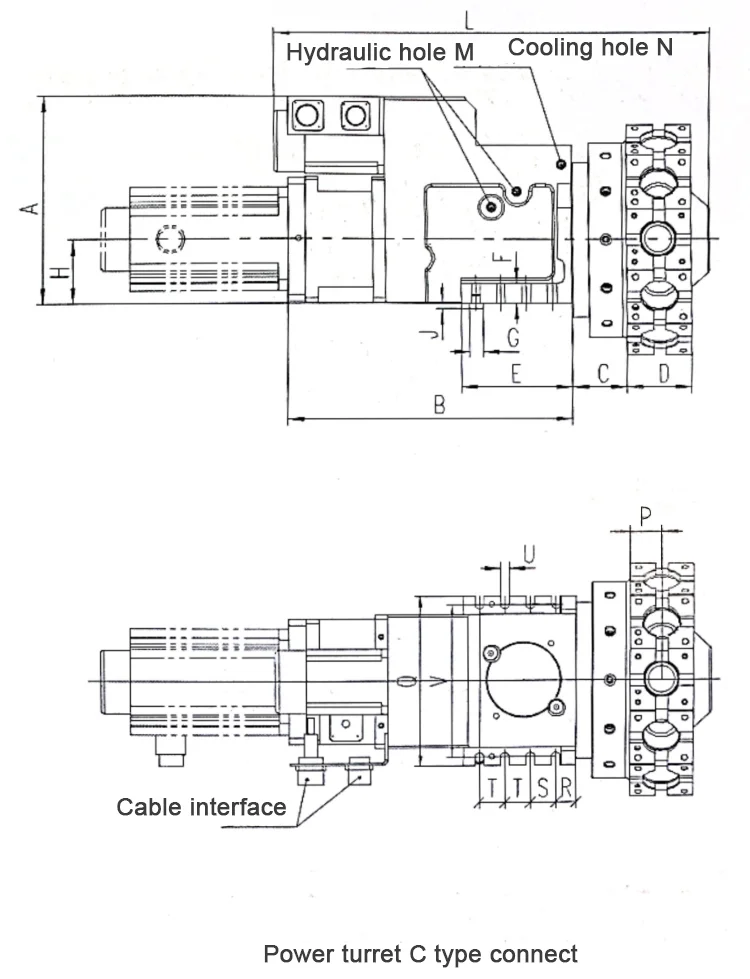

Model | Dimension | ||||||||||
H | BMT | A | B | C | D | E | F | G | J | L | |
R63A-C | 63 | 40 | 225 | 385 | 62.5 | 75 | 135 | 20 | φ15 | 7.5 | 530 |
45 | 55 | 90 | 535 | ||||||||
R80A-C | 80 | 45 | 260 | 455 | 62 | 90 | 140 | 25 | φ17 | 7.5 | 547 |
55 | 67 | 100 | 555 | ||||||||
R100-C | 100 | 55 | 300 | 376 | 69 | 100 | 170 | 30 | φ20 | 9 | 572 |
65 | 383 | 76 | 110 | 603 | |||||||
R125A-C | 125 | 65 | 330 | 492 | 92 | 110 | 190 | 35 | φ26 | 9 | 629 |
M | N | P | Q | R | S | T | U | V | W | ||
R63A-C | PT1/4 | PT1/4 | 37.5 | 185 | 24 | 30 | 30 | 8-φ11 | 165 | 240 | |
45 | 290 | ||||||||||
R80A-C | PT1/4 | PT1/4 | 45 | 210 | 25 | 32 | 32 | 8-φ11 | 190 | 290 | |
50 | 340 | ||||||||||
R100-C | PT3/8 | PT3/8 | 50 | 250 | 34 | 40 | 30 | 8-φ13 | 220 | 340 | |
55 | 380 | ||||||||||
R125A-C | PT3/8 | PT3/8 | 55 | 310 | 30 | 44 | 43 | 8-φ17 | 280 | 380 | |

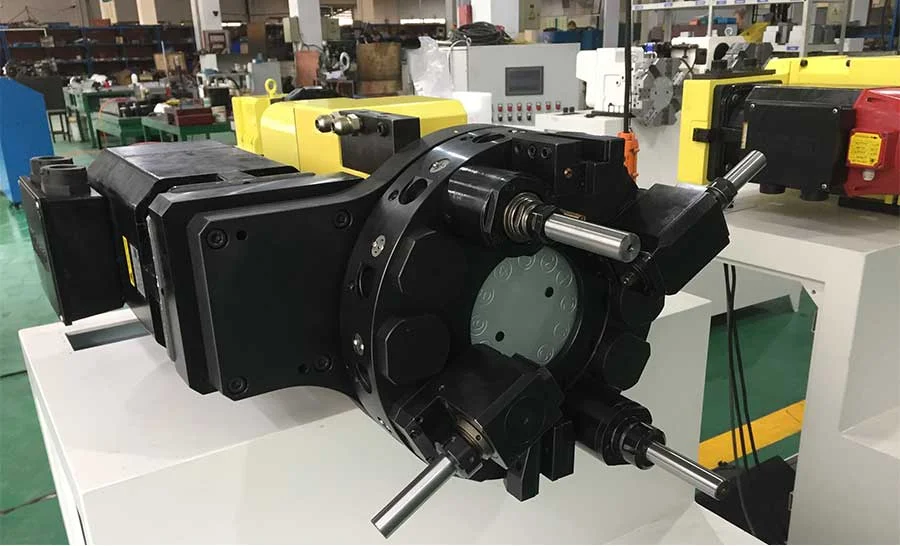

FACTORY SHOW
