XWD SERIES

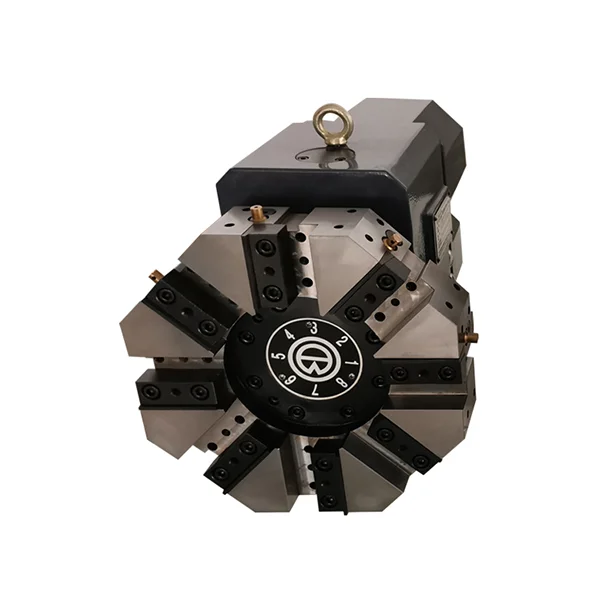

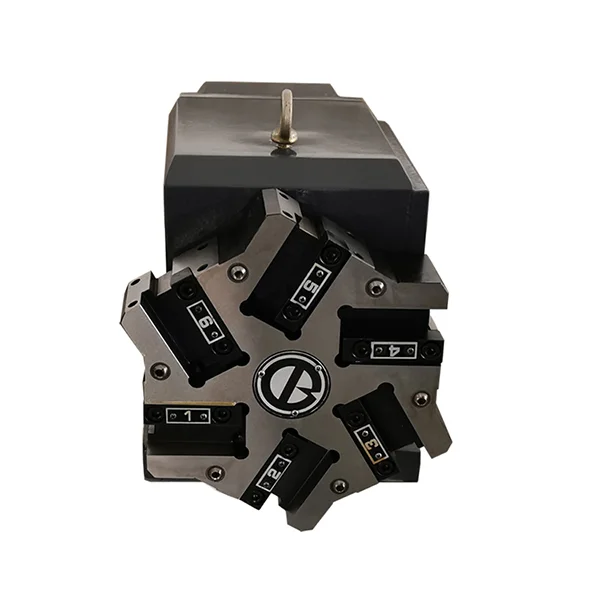

XWD Series
▶ Unidirectional choose tool, non-contact transmitter, gear teeth precise positioning, good lean weight and by big diameter screw threads-camping. Well-sealed motor and with the cutters disc spraying. It suites for all kinds of lathes whose grades is higher than C6132.

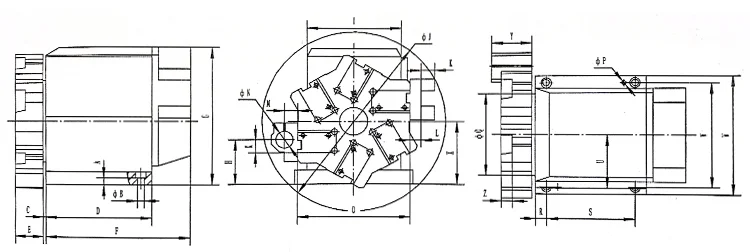

DIMENSION
PARAMETER
Model | Adjacent tool changing time(s) | Farthest tool changing time(s) | The max bias torque (Nm) | Repeatability accuracy(mm) | Indexing accuracy | Motor power(w) | Motor speed (r/min) | Net weight (kg) | ||
6 positions | 8 positions | 6 positions | 8 positions | |||||||
XWD120-6 | 2 | 1.8 | 4 | 4.1 | 30 | ＜0.005 | ±7" | 120 | 1400 | 45 |
XWD130-6 | 2 | 1.8 | 4 | 4.1 | 50 | ＜0.005 | ±7" | 120 | 1400 | 80 |
Model | Dimension | ||||||||||||
H | A | B | C | D | E | F | G | I | J | K | L | M | |
XWD120-6 | 85 | 13 | 13 | 6 | 188 | 55 | 270 | 260 | 176 | 332 | 20 | 17 | 25 |
XWD130-6 | 136 | 18 | 13 | 30 | 192 | 70 | 262 | 278 | 210 | 383 | 32 | 21 | 25 |
N | O | P | Q | R | S | U | V | W | X | Y | Z | ||
XWD120-6 | 32 | 210 | 8 | 155 | 20 | 140 | 100 | 196 | 222 | 120 | 73 | 20 | |
XWD130-6 | 32 | 264 | 8 | 238 | 14 | 164 | 105 | 234 | 260 | 130 | 73 | 32 | |
