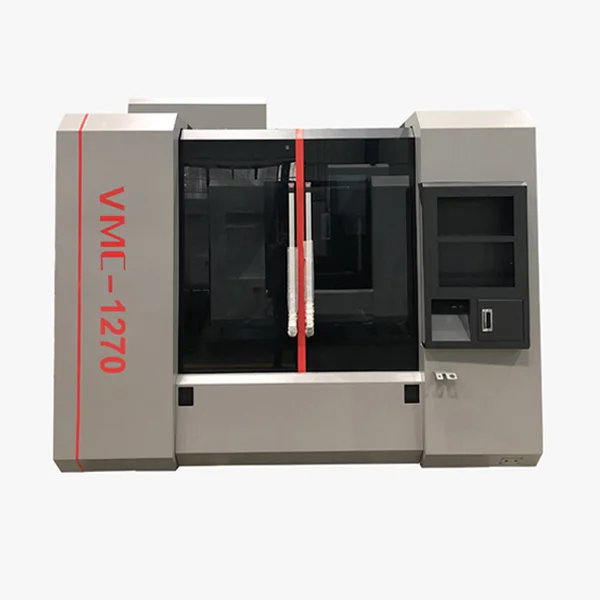

VMC1270 VERTICAL MACHINING CENTER

Product Information

The VMC1270 Vertical Machining Center is a high-precision, powerful CNC machine designed to meet the needs of high-demand manufacturing environments. It provides an ideal solution for industries engaged in metalworking, aerospace, automobile manufacturing, and mold production, offering superior machining capabilities, accuracy, and efficiency. This product overview will cover two models: the 1270BL and LJ-L1270, highlighting their key features and specifications.

Product Feature:

• Worktable Size: Both models feature a spacious worktable measuring 1360mm by 700mm, accommodating large parts or multiple fixtures for batch processing, thereby enhancing productivity.

• Axis Travel:

  X-Axis: Maximum travel is 1200mm for both models, allowing for extensive lateral movement and broad part coverage.

  Y-Axis: Offers a travel of 700mm, providing substantial clearance and versatility for various machining tasks.

  Z-Axis: The 1270BL models feature a max travel of 700mm, while the LJ-L1270 model provides up to 600mm, accommodating a wide range of part heights.

• Spindle Specifications:

  1.The 1270BL model is equipped with a BT40 spindle, featuring a diameter of Φ150mm and a speed of 8000 RPM.

  2.The LJ-L1270 model comes with a more robust BT50 spindle, with a diameter of Φ155mm, also operating at 8000 RPM.

• Precision and Stability:

  1.Both machines use high-grade ball screws for the X, Y, and Z axes (4012 specifications for the 1270BL and 5010 for the LJ-L1270), ensuring precise movement and superior machining accuracy.

  2.The 1270BL utilizes RGH45HA linear guides/sliders for all axes, whereas the LJ-L1270 opts for a combination of KUVE55 for the X-axis and KUVE45 for the Y-axis, with a rectangular roller guide for the Z-axis, offering enhanced stability and rigidity.

• Operational Speed:

  Rapid traverse rates are 24000 mm/min for both X and Y axes on both models, with the Z-axis also achieving 24000 mm/min on the 1270BL, and 18000 mm/min on the LJ-L1270, facilitating quick positioning and reduced cycle times.

• Worktable Configuration:

  T-Slots are designed for versatility, with the 1270BL featuring 5 slots at 18mm width and a 120mm pitch, and the LJ-L1270 offering a slightly wider pitch at 122mm.

• Distance Metrics:

  Spindle nose to worktable range and the distance from spindle center to column are optimized for both models, ensuring easy access to the workpiece and ample room for large part machining.

• Column and base casting integrated molding. It has high rigidity, high precision and stable structure.

• X, Y axis linear ball guide rail, strong bearing capacity, stable operation, guide rail side friction resistance is small, the machine does not crawl at low speed feed.

• Several types of spindles and spindle noses can be selected.

• Multiple brands and models of CNC systems are available.

• It can be customized according to customers’ requirements.

• The machine is designed and assembled by professional engineers and workers.

Product Parameter

The VMC1270 series showcases advanced technical specifications and capabilities designed to cater to sophisticated machining requirements. Whether opting for the high-speed precision of the 1270BL or the enhanced rigidity and power of the LJ-L1270, users can expect a machine that combines reliability, efficiency, and precision, making the VMC1270 Vertical Machining Center a valuable asset in any manufacturing or engineering facility.

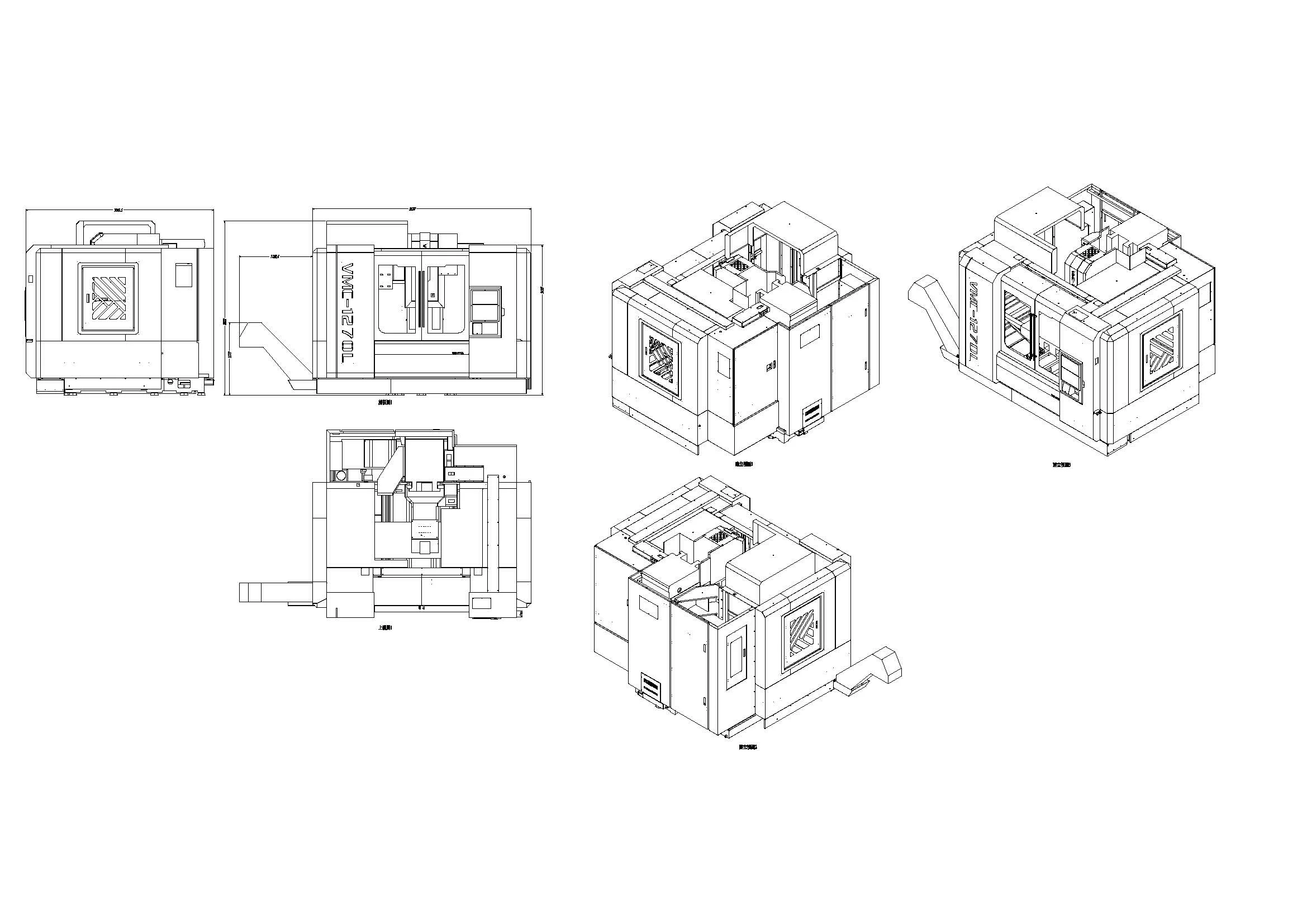

Overall Dimension Drawing
