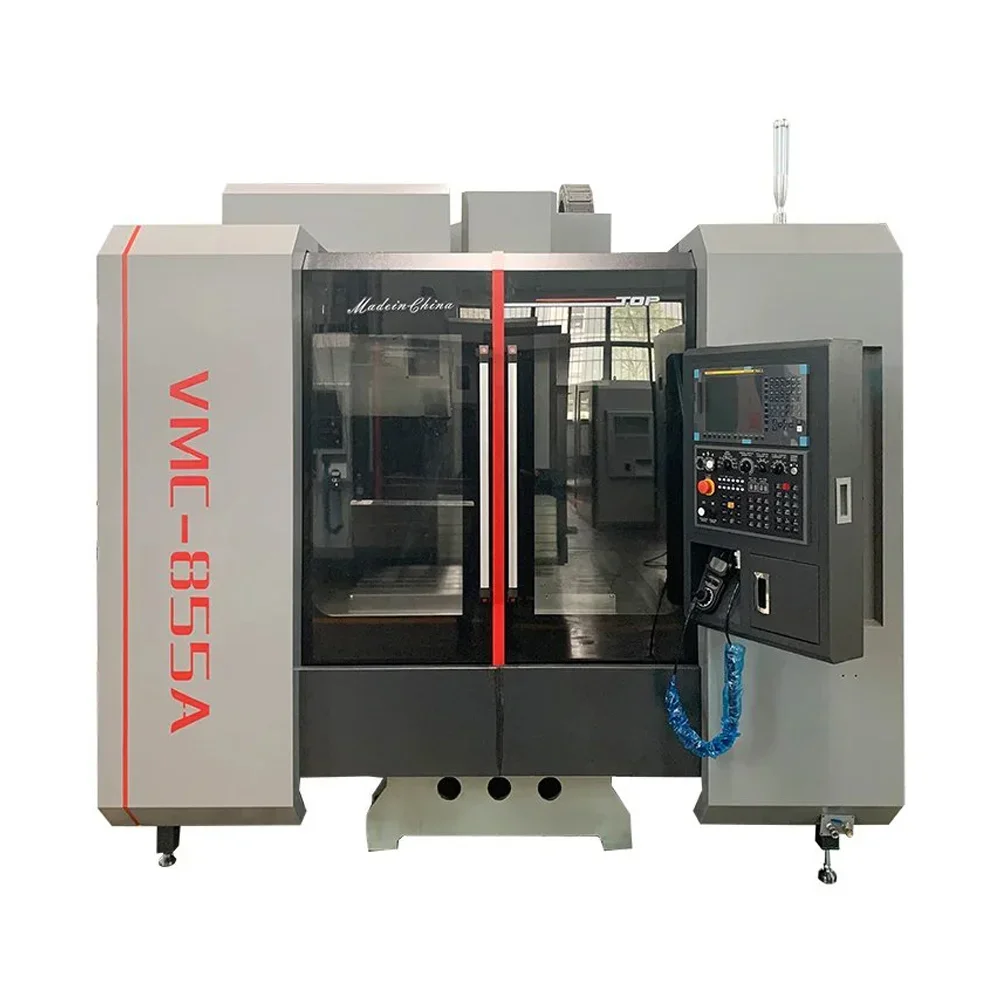

VMC855 VERTICAL MACHINING CENTER

Product Information

The VMC855 Vertical Machining Center emerges as a sophisticated tool in the realm of CNC machining, tailored for a plethora of industries such as precision engineering, mold manufacturing, and more. This machine encapsulates efficiency, flexibility, and reliability, making it a prime choice for businesses looking to elevate their machining capabilities to new heights.

Product Feature:

▶ 1.X, Y, Z three- axis roller linear guides to ensure the machining rigidity and running accuracy of the machine .

▶ 2.Taiwan made high- speed, high- precision spindle.

▶ 3.Taiwan famous brand arm type tool magazine with a capacity of 24 tools.

▶ 4.The modular structure design, best machine rigidity.

▶ 5.The color of machine cover can customized.

▶ 6.High rigidity HT300 machine frame material.

▶ 7.Widely cnc system is optional according to customers need.

▶ 8.Worktable Dimensions – Featuring a worktable size of 1000mm by 550mm, the VMC855 provides sufficient space for accommodating various sizes of workpieces, facilitating a seamless and efficient machining process.

▶ 9.Extended Axis Travel – With maximum travel distances of 800mm on the X-axis, 550mm on the Y-axis, and 550mm on the Z-axis, the VMC855 offers great versatility and the ability to handle a wide array of machining tasks with precision.

▶ 10.High-Speed Spindle – The heart of the VMC855 is its BT40 spindle with a Φ150mm diameter, boasting a maximum speed of 8000 RPM. This feature ensures optimal machining speeds, capable of tackling both roughing and finishing operations with ease.

▶ 11.Precision and Stability – The machine employs a 4016 X.Y.Z axis ball screw and variable track widths (35mm on X and 45mm on Y/Z axes) enhancing its stability and precision during high-speed machining.

▶ 12.T-Slot Configuration – With 5 T-slots, each 18mm wide and spaced 90mm apart, the worktable allows for flexible and secure setup of workpieces, accommodating various operations and sizes with ease.

▶ 13.Optimal Design for Superior Performance – The VMC855 is designed for excellence, featuring a spindle nose to worktable range of 120-670mm and a distance from spindle center to column of 590mm, ensuring broad compatibility with different types of workpieces.

▶ 14.Advanced Movement and Control – Equipped with high-speed linear specifications (RGH35HA for X-axis and RGW45HC for both Y and Z-axes) and direct XYZ axis motor connectivity, the VMC855 achieves outstanding precision and smooth motion at maximum moving speeds of 48m/min.

▶ 15.Powerful Motors and Drive System – With a recommended 7.5KW spindle motor power for optimal cutting capability, alongside robust X.Y.Z axis motors rated at 12/12/20Nm (with brake for Z-axis), this machine delivers both strength and finesse, suitable for demanding applications.

The VMC855 Vertical Machining Center stands as an emblem of technological advancement in CNC machining. It offers a perfect amalgamation of speed, accuracy, and flexibility, enabling manufacturers to achieve superior machining performance and ultimately, a higher level of productivity and product quality.

Product Parameter

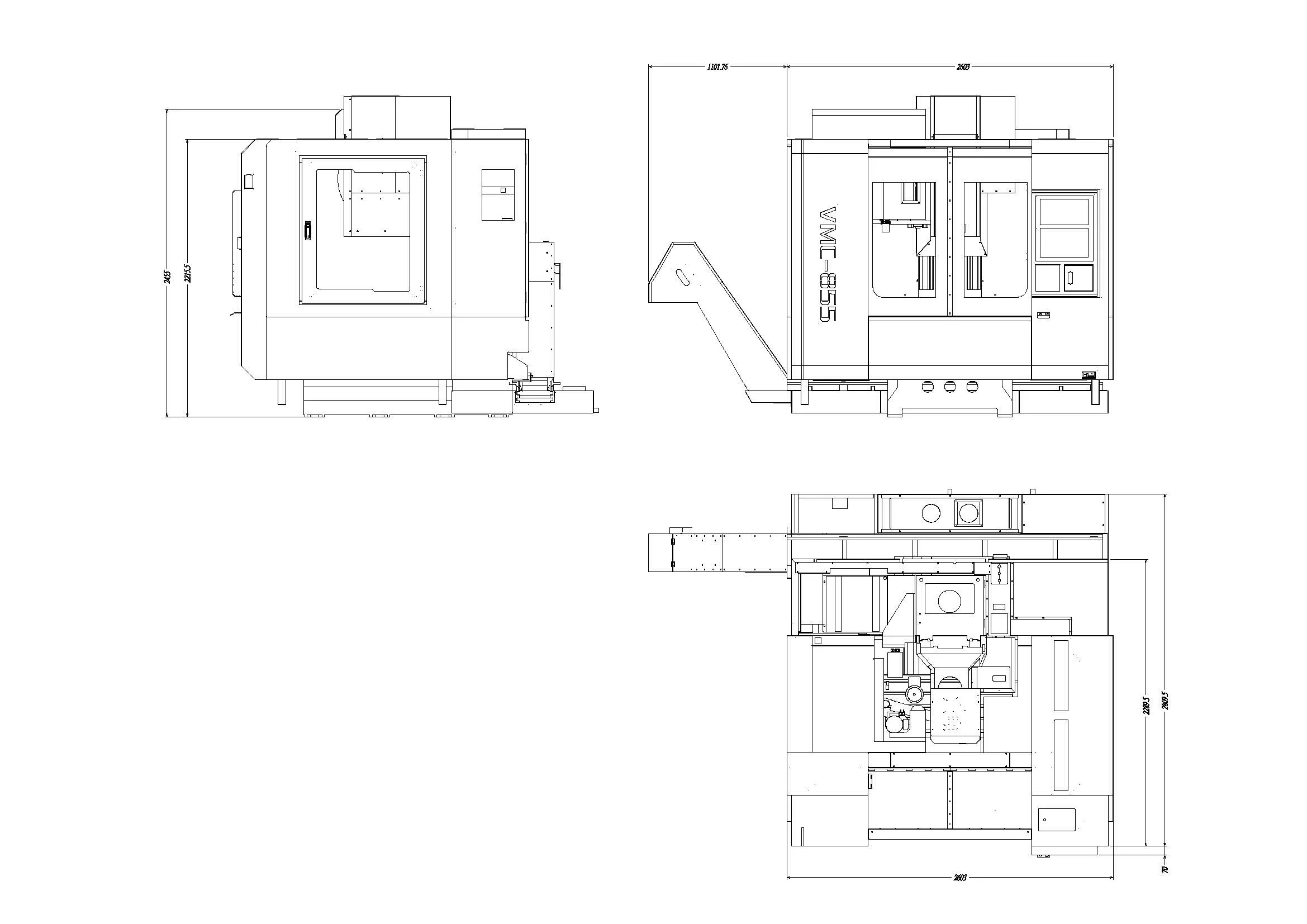

Overall Dimension Drawing

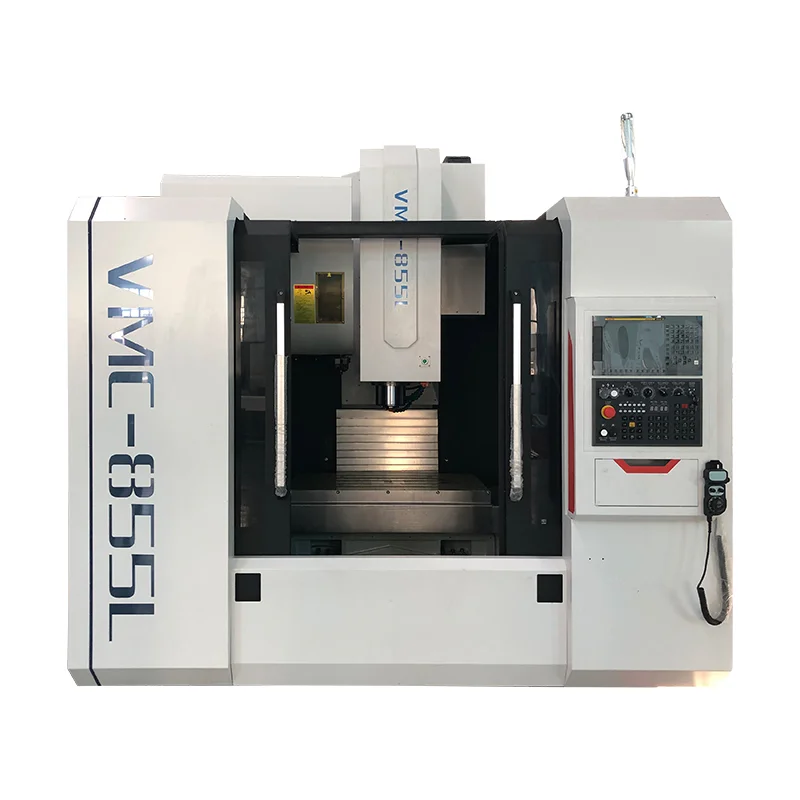

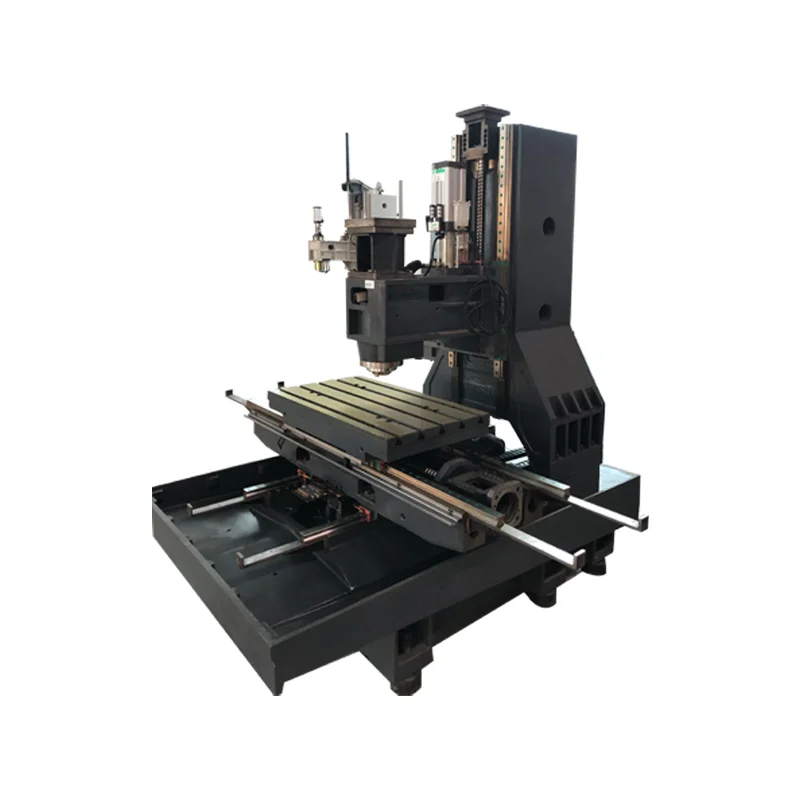

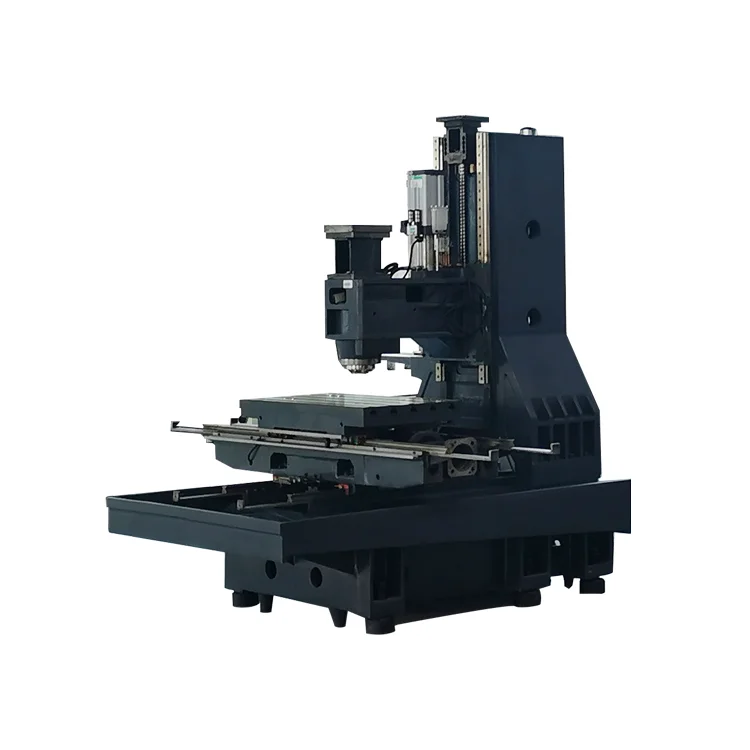

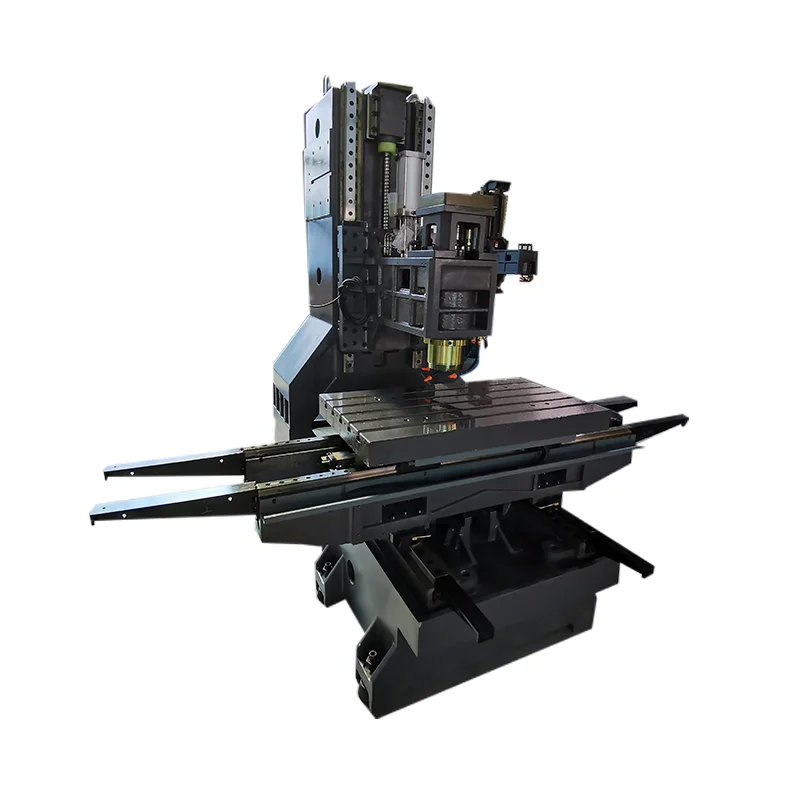

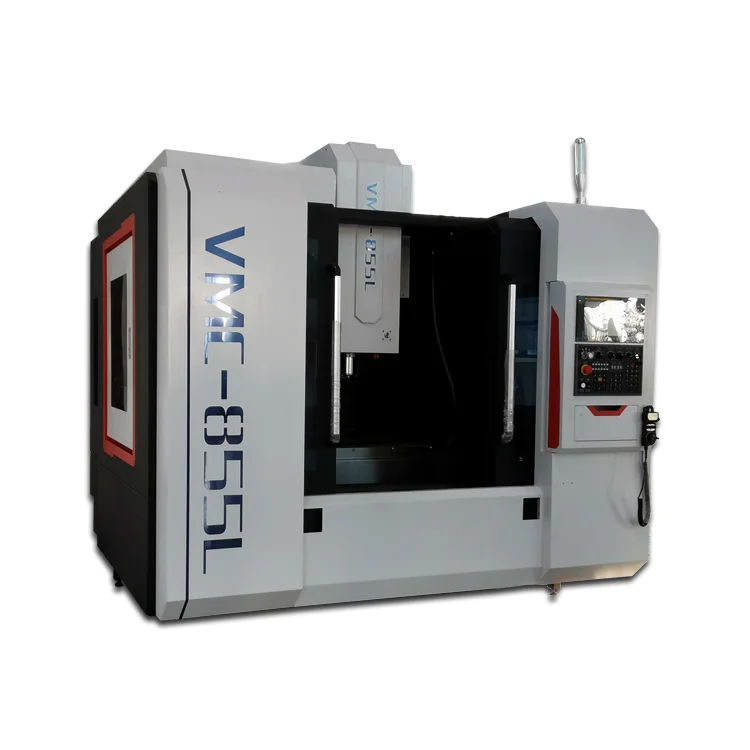

PRODUCT SHOW
