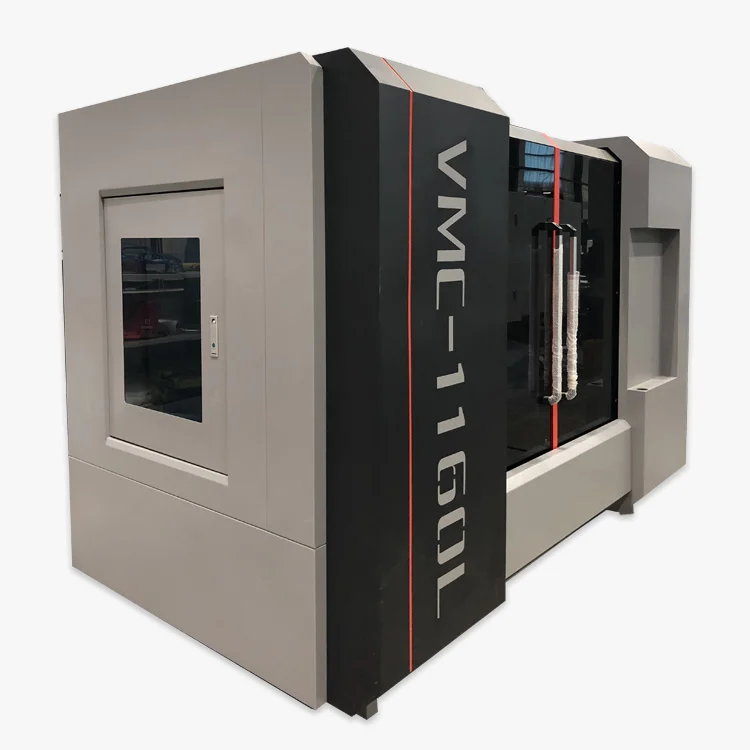

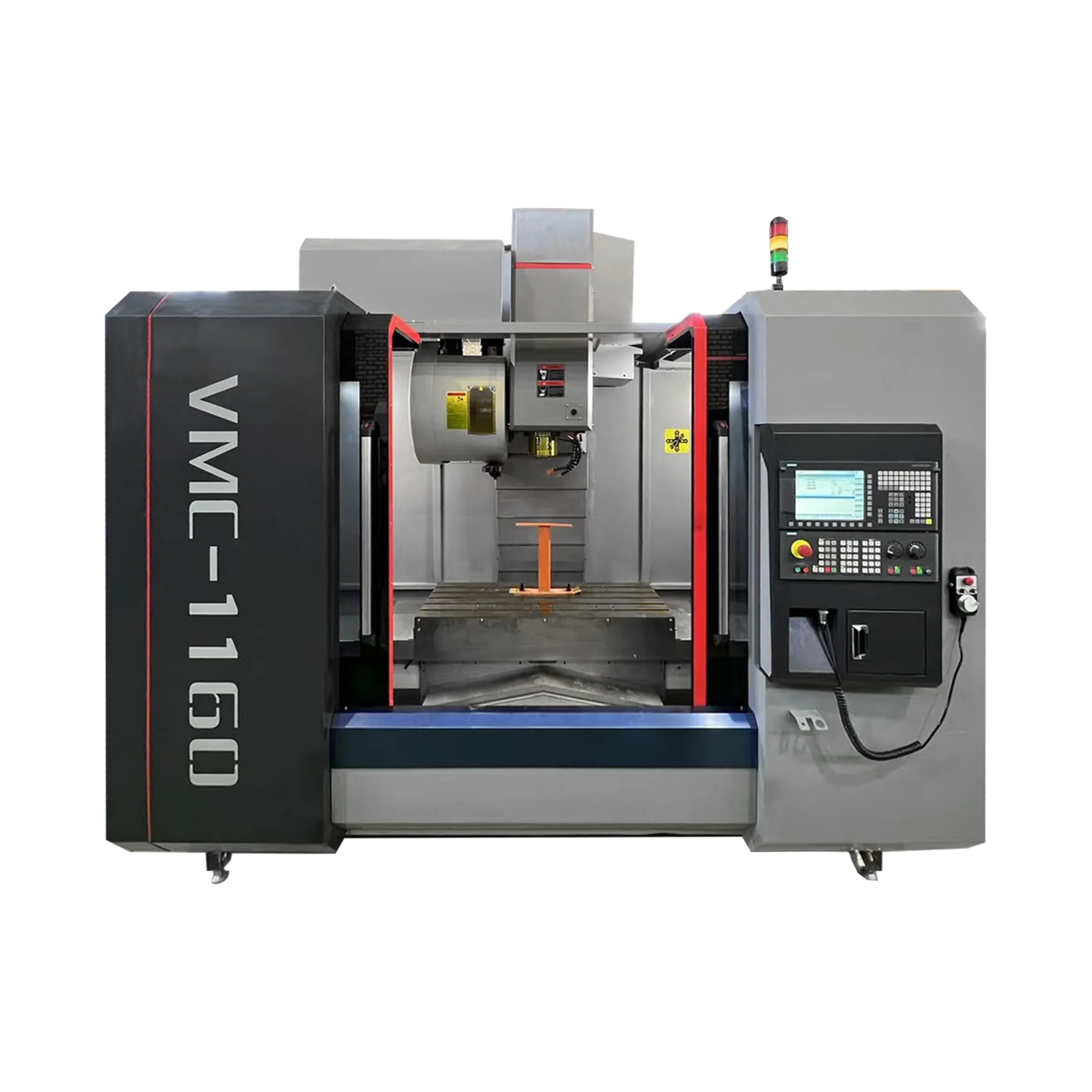

VMC1160 VERTICAL MACHINING CENTER

Product Information

The VMC1160 Vertical Machining Center is a cutting-edge solution tailored for precision engineering and manufacturing across various industries, including but not limited to, mold making, automotive, and aerospace sectors. This CNC machine combines robust construction, advanced technology, and intuitive design to deliver exceptional performance and versatility for complex machining tasks.

Product Feature:

▶ 1.CNC milling machine frame uses HT300 material, which has high rigidity and sufficient strength.

▶ 2.Equipped with high- speed and high- precision belt or direct spindle.

▶ 3.The machine adopts imported brand guideways and ballscrews with reliable quality.

▶ 4.CNC systems can be changed to domestic or foreign brands.

▶ 5.The outside cover of machine can be customized.

▶ 6.Worktable Size (L×W): It comes equipped with a spacious worktable of 1200mm by 600mm, ensuring ample room for processing larger parts or accommodating multiple setups for increased productivity.

▶ 7.Maximum Axis Travel: The VMC1160 excels in offering extensive travel distances with 1100mm along the X-axis, 600mm along the Y-axis, and 600mm on the Z-axis. Such capability facilitates the machining of large components or intricate parts with precision.

▶ 8.Spindle Design: At its core, the VMC1160 features a robust BT40 spindle with a Φ150mm diameter, capable of reaching speeds up to 8000 RPM. This balance of power and speed is ideal for a wide range of machining operations from heavy duty cutting to fine finishing.

▶ 9.Positional Accuracy and Stability: To ensure the highest levels of precision and stability during operation, the machine includes a 4012 X.Y.Z axis ball screw and expanded track widths of 45mm for all axes. The strategic arrangement enhances movement accuracy and reduces vibrations.

▶ 10.Enhanced Workpiece Compatibility: The configuration of 5 T-slots, each 18mm in size and spaced 100mm apart on the worktable, allows for versatile and secure mounting of workpieces, accommodating diverse manufacturing needs.

▶ 11.Optimal Spindle-to-Table and Spindle-to-Column Distance: With a spindle nose to worktable range of 120-720mm and a distance from spindle center to column of 650mm, the VMC1160 ensures sufficient clearance and reach for processing a wide range of part sizes without compromising on performance.

▶ 12.Advanced Ball Screw and Track Design: Incorporating a 40mm screw diameter with a 16mm pitch across all axes, and bolstered by a consistent 45mm track width, the VMC1160 is engineered for smooth, accurate, and efficient movements crucial for achieving superior machining results.

The VMC1160 Vertical Machining Center embodies technological advancement in CNC machining, offering unparalleled precision, flexibility, and efficiency suitable for high-demand manufacturing environments. With its superior features and construction, it stands as an invaluable asset for businesses aiming to push the boundaries of what’s possible in machining.

Product Parameter

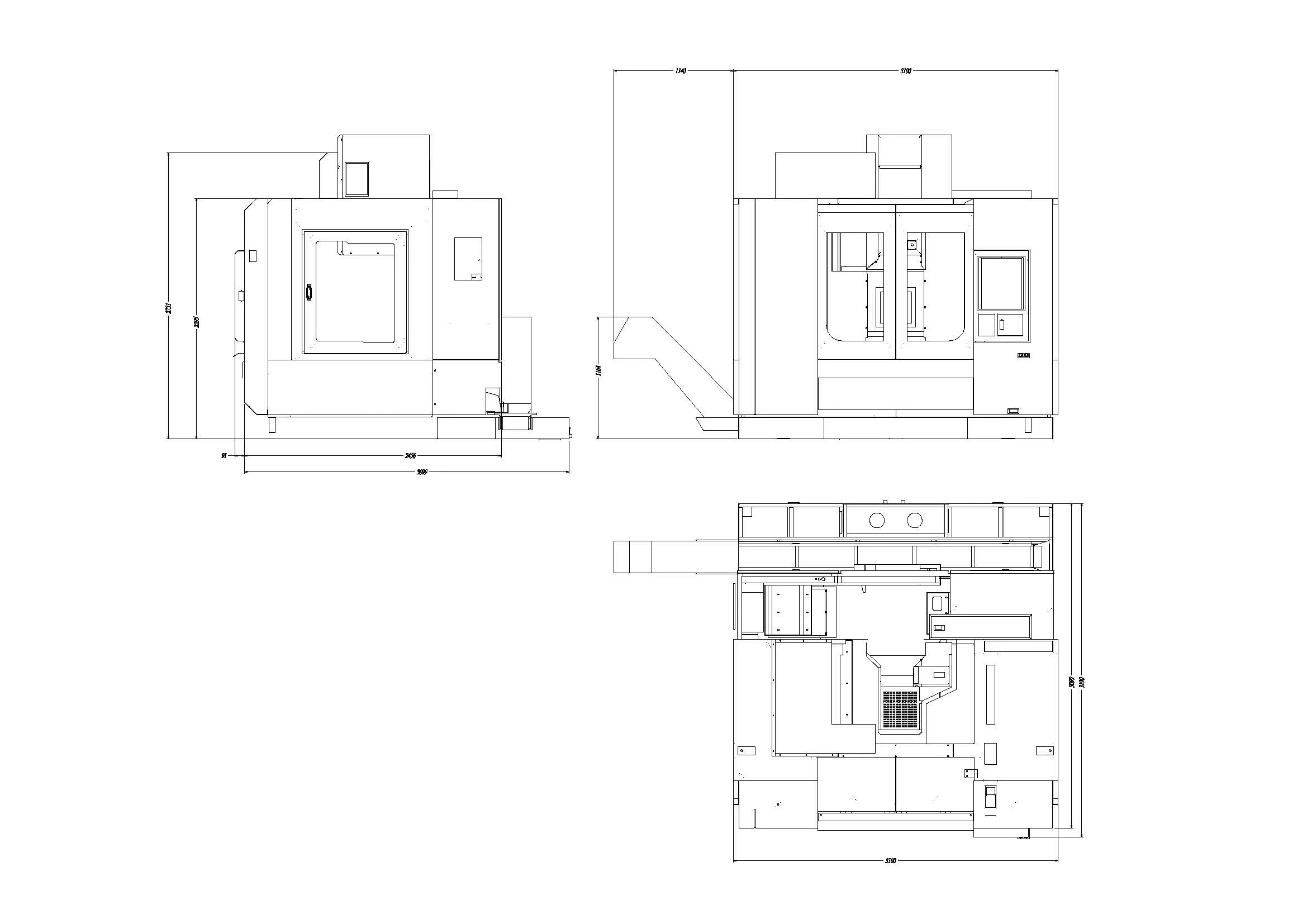

Overall Dimension Drawing

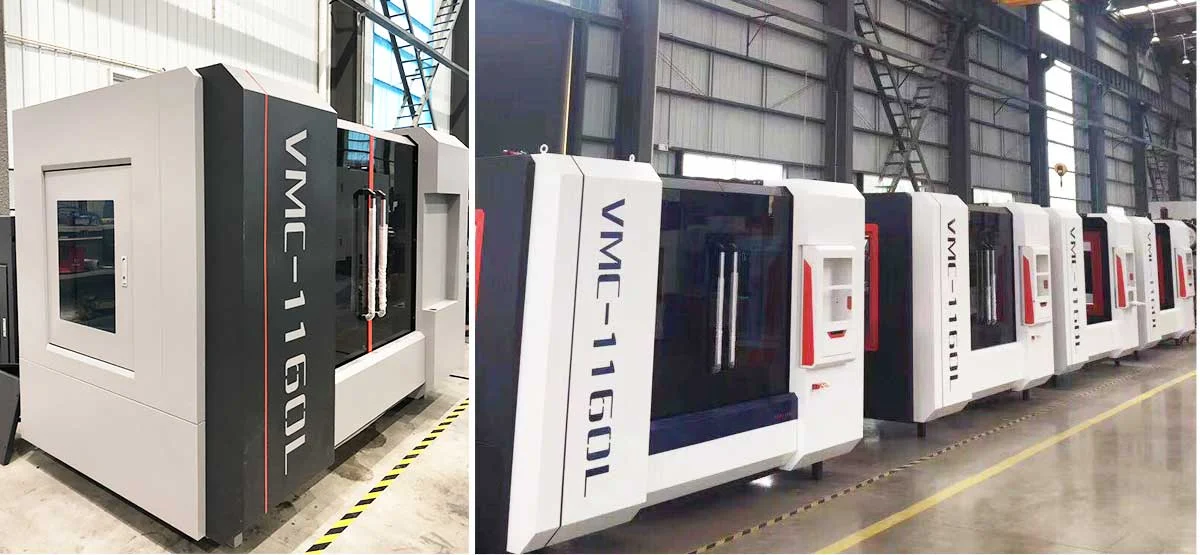

Product Show
